Home› Brake > Drums and Rotors› Centric 320.65053F Disc Brake Rotor - Front
Centric 320.65053F Disc Brake Rotor - FrontOE Quality 60-Day Returns
Centric 320.65053F Disc Brake Rotor - Front - view 1
Centric 320.65053F Disc Brake Rotor - Front - view 2
Centric 320.65053F Disc Brake Rotor - Front - view 3
Centric 320.65053F Disc Brake Rotor - Front - view 4
Centric 320.65053F Disc Brake Rotor - Front - view 5
Part #: 320.65053F

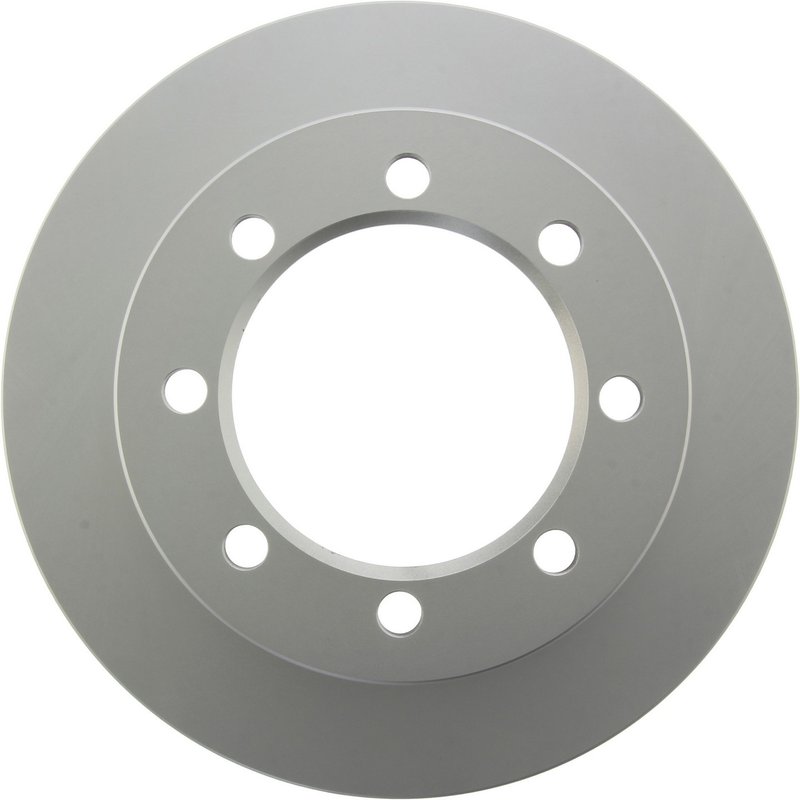

Centric 320.65053F Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
⚙️ 9 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$56.58Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
🚗Fitment: Ford, F-250, F-250 HD, and F-350
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.65053F Disc Brake Rotor - Front
BrandCentric
Part Number320.65053F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Discard Thickness1.122
Discard Thickness28.500
Nominal Thickness1.181
Nominal Thickness30.000
Disc FinishFully coated
Hat FinishCoated
Overall Height3.110
Overall Height79.000
Outside Diameter12.953
Outside Diameter329.000
Mounting Bolt Hole Quantity8
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter130.300
Center Hole Diameter5.130
Mounting Bolt Hole Circle Diameter165.100
Mounting Bolt Hole Circle Diameter6.500
Mounting Bolt Hole Diameter0.642
Mounting Bolt Hole Diameter16.300
Disc Mounting [cntrc]Behind the hub
Misc Holes [cntrc]0
Vane Style [cntrc]Straight
Weight [cntrc] kgs10.000
Weight [cntrc] lbs22.000

This part fits 9 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
1999FordF-2504WDFront8 Lug Disc Brake Caliper compatible with Brake Drum.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1998FordF-2504WDFront8 Lug Disc Brake Caliper compatible with Brake Drum.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1997FordF-2504WDFront8 Lug Disc Brake Caliper compatible with Brake Drum.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1997FordF-250 HD4WDFront8 Lug Disc Brake Caliper compatible with Brake Drum.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1997FordF-3504WDFrontDisc Only; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1996FordF-2504WDFrontDisc Only; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1996FordF-3504WDFrontDisc Only; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1995FordF-2504WDFrontDisc Only; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1995FordF-3504WDFrontDisc Only; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
