CentricPart #: 320.65056F

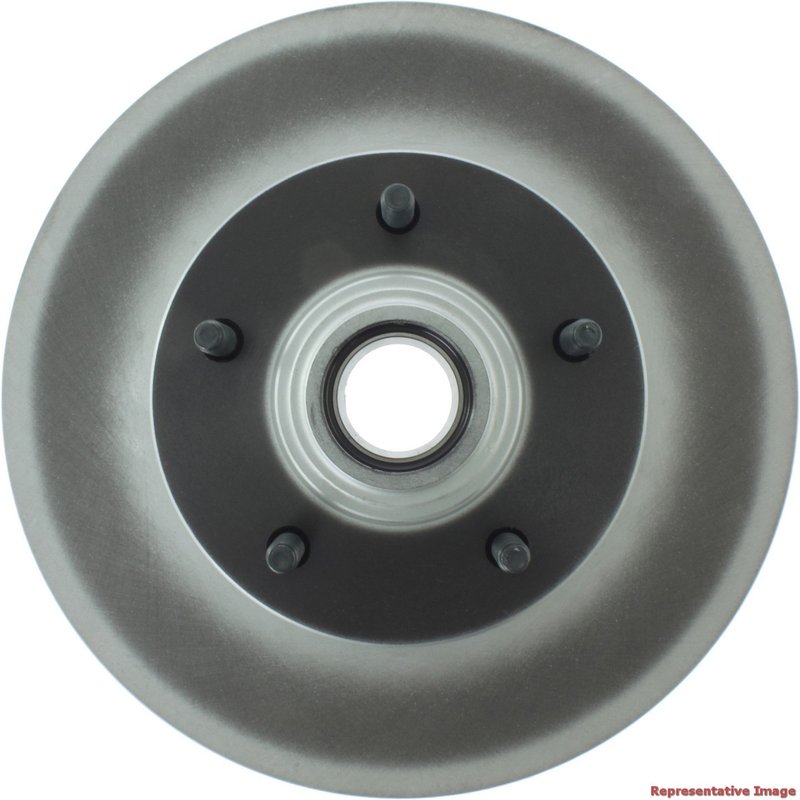

Centric 320.65056F Disc Brake Rotor - Front
⚙️ 4 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$87.28Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
🚗Fitment: Ford, F-150
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.65056F Disc Brake Rotor - Front
| Brand | Centric |
| Part Number | 320.65056F |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front |
| Discard Thickness | 0.972 |
| Discard Thickness | 24.700 |
| Nominal Thickness | 1.012 |
| Nominal Thickness | 25.700 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 12.000 |
| Overall Height | 104.000 |
| Overall Height | 4.094 |
| Outside Diameter | 12.126 |
| Outside Diameter | 308.000 |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.750 |
| Bearings Included | No |
| Center Hole Diameter | 3.417 |
| Center Hole Diameter | 86.800 |
| Mounting Bolt Hole Circle Diameter | 135.000 |
| Mounting Bolt Hole Circle Diameter | 5.315 |
| Stud/Lug Hole Quantity | 5 |
| Disc Mounting [cntrc] | Hub & rotor |
| Inner Bearing # [cntrc] | 410.91018 |
| Inner Seal # [cntrc] | 417.65000 |
| Misc Holes [cntrc] | 0 |
| Outer Bearing # [cntrc] | 410.91012 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 12.730 |
| Weight [cntrc] lbs | 28.000 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 1999 | Ford | F-150 | XL | RWD | Front | To 11/99; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 1999 | Ford | F-150 | Base | RWD | Front | To 11/99; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 1998 | Ford | F-150 | RWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating | |
| 1997 | Ford | F-150 | RWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
