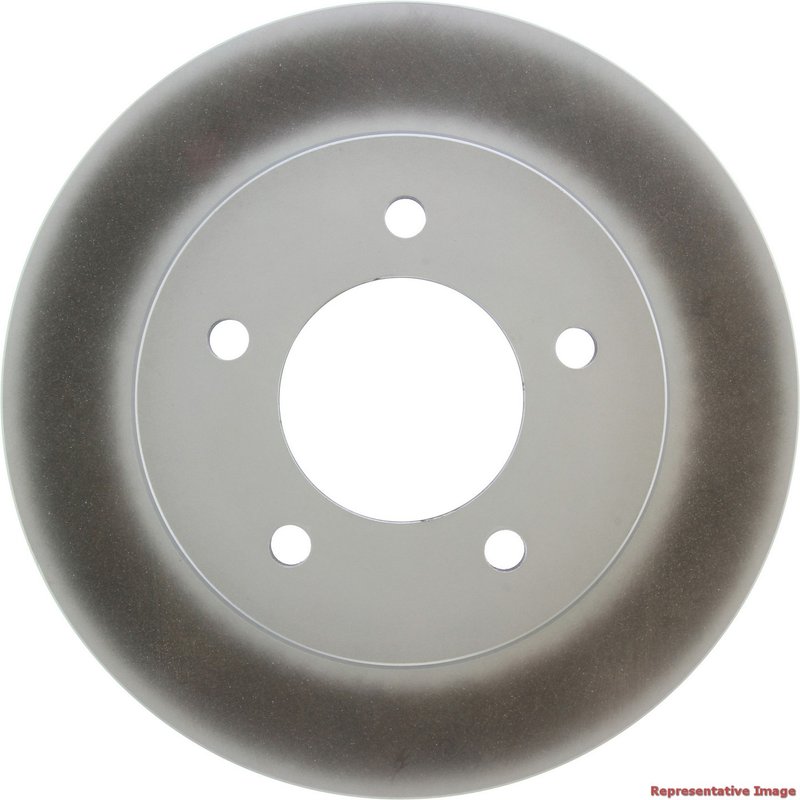

Centric 320.65057F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Ford F-150

Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65057F, is built for front axle applications on select Ford F-150 models and the 2004 Ford F-150 Heritage. It is engineered to match OE performance while adding full-surface corrosion protection for a cleaner appearance and longer service life.

Key Features

• Fully coated disc finish with Centric RS200 protection on non-mating surfaces
• Vented rotor design with straight vanes for front brake use
• Smooth friction surface for consistent pad contact
• Application-specific metallurgy matched to OEM-style rotor requirements
• 5-lug fitment with a 135 mm bolt circle and 90 mm center hole diameter
• Outside diameter: 308 mm (12.126 in); nominal thickness: 26.000 mm
• Discard thickness: 24.500 mm; overall height: 52.000 mm

Product Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is designed around vehicle-specific coating patterns and metallurgy so the rotor matches the brake pad friction type and the original equipment profile. For Ford F-150 front brake service, this rotor provides a direct replacement format with coated hat and fully coated non-mating surfaces to help resist rust and corrosion. Part number 320.65057F is a practical choice for drivers looking to restore braking performance while maintaining a cleaner rotor appearance over time. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Rotor Helps Address

• Front brake pulsation caused by worn or uneven rotor surfaces
• Rust buildup on exposed rotor areas
• Reduced braking consistency from rotor wear
• Noise or vibration related to rotor condition
• Replacement needs for Ford F-150 front brake service

Installation Notes and Tips

Fits 1997-1998 Ford F-150, front; fits 1999 Ford F-150, front; fits 2000 Ford F-150, front; fits 2001-2003 Ford F-150, front; fits 2004 Ford F-150 Heritage, front. Verify rotor dimensions, hub fit, and brake pad condition before installation. Clean the mounting surfaces thoroughly and confirm the rotor seats flat on the hub for proper brake operation. Part number 320.65057F should be matched to the listed front applications only.

Quality Assurance

Centric designs GCX rotors to align with OE performance targets and uses metallurgical formulations selected to match the vehicle’s original rotor profile. The RS200 coating on non-mating surfaces adds elemental protection against rust and corrosion, supporting long-term appearance and durability.
