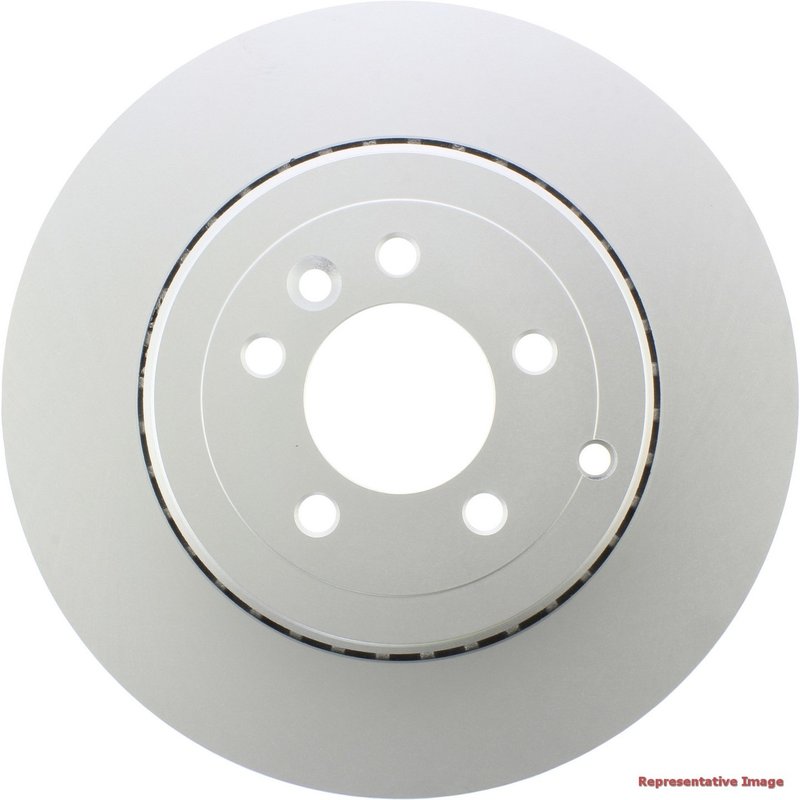

Centric 320.65080F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65080F, is built for front brake service on select Ford F-150 and Lincoln Blackwood applications. It is a fully coated, vented rotor with a smooth surface and ABS tone ring included, giving you an OE-style replacement focused on corrosion resistance and consistent braking performance.

For drivers searching for a front brake rotor for 2000-2004 Ford F-150 Heritage, 2000-2003 Ford F-150, or 2002 Lincoln Blackwood, this Centric GCX rotor is engineered around vehicle-specific metallurgy and coating patterns to match the brake pad friction type.

Key Features

• Part number 320.65080F
• Fully coated disc finish with coated hat for rust and corrosion protection
• Vented rotor design with smooth surface type
• ABS tone ring included
• Hub-and-rotor mounting style
• Application-specific metallurgy matched to OEM-style requirements
• Outside diameter: 308.0 mm (12.126 in)
• Nominal thickness: 26.0 mm (1.024 in)
• Discard thickness: 24.7 mm (0.972 in)
• 5-lug pattern with 135 mm bolt circle diameter

Product Details

Centric’s GCX Elemental Protection line uses advanced RS200 coating on non-mating surfaces to help resist rust on the hat and outer surfaces while preserving the braking surfaces where friction is needed. The GCX coating pattern is application specific, and the rotor metallurgy is selected to align with the OEM profile for the vehicle. This helps maintain proper fit, braking feel, and long-term appearance on front brake service for Ford F-150 and Lincoln Blackwood models.

This part number 320.65080F is a front disc brake rotor for 2000 Ford F-150, 2001 Ford F-150, 2002 Ford F-150, 2003 Ford F-150, 2004 Ford F-150 Heritage, and 2002 Lincoln Blackwood applications listed in the fitment data.

What This Rotor Helps Address

• Front brake pulsation caused by worn or out-of-spec rotors
• Rust buildup on exposed rotor surfaces
• Reduced braking consistency from rotor wear
• Noise or vibration related to rotor condition
• Replacement needs for a vented front rotor with ABS tone ring provision

Installation Notes and Tips

Verify rotor dimensions, hub fitment, lug pattern, and ABS tone ring requirements before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal pulsation. Always inspect pads, calipers, and wheel bearings during rotor replacement, and follow the vehicle manufacturer’s service procedure for torque and bedding.

Fits 2004 Ford F-150 Heritage, front; 2003 Ford F-150, front; 2002 Ford F-150, front; 2002 Lincoln Blackwood, front; 2001 Ford F-150, front; 2000 Ford F-150, front.

Quality Assurance

Centric GCX rotors are engineered to match OE performance targets while adding corrosion protection through coated non-mating surfaces. The brand’s application-specific coating pattern and metallurgy selection are designed to support proper fit and consistent service life across the listed Ford F-150 and Lincoln Blackwood front brake applications.
