Home› Brake > Drums and Rotors› Centric 320.65085F Disc Brake Rotor - Rear
Centric 320.65085F Disc Brake Rotor - RearOE Quality 60-Day Returns

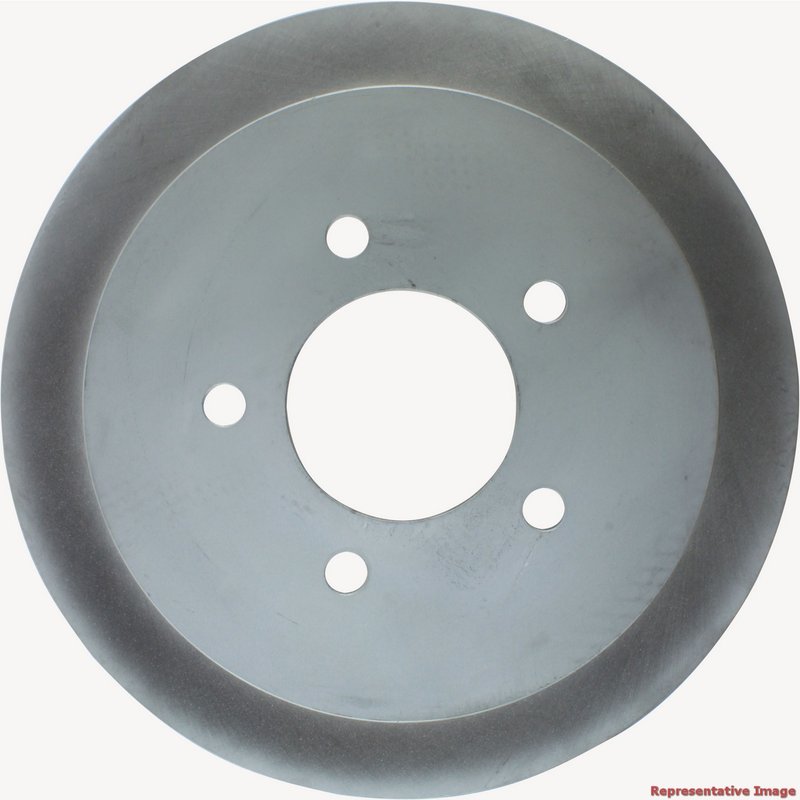

Centric 320.65085F Disc Brake Rotor - Rear - view 1
Centric 320.65085F Disc Brake Rotor - Rear - view 2
Centric 320.65085F Disc Brake Rotor - Rear - view 3
Centric 320.65085F Disc Brake Rotor - Rear - view 4
Centric 320.65085F Disc Brake Rotor - Rear - view 5
Part #: 320.65085F

Centric 320.65085F Disc Brake Rotor - Rear

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
⚙️ 18 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$59.62Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
🚗Fitment: Ford and Lincoln, Blackwood, Expedition, F-150, F-150 Heritage, and Navigator
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.65085F Disc Brake Rotor - Rear
BrandCentric
Part Number320.65085F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
Discard Thickness0.472
Discard Thickness12.000
Nominal Thickness0.559
Nominal Thickness14.200
Disc FinishFully coated
Hat FinishCoated
Overall Height2.217
Overall Height56.300
Outside Diameter13.150
Outside Diameter334.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorSolid
Nominal Drum Diameter228.400
Nominal Drum Diameter8.992
Bearings IncludedNo
Center Hole Diameter3.445
Center Hole Diameter87.500
Mounting Bolt Hole Circle Diameter135.000
Mounting Bolt Hole Circle Diameter5.315
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.630
Stud/Lug Hole Diameter16.000
Disc Mounting [cntrc]Floating / dih
Max PB Drum Dia [cntrc] in9.055
Max PB Drum Dia [cntrc] mm230.000
Misc Holes [cntrc]0
Weight [cntrc] kgs8.640
Weight [cntrc] lbs19.000

This part fits 18 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2004FordF-150 HeritageRWDRear5 Lug; To 11/04; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2004FordF-150 Heritage4WDRear5 Lug; To 11/04; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003FordF-150RWDRear5 Lug; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2003FordF-1504WDRear5 Lug; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2002FordExpeditionRearTo 3/18/02; Solid Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2002FordF-150RWDRear5 Lug; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2002FordF-1504WDRear5 Lug; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2002LincolnBlackwoodRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2002LincolnNavigatorRearFits vehicles manufactured up to March 17, 2002.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2001FordExpeditionRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2001FordF-150RWDRear5 Lug; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2001FordF-1504WDRear5 Lug; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2001LincolnNavigatorRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2000FordExpeditionRearFr 12/99; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2000FordF-150RWDRear5 Lug; Fr 12/99; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2000FordF-1504WDRear5 Lug; Fr 12/99; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
2000LincolnNavigatorRearFr 11/29/99; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
1999FordExpeditionRearFr 12/99; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
