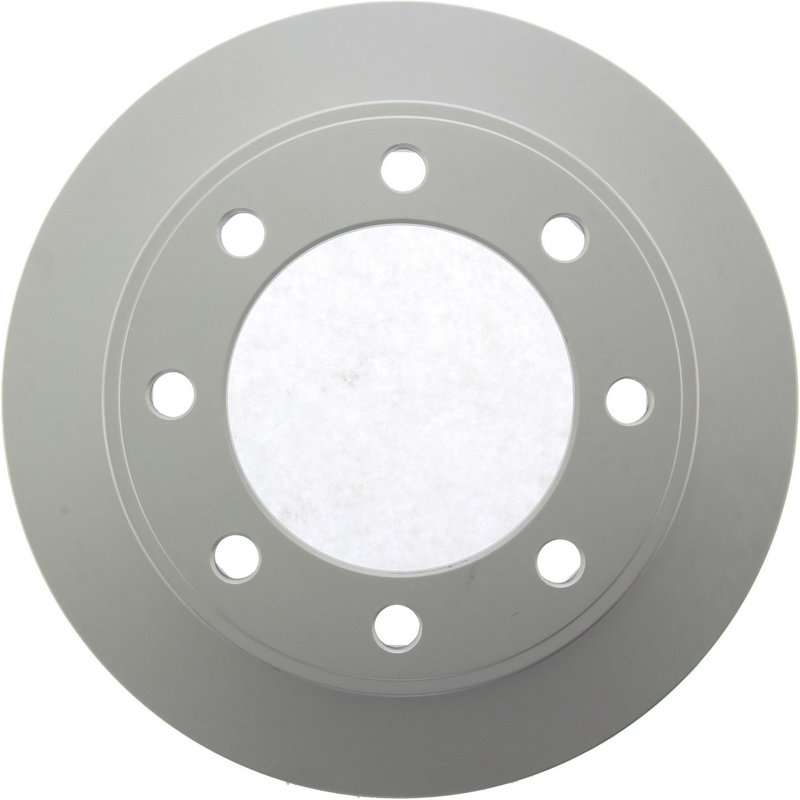

Centric 320.65086F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor 320.65086F offers reliable braking performance for Ford Excursion, F-250 Super Duty, and F-350 Super Duty models. Designed with a full coating, this vented rotor provides enhanced corrosion resistance and durability for heavy-duty applications.

• Full coating on disc and hat for corrosion protection
• Vented rotor design with pillar-style vanes for improved heat dissipation
• Floating disc mounting for better rotor alignment
• Nominal thickness of 1.496 inches (38.000 mm) and discard thickness of 1.417 inches (36.000 mm)
• Outside diameter of 13.031 inches (331.000 mm) suitable for heavy-duty Ford trucks
• Eight stud/lug holes with 0.638 inch (16.200 mm) diameter
• Coated hat finish to resist rust and wear
• Overall height of 3.917 inches (99.500 mm)
• Smooth surface finish for consistent braking contact

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This full coating helps prevent rust and corrosion, extending rotor life especially in harsh environments. The vented design with pillar-style vanes enhances cooling efficiency, which is critical for heavy-duty vehicles like the Ford F-250 Super Duty and F-350 Super Duty. This product line balances durability and performance for demanding braking conditions.

Technical Description and Specifications

This disc brake rotor features a vented design with pillar-style vanes that promote effective heat dissipation during braking, reducing the risk of brake fade. The rotor has a nominal thickness of 1.496 inches (38.000 mm) and a discard thickness of 1.417 inches (36.000 mm), ensuring it meets safety standards for replacement. The outside diameter measures 13.031 inches (331.000 mm), making it compatible with specific Ford heavy-duty truck models. The rotor’s hat is coated to resist corrosion, and the smooth disc surface ensures consistent pad contact. The floating disc mounting system allows for slight movement to maintain proper alignment and reduce stress on the braking system.

Compatible Vehicles and Common Applications

• Replacement rotor for Ford Excursion models
• Suitable for Ford F-250 Super Duty brake system upgrades or repairs
• Compatible with Ford F-350 Super Duty for heavy-duty braking needs
• Addresses issues such as rotor corrosion, brake noise, and uneven pad wear
• Helps resolve brake fade caused by overheating in demanding conditions

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 1.417 inches before installation. Clean the hub surface and mounting area to prevent misalignment. Use proper torque specifications for the eight lug studs with 0.638 inch diameter holes. Since this rotor does not include bearings or ABS tone rings, verify compatibility with your vehicle’s existing components. The floating disc mounting requires careful alignment to maintain optimal rotor performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating on the rotor and hat surfaces provides enhanced corrosion resistance, contributing to longer service life. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Always consult the manufacturer or authorized distributor for complete warranty information.
