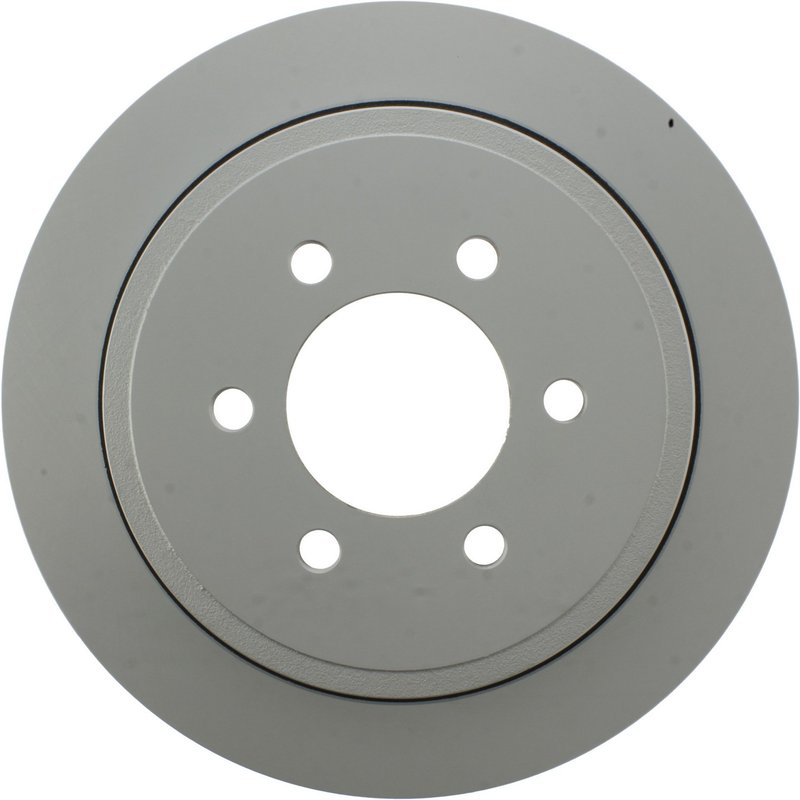

Centric 320.65095F Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating, part number 320.65095F, is built for rear brake service on select Ford Expedition and Lincoln Navigator models. It combines OE-style fitment with a fully coated finish to help resist rust on exposed surfaces while maintaining the braking surface needed for consistent pad contact.

For drivers searching for a rear brake rotor for 2002-2006 Ford Expedition or 2002-2006 Lincoln Navigator, this Centric GCX rotor is application-specific and matched to the vehicle’s OEM-style metallurgy and coating pattern.

Key Features

• Part number 320.65095F
• Rear disc brake rotor for select Ford Expedition and Lincoln Navigator applications
• Fully coated disc finish with coated hat for added corrosion protection on non-mating surfaces
• Vented rotor design with smooth surface type
• Application-specific metallurgy matched to OEM-style requirements
• 6-lug pattern with 135 mm bolt circle diameter
• Outside diameter: 342 mm (13.465 in)
• Nominal thickness: 22.000 mm (0.866 in)
• Discard thickness: 19.000 mm (0.748 in)

Product Details

Centric’s GCX and GCX FC rotor line is engineered to deliver OE-level braking performance while adding protection against rust and corrosion on exposed areas. The RS200 coating is applied to non-mating surfaces, helping the rotor maintain a cleaner appearance over time. Centric also uses application-specific coating patterns and metallurgy, including enhanced carbon and high carbon alloy formulations, to align the rotor with the vehicle’s original brake system profile. This part number 320.65095F is a rear vented rotor with a 90.200 mm center hole diameter, 51.800 mm overall height, and straight vane style.

What This Rotor Helps Address

• Rear brake rotor rust on exposed surfaces
• Brake pulsation caused by worn or below-spec rotors
• Reduced braking consistency from rotor wear
• Corrosion-related appearance issues on the hat and non-mating areas
• OE replacement needs for rear brake service on Ford Expedition and Lincoln Navigator

Installation Notes and Fitment

Fits 2003-2006 Ford Expedition, rear. Fits 2003-2006 Lincoln Navigator, rear. Fits 2002 Ford Expedition, rear, with note: Fr 3/19/02; vented disc. Fits 2002 Lincoln Navigator, rear, with note: Fr 3/18/02.

Before installation, verify rotor dimensions, hub fit, and brake pad condition. Clean the hub mounting surface and confirm the rotor seats fully without interference. This part number 320.65095F is intended for rear brake applications only on the listed vehicles.

Quality Assurance

Centric designs the GCX rotor line to match OE performance targets and vehicle-specific metallurgy requirements. The coated finish and application-specific construction are intended to support long-term corrosion resistance and consistent fitment on the listed Ford Expedition and Lincoln Navigator rear brake applications.
