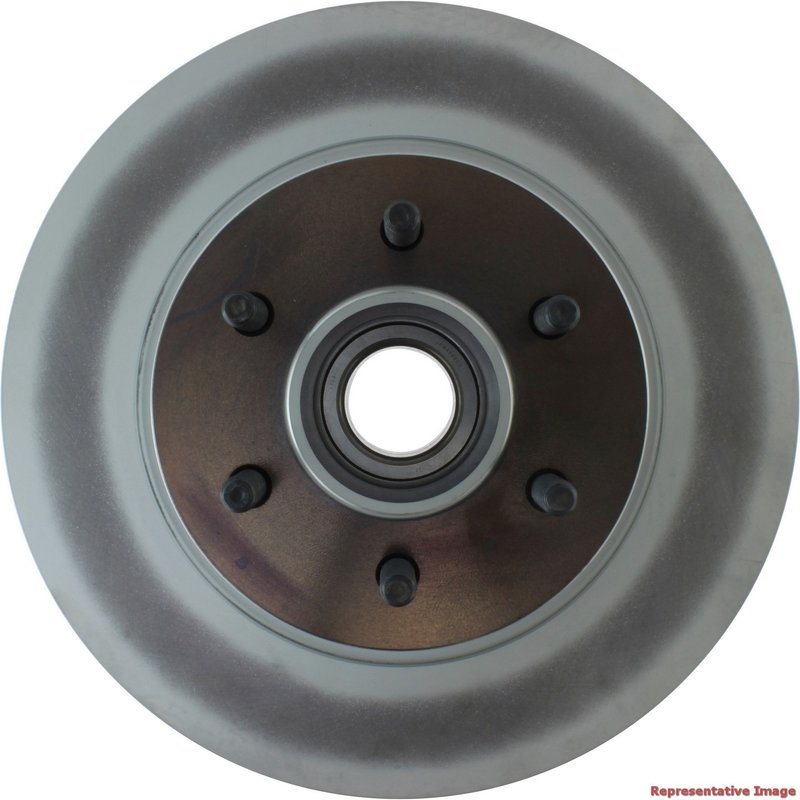

Centric 320.65098F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Ford F-150

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65098F, is a front vented rotor built for OE-style hub-and-rotor applications. It features a fully coated disc finish, coated hat, smooth surface, and an integrated ABS tone ring for direct-fit service on select Ford F-150 and Lincoln Mark LT models.

Key Features

• Part number 320.65098F for front brake service
• Fully coated disc finish and coated hat finish for added corrosion resistance
• Vented rotor design with straight vanes
• Smooth braking surface
• ABS tone ring included
• OE-style integral hub and rotor assembly fitment
• 6-lug mounting pattern with 135.000 mm bolt circle diameter
• Outside diameter: 330.000 mm; nominal thickness: 30.000 mm; discard thickness: 28.500 mm

Product Line Details

Centric GCX Elemental Protection Disc Brake Rotors are built with protective coatings on the disc and hat surfaces to help resist corrosion in exposed brake environments. This rotor is specified as a hub-and-rotor assembly style part, making it a direct replacement choice for vehicles that use an OE-style integral front rotor setup.

Detailed Description

Centric 320.65098F is a front disc brake rotor for 2004-2008 Ford F-150, 2006-2008 Lincoln Mark LT, and 2004 Ford F-150 Heritage applications listed with OE-style integral hub and rotor assembly requirements. The rotor measures 330.000 mm outside diameter, 92.200 mm overall height, 86.700 mm center hole diameter, and uses a 6-lug pattern with a 135.000 mm bolt circle. Its vented construction and straight vane design support front brake heat management, while the fully coated finish helps protect the rotor and hat surfaces from corrosion.

This part cross-references 124.65901 for the same application.

Common Issues This Rotor Can Address

• Front brake pulsation from worn or uneven rotor surfaces
• Corrosion on exposed rotor and hat surfaces
• Brake noise related to rotor surface wear
• Reduced braking consistency from rotor thickness loss
• Service replacement needs on OE-style hub-and-rotor front assemblies

Installation Notes and Tips

• Fits 2004-2008 Ford F-150, front.
• Fits 2006-2008 Lincoln Mark LT, front.
• Fits 2004 Ford F-150 Heritage, front.
• For 2004-2008 Ford F-150 and 2006-2008 Lincoln Mark LT applications, the spindle nut should be replaced during service.
• Verify the vehicle uses the OE-style integral hub and rotor assembly before ordering.
• Confirm 6-lug, 135.000 mm bolt circle fitment and ABS tone ring requirements during brake inspection.

Quality Assurance

Centric manufactures the GCX Elemental Protection line with application-specific dimensions and protective coatings to support consistent fitment and corrosion resistance in front brake service.
