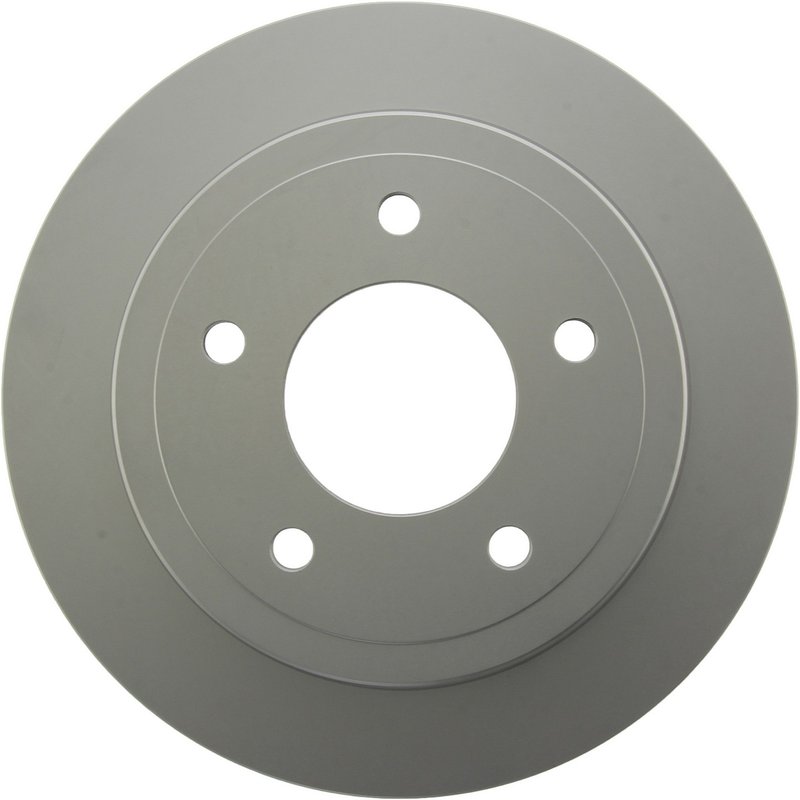

Centric 320.65106F Disc Brake Rotor - Rear
| Brand | Centric 320.65106F |
|---|---|
| Position | Rear |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 3.449 |
| Center Hole Diameter | 87.600 |
| Disc Finish | Fully Coated |
| Disc Mounting [cntrc] | Floating / DIH |
| Discard Thickness | 0.803 |
| Discard Thickness | 20.400 |
| Hat Finish | Coated |
| Max PB Drum Dia [cntrc] in | 8.157 |
| Max PB Drum Dia [cntrc] mm | 207.200 |
| Misc Holes [cntrc] | 0 |
| Mounting Bolt Hole Circle Diameter | 5.500 |
| Mounting Bolt Hole Circle Diameter | 139.700 |
| Nominal Drum Diameter | 8.106 |
| Nominal Drum Diameter | 205.900 |
| Nominal Thickness | 0.866 |
| Nominal Thickness | 22.000 |
| Outside Diameter | 13.031 |
| Outside Diameter | 331.000 |
| Overall Height | 2.976 |
| Overall Height | 75.600 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.602 |
| Stud/Lug Hole Diameter | 15.300 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 9.320 |
| Weight [cntrc] lbs | 20.500 |
| Product line | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| Fits | Ford · 6 vehicles |
OE-matched performance. Engineered to match original braking feel and response.
Fully coated finish. Helps resist rust and corrosion for longer-lasting good looks.
Vented design. Promotes airflow for more efficient heat management.
Centric GCX Rear Brake Rotor for Ford E-Series
The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65106F, is built for rear brake service on select Ford E-150, E-150 Club Wagon, and Econoline applications. It is a fully coated, vented rotor engineered to match OE performance while adding corrosion resistance on non-mating surfaces.
Key Features
- Fully coated disc finish with Centric RS200 protection on non-mating surfaces
- Vented rotor design with smooth surface type
- Application-specific metallurgy matched to OEM-style carbon content
- 5-lug pattern with 5.500 in. bolt circle diameter
- Outside diameter: 13.031 in. / 331.0 mm
- Nominal thickness: 0.866 in. / 22.0 mm; discard thickness: 0.803 in. / 20.4 mm
- Rear fitment for Ford E-150, Ford Econoline, and Ford E-150 Club Wagon
Product Line Details
Centric GCX Elemental Protection Disc Brake Rotors are part of Centric’s coated rotor line focused on OE-style braking performance and rust protection. The GCX FC full-coating design uses an application-specific coating pattern and rotor metallurgy selected to align with the vehicle’s original brake pad friction and OEM material profile. Part number 320.65106F is designed for rear brake replacement where corrosion resistance and consistent rotor dimensions matter.
Vehicle Fitment
- Fits 2004-2006 Ford E-150, rear.
- Fits 2006 Ford Econoline, rear.
- Fits 2004-2005 Ford E-150 Club Wagon, rear.
Common Reasons to Replace
- Rear rotor rust on exposed surfaces
- Brake pulsation from rotor wear or thickness loss
- Noise caused by uneven rotor surfaces
- Reduced braking consistency from heat-related wear
- Corrosion around the hat and non-friction areas
Installation Notes and Tips
Confirm rear axle and brake dimensions before installation. This rotor uses a straight vane design, floating/DIH mounting, and a 3.449 in. center hole diameter. Clean the hub face thoroughly, verify the 5-lug bolt circle, and inspect pads and caliper hardware for wear before completing the brake job. Part number 320.65106F should be matched to the listed Ford E-Series rear applications only.
Quality Assurance
Centric designs the GCX rotor line to meet OE-style performance targets while improving protection against rust and corrosion. The coated finish on non-mating surfaces helps preserve appearance and service life in everyday driving conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Ford | E-150 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2006 | Ford | Econoline | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2005 | Ford | E-150 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2005 | Ford | E-150 Club Wagon | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2004 | Ford | E-150 | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2004 | Ford | E-150 Club Wagon | Rear | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
