Home› Brake > Drums and Rotors› Centric 320.65108F Disc Brake Rotor - Rear
Centric 320.65108F Disc Brake Rotor - RearOE Quality 60-Day Returns

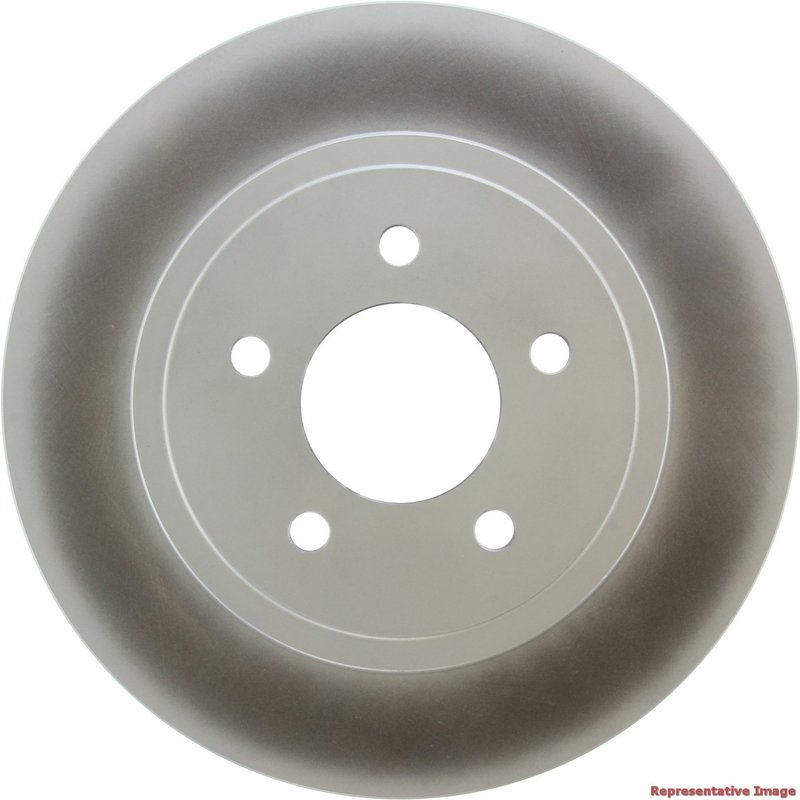

Centric 320.65108F Disc Brake Rotor - Rear - view 1
Centric 320.65108F Disc Brake Rotor - Rear - view 2
Centric 320.65108F Disc Brake Rotor - Rear - view 3
Centric 320.65108F Disc Brake Rotor - Rear - view 4
Centric 320.65108F Disc Brake Rotor - Rear - view 5
Part #: 320.65108F

Centric 320.65108F Disc Brake Rotor - Rear

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
⚙️ 14 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$44.25Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
🚗Fitment: Ford, Mazda, and Mercury, Escape, Mariner, and Tribute
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.65108F Disc Brake Rotor - Rear
BrandCentric
Part Number320.65108F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear
Discard Thickness0.433
Discard Thickness11.000
Nominal Thickness0.472
Nominal Thickness12.000
Disc FinishFully coated
Hat FinishCoated
Overall Height2.205
Overall Height56.000
Outside Diameter11.890
Outside Diameter302.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorSolid
Nominal Drum Diameter184.400
Nominal Drum Diameter7.260
Bearings IncludedNo
Center Hole Diameter2.835
Center Hole Diameter72.000
Mounting Bolt Hole Circle Diameter114.300
Mounting Bolt Hole Circle Diameter4.500
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.557
Stud/Lug Hole Diameter14.150
Disc Mounting [cntrc]Floating / dih
Max PB Drum Dia [cntrc] in7.323
Max PB Drum Dia [cntrc] mm186.000
Misc Holes [cntrc]0
Weight [cntrc] kgs5.680
Weight [cntrc] lbs12.500

This part fits 14 vehicles. Search below:

YearMakeModelSubmodelLitersCylindersPositionNotes
2010FordEscapeRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2009FordEscapeRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2009MercuryMarinerHybridRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008FordEscapeRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008MazdaTribute2.3LL4RearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008MercuryMarinerRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007FordEscapeRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007MercuryMarinerRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006FordEscapeRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006MazdaTribute3.0LV6RearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006MercuryMarinerRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005FordEscapeRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005MazdaTribute3.0LV6RearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005MercuryMarinerRearCentric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
