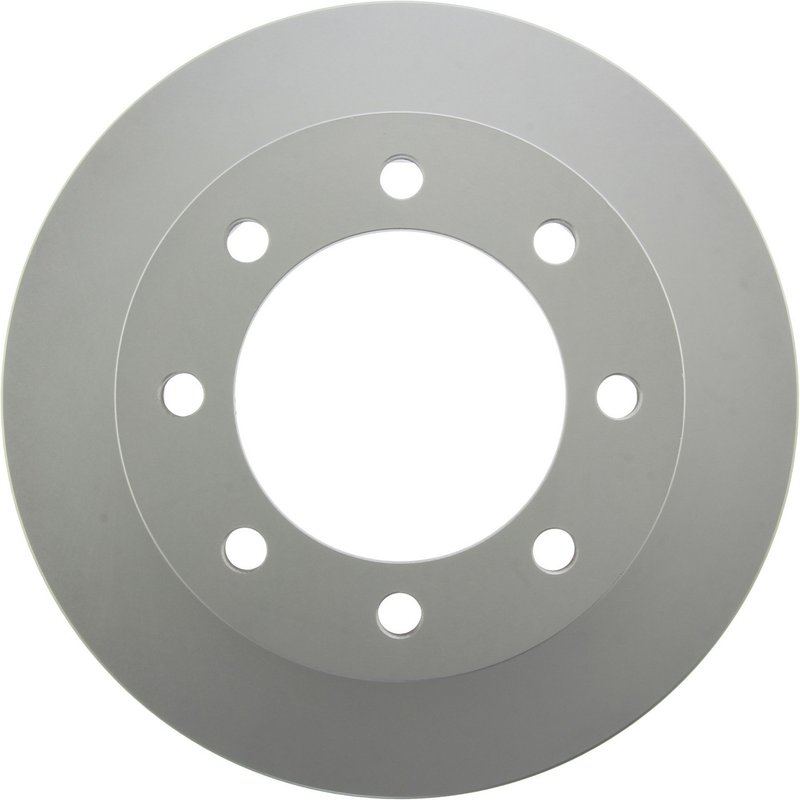

Centric 320.65110F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Ford F-350 Super Duty

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65110F, is built for front brake service on select Ford F-350 Super Duty applications. It combines OE-style fitment with a fully coated finish to help resist rust on exposed surfaces while maintaining smooth braking performance.

Key Features

• Fully coated disc finish with a coated hat for added corrosion protection
• Vented rotor design with smooth surface type
• Application-specific metallurgy to match OEM-style rotor requirements
• Outside diameter: 347.0 mm (13.661 in)
• Nominal thickness: 37.9 mm (1.492 in); discard thickness: 36.4 mm (1.433 in)
• 8 mounting bolt holes, 169.8 mm bolt circle diameter, 129.0 mm center hole diameter
• Straight vane style for front brake cooling

Product Line Details

Centric GCX Elemental Protection Disc Brake Rotors are engineered around vehicle-specific coating patterns and metallurgy. The GCX line uses Centric’s RS200 finish on non-mating surfaces to help protect against rust and corrosion, while matching the rotor’s material profile to the vehicle’s original brake requirements. This helps maintain consistent brake feel and appearance over time.

Detailed Description

Part number 320.65110F is a front disc brake rotor for Ford F-350 Super Duty models with dual rear wheels in the listed applications. It is a vented, smooth-surface rotor with a fully coated finish, coated hat, and OE-oriented dimensions for proper brake system service. This part cross-references Raybestos Brakes 680339FZN for the same application. Fits 2005 Ford F-350 Super Duty, front; Fits 2006 Ford F-350 Super Duty, front; Fits 2007-2011 Ford F-350 Super Duty, front; Fits 2012 Ford F-350 Super Duty, front.

Common Problems This Rotor Can Address

• Front brake rotor rust on exposed surfaces
• Brake pulsation caused by worn or below-spec rotors
• Reduced braking consistency from heat-worn rotor surfaces
• Uneven rotor appearance from corrosion on the hat and outer surfaces
• Service replacement needs on Ford F-350 Super Duty front brake systems

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and hub fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal vibration. Because this rotor is vented and application-specific, confirm the vehicle is a front dual rear wheel Ford F-350 Super Duty in the listed year range before ordering. Fits 2005-2012 Ford F-350 Super Duty, front, with the configuration notes shown in the fitment data.

Quality Assurance

Centric designs the GCX rotor line to match OE performance targets while using corrosion-resistant coatings and vehicle-specific metallurgy. The part is built to Centric’s application-focused standards for fit, finish, and brake system serviceability.
