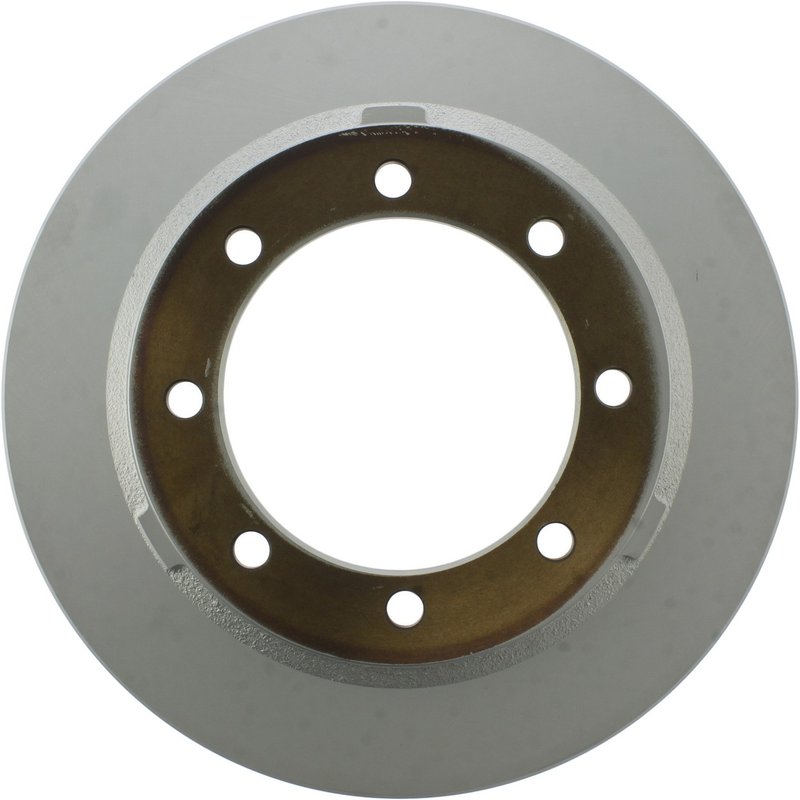

Centric 320.65114F Disc Brake Rotor - Rear
Centric GCX Rear Rotor for Ford F-350 Super Duty
Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65114F, is built for rear brake service on select Ford F-350 Super Duty dual rear wheel applications. It combines OE-style fitment with a fully coated finish to help resist rust on exposed surfaces while maintaining the braking surface needed for consistent stopping performance.
Key Features
- Fits 2005-2012 Ford F-350 Super Duty, rear, for dual rear wheel applications listed below
- Part number 320.65114F for application-specific lookup and ordering
- Fully coated disc finish with coated hat finish for added corrosion protection
- Vented rotor design with smooth surface type
- Outside diameter: 340.000 mm (13.386 in)
- Nominal thickness: 34.000 mm; discard thickness: 32.400 mm
- 8 lug holes with 156.100 mm bolt circle diameter
- Floating disc mounting and straight vane style
Product Details
The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is engineered to match OE performance while improving resistance to rust and corrosion on non-mating surfaces. Centric uses an advanced RS200 finish and application-specific coating patterns, along with metallurgy selected to align with OEM rotor profiles. For rear brake service on the Ford F-350 Super Duty, this rotor is a direct-fit option for DRW configurations listed in the fitment data. If you are searching for a rear brake rotor for a 2007-2011 Ford F-350 Super Duty DRW or a 2006 Ford F-350 Super Duty DRW, part number 320.65114F is the relevant application match.
What This Rotor Helps Address
- Rear brake rotor rust on exposed surfaces
- Corrosion buildup that can affect rotor appearance and service life
- Brake pulsation concerns tied to worn or below-spec rotors
- Noise or uneven braking caused by rotor wear
- Replacement needs for rear dual rear wheel Ford F-350 Super Duty brake service
Installation Notes and Tips
Verify rear axle configuration and model year before ordering, since this rotor applies to specific Ford F-350 Super Duty DRW rear applications, including 2005, 2006, 2007-2011, and 2012 vehicles with the notes shown in the fitment table. Confirm rotor dimensions, hub fit, and brake pad condition during installation. Clean the rotor friction surfaces before use and follow the vehicle manufacturer’s brake service procedures.
Quality Assurance
Centric designs the GCX line around OE-style performance targets and corrosion protection for long-term service appearance. The brand’s application-specific metallurgy and coating strategy are intended to match the vehicle’s original rotor profile and braking requirements.
- Fits 2012 Ford F-350 Super Duty, rear, DRW; To 10/21/12
- Fits 2007-2011 Ford F-350 Super Duty, rear, Fitment: Heavy Duty Dual Rear Wheels.
- Fits 2006 Ford F-350 Super Duty, rear, DRW; To 12/06
- Fits 2005 Ford F-350 Super Duty, rear, Fitment: Heavy Duty Dual Rear Wheels.
| Brand | Centric |
|---|---|
| Part Number | 320.65114F |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Rear |
| Discard Thickness | 1.276 |
| Discard Thickness | 32.400 |
| Nominal Thickness | 1.339 |
| Nominal Thickness | 34.000 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 125.000 |
| Overall Height | 4.921 |
| Outside Diameter | 13.386 |
| Outside Diameter | 340.000 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 128.100 |
| Center Hole Diameter | 5.043 |
| Mounting Bolt Hole Circle Diameter | 156.100 |
| Mounting Bolt Hole Circle Diameter | 6.146 |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 0.508 |
| Stud/Lug Hole Diameter | 12.900 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 13.860 |
| Weight [cntrc] lbs | 30.500 |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Ford | F-350 Super Duty | Rear | DRW; To 10/21/12; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2011 | Ford | F-350 Super Duty | Rear | Fitment: Heavy Duty Dual Rear Wheels.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2010 | Ford | F-350 Super Duty | Rear | Fitment: Heavy Duty Dual Rear Wheels.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2009 | Ford | F-350 Super Duty | Rear | Fitment: Heavy Duty Dual Rear Wheels.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2008 | Ford | F-350 Super Duty | Rear | Fitment: Heavy Duty Dual Rear Wheels.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2007 | Ford | F-350 Super Duty | Rear | Fitment: Heavy Duty Dual Rear Wheels.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2006 | Ford | F-350 Super Duty | Rear | DRW; To 12/06; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2005 | Ford | F-350 Super Duty | Rear | Fitment: Heavy Duty Dual Rear Wheels.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
