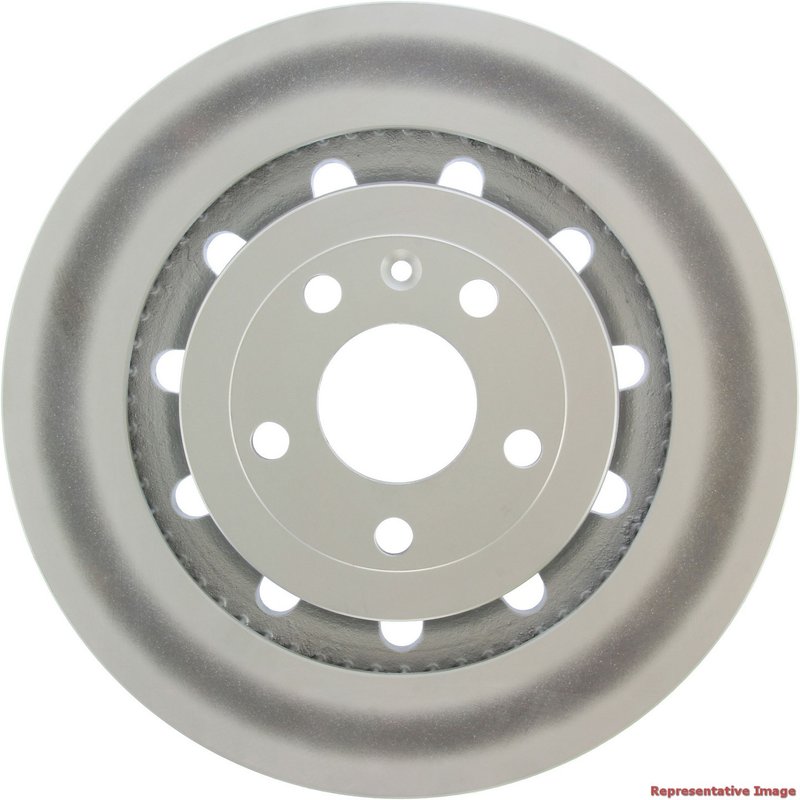

Centric 320.65136F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor (part number 320.65136F) is engineered for reliable braking performance on select Ford and Lincoln vehicles. Designed with a full coating to resist corrosion, this rotor is compatible with models including the Ford Explorer, Flex, Taurus, and Lincoln MKS and MKT.

• Full coating on disc and hat for enhanced corrosion resistance
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 1.260 inches (32.000 mm) with discard thickness at 1.181 inches (30.000 mm)
• Outside diameter of 13.858 inches (352.000 mm) suitable for specified vehicle fitments
• Floating disc mounting and vented hat for optimized rotor performance
• 5 lug holes with 0.610 inch (15.500 mm) diameter and 4.500 inch (114.300 mm) bolt circle diameter
• Smooth surface finish for consistent pad contact and braking efficiency

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line offers rotors that are fully coated on both the disc and hat surfaces to provide superior protection against rust and corrosion. This particular rotor, part number 320.65136F, features a vented design with straight vanes that promote effective heat dissipation during braking, reducing the risk of brake fade. The rotor’s nominal thickness is 1.260 inches (32.000 mm), with a discard thickness of 1.181 inches (30.000 mm), ensuring a long service life before replacement is necessary. The overall height measures 1.854 inches (47.100 mm), and the rotor has a smooth surface finish to maintain consistent brake pad contact. The floating disc mounting and vented hat design contribute to improved thermal management and structural integrity.

Compatible Vehicles and Applications

This rotor is specifically designed for use on the following vehicles:

• Ford Explorer
• Ford Flex
• Ford Taurus
• Lincoln MKS
• Lincoln MKT

It is ideal for replacing worn or damaged rotors on these models, restoring braking performance and safety.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Reduced braking efficiency due to rotor warping or wear
• Brake noise caused by uneven rotor surfaces
• Overheating and brake fade from insufficient heat dissipation
• Vibration or pulsation during braking

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Clean hub surface to prevent rotor runout
• Torque lug nuts to manufacturer specifications
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric Parts maintains strict quality control standards for the GCX Elemental Protection line, ensuring each rotor meets or exceeds OEM specifications. The full coating process enhances durability and corrosion resistance. While specific warranty details for part number 320.65136F should be confirmed at the point of purchase, Centric typically offers a limited warranty covering defects in materials and workmanship.
