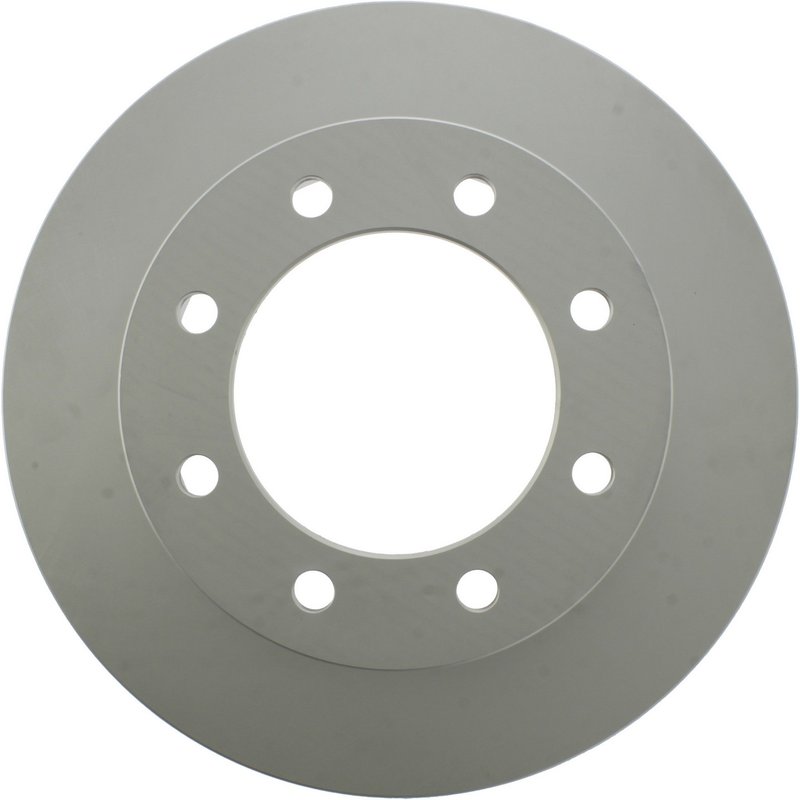

Centric 320.65138F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Ford F-250 Super Duty and F-350 Super Duty trucks. Designed with a fully coated finish, these rotors offer enhanced corrosion resistance and durability under demanding conditions.

• Part Number: 320.65138F
• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with 67 straight vanes for improved heat dissipation
• Nominal thickness of 1.496 inches (38.000 mm) and discard thickness of 1.433 inches (36.400 mm)
• Outside diameter of 14.291 inches (363.000 mm) and overall height of 3.941 inches (100.100 mm)
• Floating disc mounting and smooth surface type
• Eight stud/lug holes with 0.634 inch (16.100 mm) diameter

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating (part number 320.65138F) are engineered specifically for heavy-duty Ford trucks such as the F-250 Super Duty and F-350 Super Duty. These rotors feature a fully coated disc and hat finish that helps prevent rust and corrosion, extending the rotor's service life in harsh environments. The vented rotor design includes 67 straight vanes, which enhance airflow and heat dissipation during braking, reducing the risk of brake fade under heavy loads.

With a nominal thickness of 1.496 inches and a discard thickness of 1.433 inches, these rotors maintain structural integrity and performance throughout their lifespan. The floating disc mounting system allows for slight movement to accommodate thermal expansion, improving braking consistency. The smooth surface finish ensures even pad contact and wear, while the eight lug holes with precise diameters provide secure mounting compatibility.

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection line focuses on delivering rotors with full coating technology to protect against elemental corrosion. This product line is designed to meet the demands of trucks and SUVs that operate in environments prone to moisture, salt, and other corrosive elements. The full coating on both the disc and hat surfaces helps maintain rotor integrity and appearance over time, making it a practical choice for Ford F-250 Super Duty and F-350 Super Duty owners seeking durable braking components.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading corroded rotors to prevent rust-related brake issues
• Improving heat dissipation to reduce brake fade during heavy towing or hauling
• Restoring braking performance on Ford F-250 Super Duty and F-350 Super Duty trucks
• Addressing uneven pad wear due to rotor surface imperfections

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (1.433 inches) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque lug nuts to manufacturer specifications for secure fitment
• Check compatibility with existing brake pads and hardware
• Inspect wheel bearings and replace if necessary, as bearings are not included

Quality Assurance and Warranty

Centric provides quality assurance through precise manufacturing standards and full coating technology to resist corrosion. While specific warranty details are not provided here, Centric rotors typically come with a limited warranty against defects in materials and workmanship. Using part number 320.65138F ensures compatibility and quality for Ford F-250 Super Duty and F-350 Super Duty brake systems.
