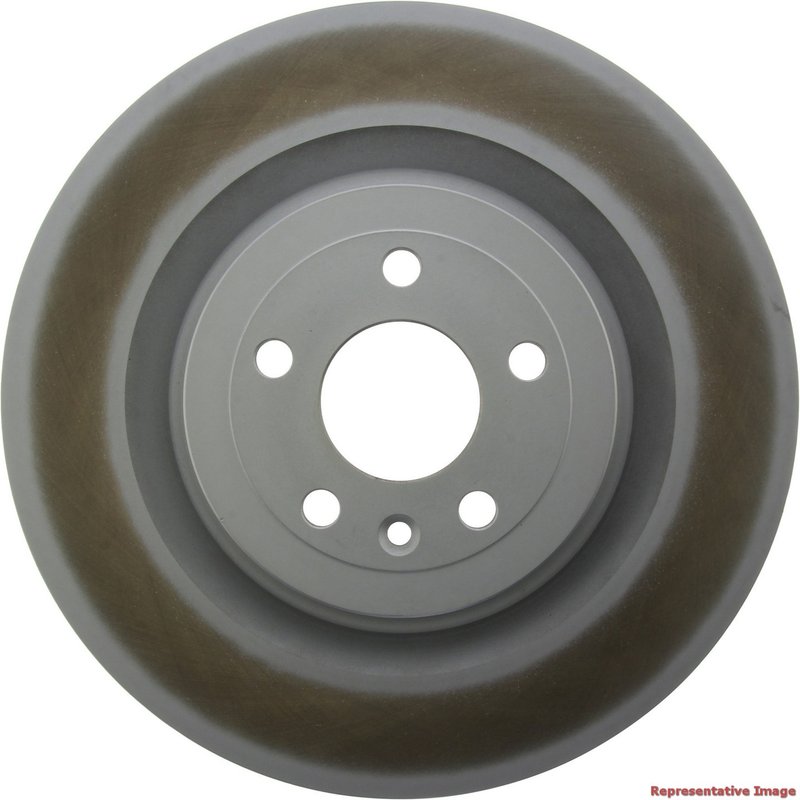

Centric 320.65154F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for select Ford and Lincoln vehicles. Designed with a fully coated finish, these rotors offer enhanced corrosion resistance and durability for long-term use.

• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with 47 straight vanes for improved heat dissipation
• Nominal thickness of 1.260 inches (32.000 mm) with discard thickness at 1.201 inches (30.500 mm)
• Outside diameter of 13.858 inches (352.000 mm) suitable for specific Ford and Lincoln models
• Floating disc mounting and smooth surface type for consistent braking
• Five stud/lug holes with 0.610 inch (15.500 mm) diameter for secure fitment

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

This rotor is part of the Centric GCX Elemental Protection line, which focuses on providing full coating coverage to protect against rust and corrosion. The full coating extends the rotor’s service life, especially in environments prone to moisture and road salt exposure. This product line is engineered to maintain structural integrity and braking performance over time, making it suitable for vehicles like the Ford Explorer, Flex, and Lincoln MKS.

Technical Specifications and Features

The Centric GCX rotor features a vented design with 47 straight vanes that enhance airflow and heat dissipation during braking. The rotor’s nominal thickness is 1.260 inches (32.000 mm), with a discard thickness of 1.201 inches (30.500 mm), ensuring safe replacement intervals. The overall height measures 1.854 inches (47.100 mm), and the outside diameter is 13.858 inches (352.000 mm). The hat is coated to resist corrosion, and the rotor surface is smooth to provide consistent pad contact. This rotor does not include an ABS tone ring or bearings, and it mounts using a floating disc system with a 114.300 mm (4.500 inch) bolt circle diameter and five lug holes.

Compatible Vehicles and Applications

• Ford Explorer
• Ford Flex
• Lincoln MKS
• Lincoln MKT
• Ford Taurus

This rotor is designed specifically for these Ford and Lincoln models, ensuring proper fitment and performance when replacing worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Uneven rotor wear causing brake pulsation
• Overheating due to insufficient heat dissipation
• Warped rotors leading to vibration during braking
• Reduced braking efficiency from worn or damaged rotors

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor (part number 320.65154F), ensure the hub surface is clean and free of debris to promote proper rotor seating. Use the correct torque specifications for lug nuts and mounting bolts to avoid rotor warping. Since this rotor does not include bearings or an ABS tone ring, verify compatibility with your vehicle’s existing components. It is recommended to replace brake pads simultaneously to maintain optimal braking performance.

Quality Assurance and Warranty

Centric provides quality assurance through precise manufacturing standards and full coating technology to resist corrosion. While specific warranty details are not provided here, Centric rotors typically come with a limited warranty against defects in materials and workmanship. Always consult the product documentation or manufacturer for exact warranty terms.
