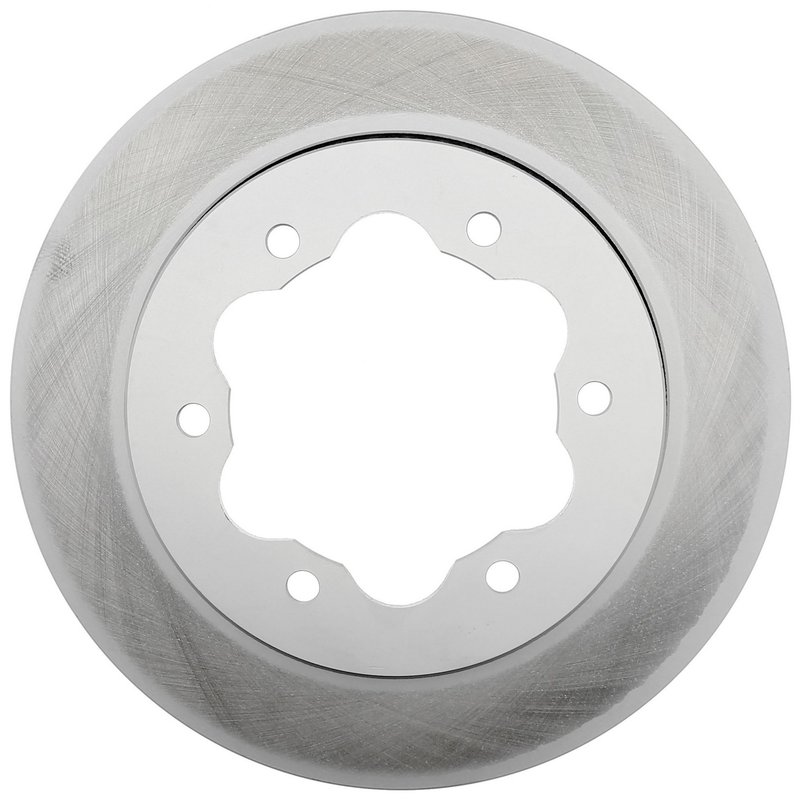

Centric 320.65165F Disc Brake Rotor - Rear

Centric GCX Rear Rotor for Transit Vans

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.65165F, is a rear vented rotor built for Ford Transit applications that need consistent braking performance and corrosion-resistant coverage. It features a fully coated disc finish, coated hat, and smooth surface for a clean OE-style replacement.

Key Features

• Fully coated disc finish with coated hat for added protection against corrosion
• Vented rotor design for rear brake applications
• Smooth surface type for stable pad contact
• Outside diameter: 13.307 in. / 338.0 mm
• Nominal thickness: 1.299 in. / 33.0 mm
• Discard thickness: 1.181 in. / 30.0 mm
• Overall height: 3.500 in. / 81.1 mm
• 6-lug pattern with 159.0 mm bolt circle diameter
• Floating disc mounting with 47 vane count

Product Details

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating are built for drivers who need a rear brake rotor with corrosion protection on exposed surfaces and a vented internal design. This rotor is engineered for Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD rear brake applications across 2019-2023 model years, including 2019 units built from 10/21/2019. The Centric 320.65165F matches the fitment and dimensions needed for these rear vented disc setups, making it a direct replacement choice for maintenance and brake service.

This part cross-references no listed alternate part numbers in the provided data.

What This Rotor Helps Address

• Rear brake pulsation caused by worn or uneven rotor surfaces
• Corrosion on rotor hats and exposed braking surfaces
• Reduced braking consistency from rotor wear beyond discard thickness
• Brake noise related to surface irregularity or rotor condition
• Service replacement needs on Ford Transit rear vented disc brake systems

Installation Notes and Tips

Verify rear fitment by model year and build date before installation, especially for 2019 Transit applications from 10/21/2019. Confirm the rotor matches the vehicle’s vented rear disc configuration, 6-lug hub pattern, 159.0 mm bolt circle diameter, and 129.4 mm center hole diameter. Inspect pads, caliper hardware, and hub condition during brake service, and clean the hub mounting surface before installing the rotor.

Quality Assurance

Centric GCX Elemental Protection rotors are designed with full coating coverage, coated hat protection, and OE-style dimensional specifications for consistent fitment on supported Ford Transit rear brake applications. Part number 320.65165F is specified for 2019-2023 Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD rear use as listed in the fitment data.
