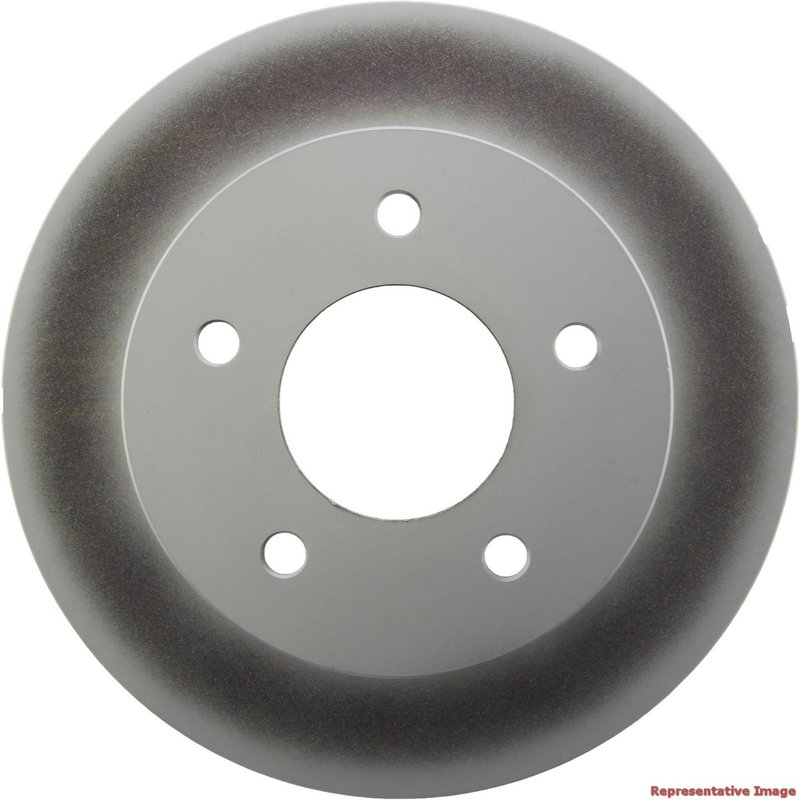

Centric 320.66022F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for Astro and Safari

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.66022F, is a front vented rotor built for 1990-2002 Chevrolet Astro and 1990-2002 GMC Safari applications. Its fully coated disc finish and coated hat help protect exposed surfaces, while the smooth braking surface supports consistent pad contact.

Key Features

• Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Part number 320.66022F
• Fits front brake positions on Chevrolet Astro and GMC Safari
• Fully coated disc finish with coated hat finish
• Vented rotor design with straight vane style
• Smooth surface type for even pad engagement
• Outside diameter: 11.610 in. / 294.900 mm
• Nominal thickness: 1.288 in. / 32.720 mm
• Discard thickness: 1.215 in. / 30.860 mm
• 5-lug pattern with 127.000 mm bolt circle diameter

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are built for drivers who need a front rotor replacement with corrosion-resistant surface treatment and OE-style dimensions. This rotor measures 3.307 in. overall height, 3.102 in. center hole diameter, and uses a floating disc mounting design. For shoppers searching for a front brake rotor for 1990-2002 Chevrolet Astro or 1990-2002 GMC Safari, 320.66022F provides the listed fitment and dimensional match points needed for brake service.

The GCX Elemental Protection line focuses on coated rotor surfaces to help protect the hat and disc areas from environmental exposure. If you are replacing worn front rotors on a Chevrolet Astro or GMC Safari, part number 320.66022F is a direct-fit option for the confirmed applications listed below.

What It Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Reduced braking performance from worn front rotors
• Surface corrosion on exposed rotor areas
• Noise or uneven pad contact from damaged rotor faces
• Front brake service needs on Astro and Safari vans

Installation Notes

Verify rotor dimensions, hub fit, and wheel bolt pattern before installation. This rotor is for front position use only and does not include ABS tone ring or bearings. Inspect pads, calipers, and hub surfaces during brake service to confirm proper rotor seating and braking performance.

Fits 1990-2002 Chevrolet Astro, front. Fits 1990-2002 GMC Safari, front.

Quality Assurance

Centric GCX rotors are produced to match the listed application and dimensional specifications for brake service on the confirmed Astro and Safari fitments. Part number 320.66022F is specified as a fully coated, vented front rotor with smooth braking surfaces and coated hat protection.
