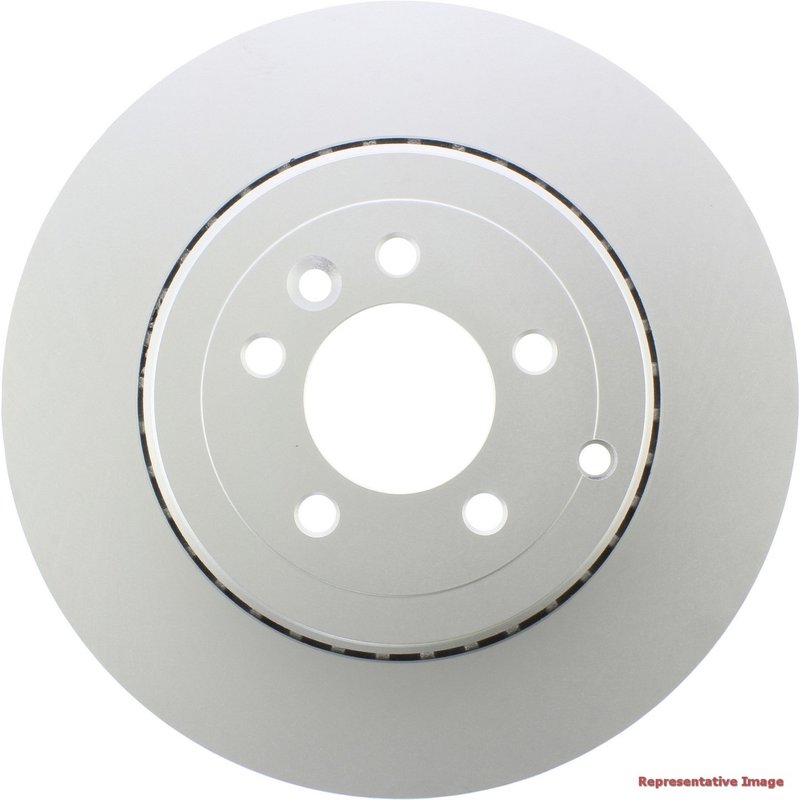

Centric 320.66025F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor for GM Trucks and SUVs

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.66025F, is a front vented rotor built for select Chevrolet and GMC applications. It combines a fully coated disc finish, coated hat, and smooth surface to support consistent braking performance while helping resist corrosion on exposed metal surfaces.

Key Features

• Part number 320.66025F for front brake service
• Fully coated disc finish with coated hat for added corrosion protection
• Vented rotor design with straight vanes for heat management
• Smooth surface type for rotor replacement applications
• ABS tone ring included
• Hub and rotor mounting style
• Outside diameter: 295.000 mm (11.614 in)
• Nominal thickness: 32.700 mm (1.287 in)
• Discard thickness: 30.860 mm (1.215 in)
• Center hole diameter: 77.700 mm (3.059 in)
• 5-lug pattern with 127.000 mm (5.000 in) bolt circle

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are built for drivers who need a front rotor replacement with corrosion-resistant coating coverage on both the disc and hat. This rotor measures 114.500 mm (4.508 in) overall height and uses a vented, straight-vane construction to support heat dissipation during repeated stops. The included ABS tone ring helps maintain proper wheel speed signal integration on applications that require it. Part number 320.66025F is a direct-fit style rotor for front brake service on Chevrolet Express 1500, GMC Savana 1500, Chevrolet Tahoe, Chevrolet C1500, Chevrolet C1500 Suburban, GMC C1500, GMC C1500 Suburban, and GMC Yukon applications listed below.

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating is the product line used here for added surface protection on the rotor and hat areas. For shoppers searching for a front brake rotor for 1992-2002 Chevrolet and GMC trucks or SUVs, 320.66025F is a fitment-specific option that matches the listed hub and rotor configuration.

What This Rotor Helps Address

• Front brake pulsation caused by worn or out-of-spec rotors
• Corrosion on exposed rotor surfaces and hat areas
• Brake noise related to uneven rotor surfaces
• Heat buildup during repeated braking events
• ABS signal concerns on applications requiring a tone ring

Installation Notes and Fitment

• Fits 1996-2002 Chevrolet Express 1500, front
• Fits 1996-2002 GMC Savana 1500, front
• Fits 1995-2000 Chevrolet Tahoe, front
• Fits 1995-1999 Chevrolet C1500, front
• Fits 1994-1999 Chevrolet C1500 Suburban, front; notes: fits rear drum brakes with 11" diameter
• Fits 1995-1999 GMC C1500, front
• Fits 1994-1999 GMC C1500 Suburban, front; notes: fits rear drum brakes with 11" diameter
• Fits 1992-1999 GMC Yukon, front
• Fits 1992-1993 Chevrolet C1500 Suburban, front
• Fits 1992-1993 GMC C1500 Suburban, front

Verify rotor dimensions, hub style, bolt circle, and ABS tone ring requirements before installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

Centric GCX rotors are specified with measured thickness, diameter, mounting, and ABS details to support accurate parts selection for the listed Chevrolet and GMC front brake applications. Part number 320.66025F is cataloged for direct vehicle matching using the fitment data provided.
