Home› Brake > Drums and Rotors› Centric 320.66063F Disc Brake Rotor - Front
Centric 320.66063F Disc Brake Rotor - FrontOE Quality 60-Day Returns
Part #: 320.66063F

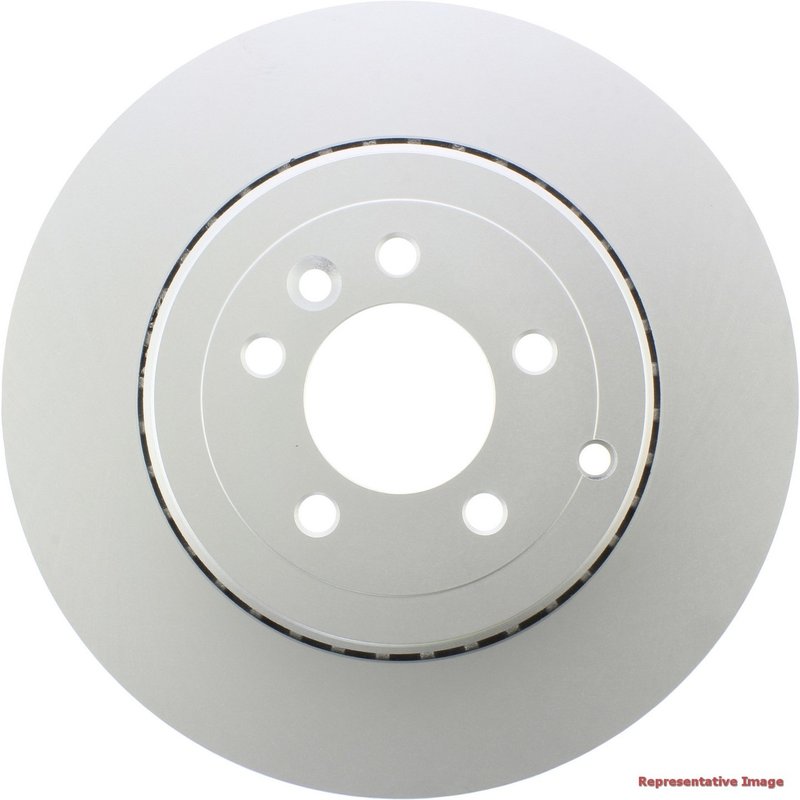

Centric 320.66063F Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
⚙️ 17 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$59.37Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
🚗Fitment: Buick, Chevrolet, GMC, and Isuzu, Ascender, Envoy, Rainier, SSR, and Trailblazer
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.66063F Disc Brake Rotor - Front
BrandCentric
Part Number320.66063F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Discard Thickness1.083
Discard Thickness27.500
Nominal Thickness1.146
Nominal Thickness29.100
Disc FinishFully coated
Hat FinishCoated
Overall Height2.154
Overall Height54.700
Outside Diameter11.890
Outside Diameter302.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter3.118
Center Hole Diameter79.200
Mounting Bolt Hole Circle Diameter127.000
Mounting Bolt Hole Circle Diameter5.000
Stud/Lug Hole Quantity6
Stud/Lug Hole Diameter0.520
Stud/Lug Hole Diameter13.200
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]2
Vane Style [cntrc]Straight
Weight [cntrc] kgs9.050
Weight [cntrc] lbs19.900

This part fits 17 vehicles. Search below:

YearMakeModelSubmodelLitersCylindersPositionNotes
2009ChevroletTrailblazer4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2009GMCEnvoy4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008ChevroletTrailblazer4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008GMCEnvoy4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008IsuzuAscenderFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007BuickRainier4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007ChevroletTrailblazer4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007GMCEnvoy4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007IsuzuAscenderFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006BuickRainier4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006ChevroletSSRFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006ChevroletTrailblazerLT4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006ChevroletTrailblazerLS4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006ChevroletTrailblazerBase4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006ChevroletTrailblazerB4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006ChevroletTrailblazerA4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006GMCEnvoy4.2LL6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
