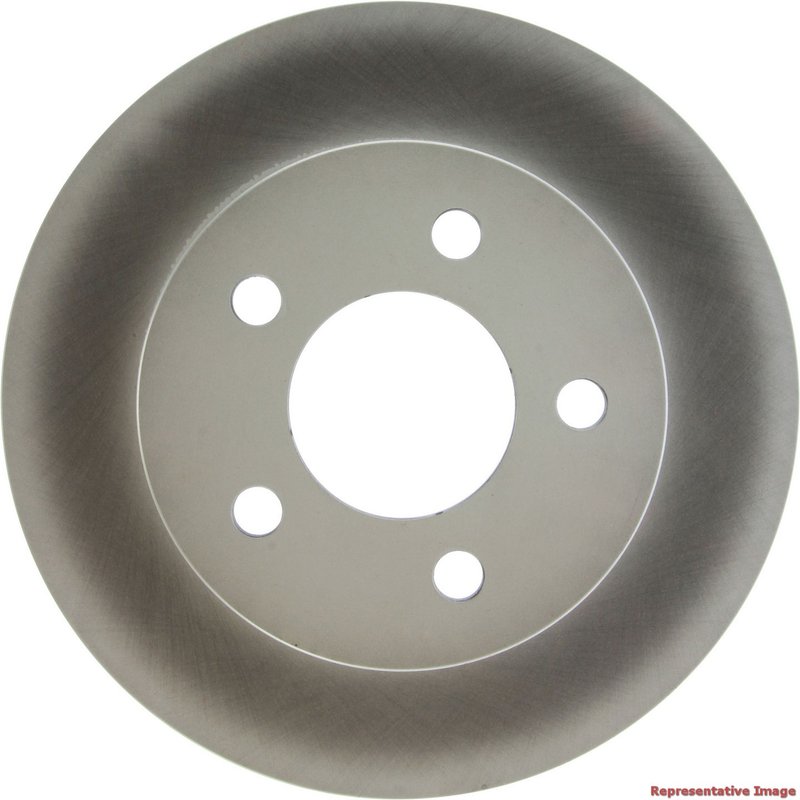

Centric 320.67022F Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Jeep Models

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (Part Number 320.67022F) is engineered to provide consistent braking performance for various Jeep vehicles. Designed specifically for models like the Cherokee, Grand Cherokee, Wrangler, and Wagoneer, this rotor offers durability and corrosion resistance through its full coating.

• Full coating on disc and hat for enhanced corrosion protection
• Vented rotor design for improved heat dissipation
• Floating disc mounting for better rotor alignment
• Compatible with Jeep Cherokee, Comanche, Grand Cherokee, Grand Wagoneer, TJ, Wagoneer, and Wrangler
• Nominal thickness of 0.949 inches (24.1 mm) with discard thickness at 0.894 inches (22.7 mm)
• Outside diameter of 11.02 inches (279.9 mm) and overall height of 3.224 inches (81.9 mm)
• 5 lug holes with a bolt circle diameter of 4.5 inches (114.3 mm)
• Smooth surface finish for consistent pad contact

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This full coating helps prevent rust and corrosion, extending the rotor's service life, especially in harsh weather conditions. The rotors in this line are designed to meet or exceed OEM specifications, ensuring reliable fitment and performance for Jeep vehicles.

Product Details and Specifications

This disc brake rotor features a vented design with straight vanes to promote efficient heat dissipation during braking, reducing the risk of brake fade. The floating disc mounting allows for slight movement to maintain proper alignment and reduce uneven wear. The rotor's smooth surface finish ensures optimal contact with brake pads, contributing to consistent stopping power. With a center hole diameter of 2.835 inches (72 mm) and 5 lug holes sized at 0.614 inches (15.6 mm), this rotor is engineered for precise fitment on compatible Jeep models.

Applications and Problem Solving

• Replacement for worn or warped rotors on Jeep Cherokee, Grand Cherokee, Wrangler, and related models
• Addresses brake noise and vibration caused by uneven rotor surfaces
• Helps prevent rust and corrosion buildup that can reduce braking efficiency
• Improves heat management to reduce brake fade during heavy use
• Restores proper rotor thickness for safe and effective braking

Installation Notes and Tips

Ensure the rotor is compatible with your specific Jeep model and year before installation. Clean the hub surface thoroughly to prevent rotor runout. Use proper torque specifications on lug nuts to avoid rotor warping. Since this rotor does not include bearings or ABS tone rings, verify if your vehicle requires these components separately. It is recommended to replace brake pads when installing new rotors for optimal performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The full coating on the rotor and hat surfaces offers enhanced corrosion resistance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric's official documentation for complete warranty information.
