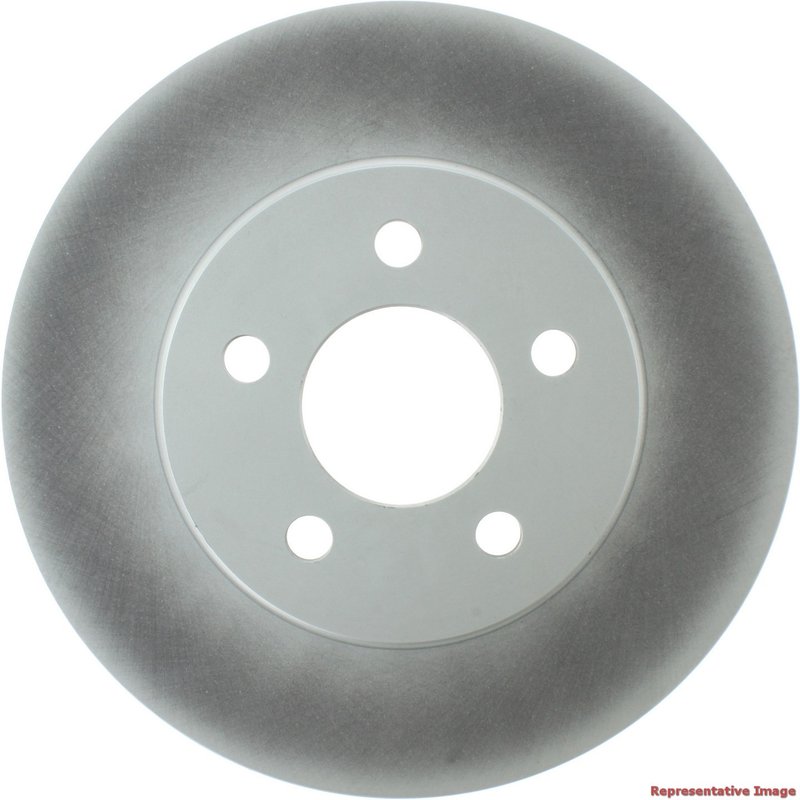

Centric 320.67034F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.67034F, is built for front brake service on select Chrysler, Dodge, and Plymouth minivans. It is a vented, fully coated rotor with a smooth friction surface and coated hat for added resistance to rust and corrosion.

For drivers searching for a front brake rotor for 1996-2000 Dodge Caravan, 1996-2000 Dodge Grand Caravan, or 1996-2000 Plymouth Voyager, this rotor is engineered to match OE-style performance and fitment requirements. The 320.67034F also serves select 2000 Chrysler Grand Voyager, Town & Country, and Voyager applications.

Key Features

• Part number 320.67034F
• Fully coated disc finish with coated hat for corrosion protection
• Vented rotor design with straight vanes
• Smooth surface type for consistent pad contact
• 5-lug pattern with floating disc mounting
• 256.2 mm outside diameter and 61.0 mm center hole diameter
• Built to Centric GCX application-specific metallurgy standards

GCX Product Line Details

Centric’s GCX and GCX FC rotor line is application specific, with coating patterns matched to brake pad friction type and metallurgy selected to align with OEM-style vehicle requirements. The 320.67034F uses Centric’s RS200 finish on non-mating surfaces to help protect exposed areas while maintaining the braking surface needed for proper pad engagement. If you are comparing front brake rotors for a Chrysler Town & Country, Dodge Caravan, or Plymouth Voyager, this GCX rotor is built around those vehicle-specific dimensions and material targets.

What This Rotor Helps Address

• Front brake rotor rust on exposed surfaces
• Corrosion buildup on the hat and non-mating areas
• Brake pulsation caused by worn or below-spec rotors
• Reduced braking consistency from uneven rotor wear
• OE replacement needs for select 256 mm front brake applications

Installation Notes and Fitment

Compatible With 2000 Chrysler Grand Voyager, front; 1996-2000 Chrysler Town & Country, front; 2000 Chrysler Voyager, front; 1996-2000 Dodge Caravan, front; 1996-2000 Dodge Grand Caravan, front; 1996-2000 Plymouth Grand Voyager, front; and 1996-2000 Plymouth Voyager, front. Fitment notes indicate a 256 mm front disc application and that the rotor fits left or right side on select vehicles.

Before installation, verify rotor dimensions against the existing part, including 256.2 mm outside diameter, 61.0 mm center hole diameter, 100.0 mm bolt circle, and 24.0 mm nominal thickness. Confirm pad condition, hub cleanliness, and brake hardware wear before reassembly. Part number 320.67034F should be matched to the vehicle’s front brake specification before service.

Quality Assurance

Centric designs GCX rotors to align with OE performance targets and uses metallurgical formulations selected for the vehicle application. The brand states coverage across a broad range of late-model and legacy vehicles, with GCX coverage expanding across a large SKU catalog for common brake service needs.
