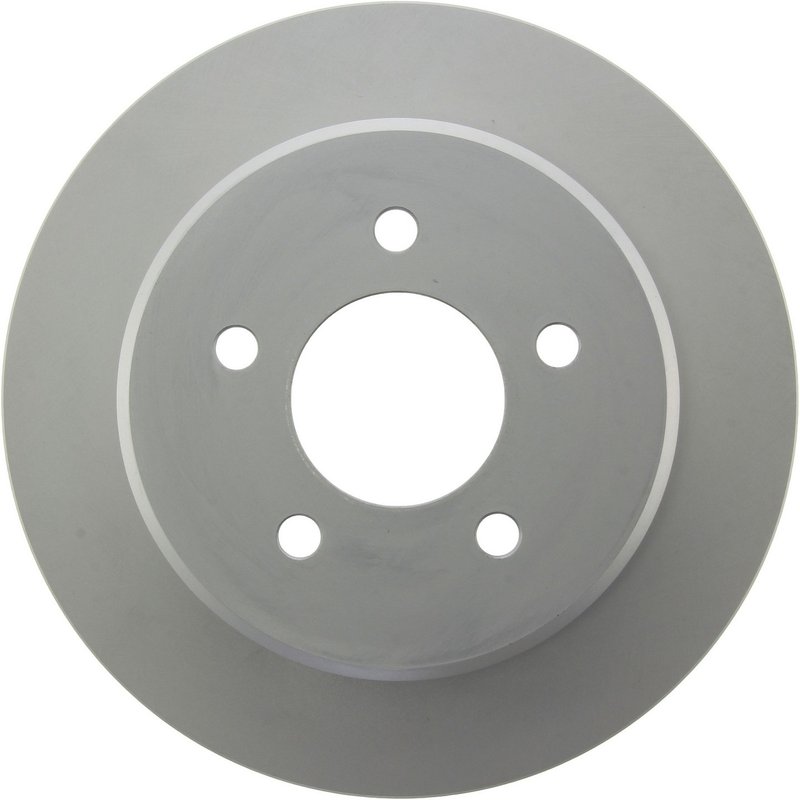

Centric 320.67037F Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.67037F, is a rear solid rotor engineered for OE-style braking performance and corrosion resistance. It is built for select Chrysler Town & Country, Dodge Caravan, Dodge Grand Caravan, and Plymouth Grand Voyager applications.

With a fully coated disc finish, coated hat, and smooth surface type, this rotor is made to maintain a cleaner appearance while helping protect non-mating surfaces from rust. The Centric GCX line focuses on application-specific metallurgy and coating patterns to match the brake pad friction profile used on the vehicle.

Key Features

• Part number 320.67037F rear disc brake rotor
• Fully coated disc finish with coated hat for added corrosion protection
• Solid rotor design with smooth surface type
• Outside diameter: 11.409 in. / 289.800 mm
• Nominal thickness: 0.492 in. / 12.500 mm
• Discard thickness: 0.443 in. / 11.250 mm
• 5-lug pattern with 4.500 in. bolt circle diameter
• Center hole diameter: 2.835 in. / 72.000 mm
• Cross-reference: Raybestos Brakes 76650FZN

Product Details

Centric GCX Elemental Protection Disc Brake Rotors are designed to match OE performance while adding protection against rust and corrosion on exposed surfaces. The GCX FC full-coating design uses Centric’s RS200 finish on non-mating areas, helping preserve the rotor’s appearance and durability over time. Centric also uses application-specific coating patterns and metallurgy to align the rotor with the vehicle’s original brake system requirements.

This part number 320.67037F is a rear rotor for 1997-2007 Chrysler Town & Country, 2001-2007 Dodge Caravan, 1997-2007 Dodge Grand Caravan, and 1997 Plymouth Grand Voyager. It is a direct-fit style replacement for drivers searching for a rear brake rotor for Chrysler Town & Country, Dodge Caravan rear rotor replacement, or Dodge Grand Caravan rear brake rotor applications.

Common Problems This Rotor Can Address

• Rear rotor rust on exposed surfaces
• Brake pulsation caused by worn rotor thickness
• Uneven braking feel from rotor wear
• Surface corrosion that affects appearance and service life
• Replacement needs for OE-style rear brake service

Installation Notes

Verify rotor dimensions, hub fitment, and rear axle application before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal vibration. Inspect pads, calipers, and hardware condition during service so the new rotor can seat properly. This rotor is for rear position use only on the listed vehicles.

Quality Assurance

Centric designs the GCX rotor line around OE performance targets and vehicle-specific metallurgy. The full coating and RS200 surface protection are intended to help resist rust and corrosion on non-mating surfaces throughout normal service.
