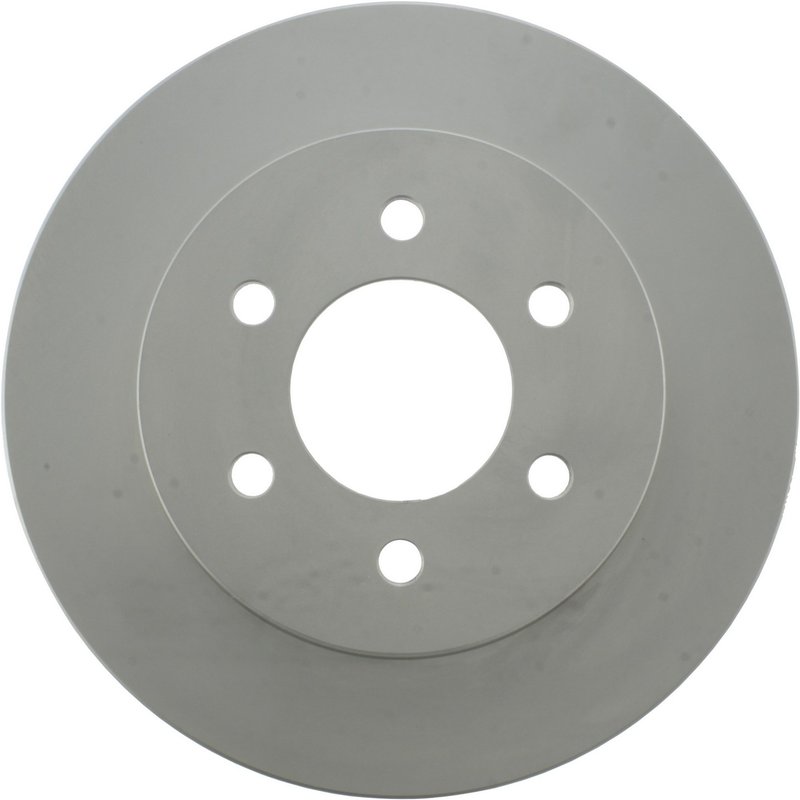

Centric 320.67038F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor

The Centric GCX Elemental Protection Disc Brake Rotor is built for OE-style braking performance with added resistance to rust and corrosion. This fully coated front rotor is engineered for the 1997-2002 Dodge Dakota and 1998-2002 Dodge Durango, making it a direct-fit option for drivers replacing worn front brake rotors.

Part number 320.67038F uses Centric’s GCX Full Coating design with an RS200 finish on non-mating surfaces to help maintain appearance and protect exposed metal. The vented, smooth-surface rotor measures 11.303 in. outside diameter, 2.520 in. overall height, 0.945 in. nominal thickness, and 0.890 in. discard thickness.

Key Features

• Fits 1997-2002 Dodge Dakota, front
• Fits 1998-2002 Dodge Durango, front
• Fully coated disc finish and coated hat for corrosion resistance
• Vented rotor design with straight vanes
• Smooth surface type for consistent pad contact
• 6-lug pattern with 4.500 in. bolt circle diameter
• Floating disc mounting and 73.300 mm center hole diameter
• Part number 320.67038F

GCX Product Line Details

Centric’s GCX rotor line is application-specific, with coating patterns and metallurgy selected to match the brake pad friction type and OEM-style rotor requirements. The GCX family uses Centric’s enhanced carbon or high carbon alloy formulations depending on application, helping the rotor align with the vehicle’s original metallurgical profile. For shoppers searching for a front brake rotor for Dodge Dakota or Dodge Durango, 320.67038F is built around those fitment and performance targets.

What This Rotor Helps Address

• Front brake rotor rust on exposed surfaces
• Brake pulsation caused by worn rotor thickness
• Reduced braking consistency from uneven rotor wear
• Corrosion on the hat and non-mating surfaces
• Replacement needs for a vented front disc brake rotor

Installation Notes and Tips

Verify rotor dimensions, lug count, and center bore before installation. This rotor does not include ABS tone ring or bearings. Clean the hub mounting surface thoroughly and inspect pads, calipers, and hardware condition before installing new rotors. Proper bedding-in of new pads and rotors helps establish even pad transfer on the smooth braking surface.

Quality Assurance

Centric engineers the GCX line to match OE performance targets while improving protection against rust and corrosion. Part number 320.67038F is a direct replacement-style rotor for front brake service on the Dodge Dakota and Dodge Durango applications listed above. This part cross-references Raybestos Brakes (e.g., 76645FZN) for the same application.
