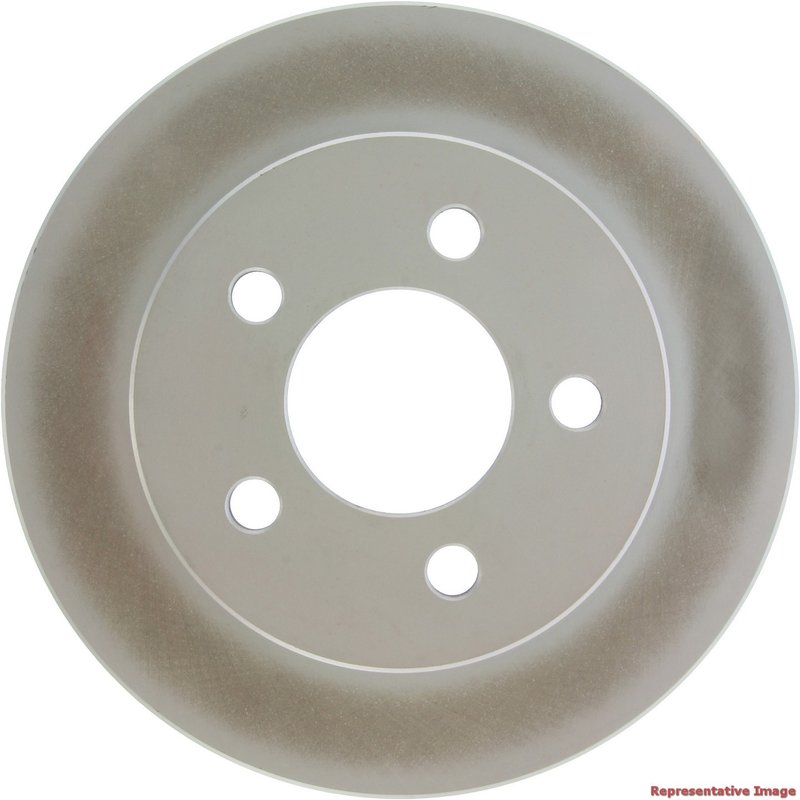

Centric 320.67045F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Jeep Cherokee, TJ, and Wrangler models. Designed with a fully coated finish, these rotors offer enhanced corrosion resistance and durability for long-term use.

• Part Number: 320.67045F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 0.945 inches (24.000 mm) and discard thickness of 0.894 inches (22.700 mm)
• Outside diameter of 11.024 inches (280.000 mm) and overall height of 3.071 inches (78.000 mm)
• Floating disc mounting and smooth surface type
• Five stud/lug holes with 0.630 inch (16.000 mm) diameter

Detailed Product Description

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating (part number 320.67045F) are engineered specifically for Jeep Cherokee, TJ, and Wrangler vehicles. These rotors feature a fully coated disc and hat finish that helps prevent rust and corrosion, extending the rotor's service life. The vented rotor design with straight vanes enhances airflow to dissipate heat effectively, reducing the risk of brake fade during demanding driving conditions.

With a nominal thickness of 0.945 inches (24.000 mm) and a discard thickness of 0.894 inches (22.700 mm), these rotors maintain optimal braking performance while meeting OEM specifications. The 11.024 inch (280.000 mm) outside diameter and 3.071 inch (78.000 mm) overall height ensure proper fitment and compatibility with the specified Jeep models. The floating disc mounting system allows for slight rotor movement, which can improve braking smoothness and reduce noise.

Compatible Vehicles and Applications

• Jeep Cherokee
• Jeep TJ
• Jeep Wrangler

This rotor is designed to replace worn or damaged disc brake rotors on these Jeep models, restoring braking efficiency and safety.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Reduced braking performance due to worn or warped rotors
• Brake noise and vibration caused by uneven rotor surfaces
• Overheating and brake fade during heavy use
• Compatibility issues with OEM brake components

Installation Notes and Tips

• Ensure the rotor thickness is above the discard thickness of 0.894 inches (22.700 mm) before installation
• Clean the hub surface and mounting area to prevent rotor runout
• Use proper torque specifications for the five lug studs (0.630 inch diameter)
• Check for ABS tone ring compatibility as this rotor does not include one
• Inspect brake pads and replace if necessary to ensure optimal braking performance

Quality Assurance and Warranty

Centric GCX Elemental Protection Disc Brake Rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating on both the disc and hat surfaces provides enhanced corrosion resistance, contributing to longer rotor life. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Refer to Centric's official warranty policy for complete information.
