Home› Brake > Drums and Rotors› Centric 320.67048F Disc Brake Rotor - Front
Centric 320.67048F Disc Brake Rotor - FrontOE Quality 60-Day Returns

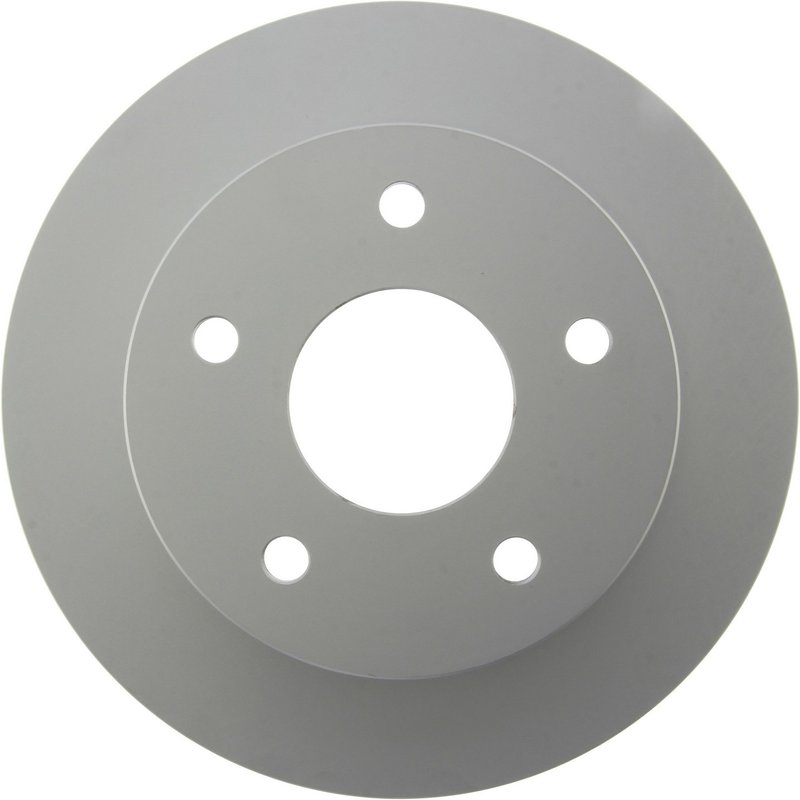

Centric 320.67048F Disc Brake Rotor - Front - view 1
Centric 320.67048F Disc Brake Rotor - Front - view 2
Centric 320.67048F Disc Brake Rotor - Front - view 3
Centric 320.67048F Disc Brake Rotor - Front - view 4
Centric 320.67048F Disc Brake Rotor - Front - view 5
Part #: 320.67048F

Centric 320.67048F Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
⚙️ 4 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$57.37Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
🚗Fitment: Dodge, Ram 1500 and Ramcharger
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.67048F Disc Brake Rotor - Front
BrandCentric
Part Number320.67048F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Discard Thickness1.118
Discard Thickness28.390
Nominal Thickness1.181
Nominal Thickness30.000
Disc FinishFully coated
Hat FinishCoated
Overall Height2.748
Overall Height69.800
Outside Diameter11.969
Outside Diameter304.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter3.142
Center Hole Diameter79.800
Mounting Bolt Hole Circle Diameter139.700
Mounting Bolt Hole Circle Diameter5.500
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.630
Stud/Lug Hole Diameter16.000
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]0
Vane Style [cntrc]Straight
Weight [cntrc] kgs9.200
Weight [cntrc] lbs20.250

This part fits 4 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2001DodgeRam 1500RWDFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2001DodgeRamchargerFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2000DodgeRam 1500RWDFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2000DodgeRamchargerFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
