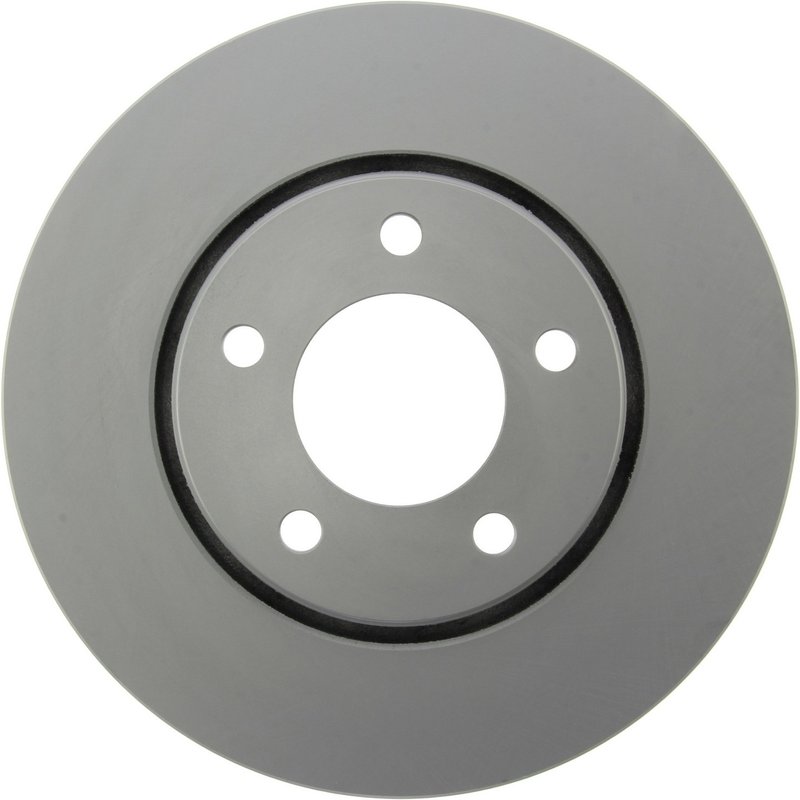

Centric 320.67049F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.67049F, is built for front axle service on select Chrysler and Dodge minivans. It is a fully coated, vented rotor with a smooth surface and application-specific metallurgy for OE-style braking performance and corrosion resistance.

Fits 2001-2008 Chrysler Voyager, front; Fits 1998 Chrysler Voyager, front; Fits 2001-2007 Chrysler Town & Country, front; Fits 2001-2007 Dodge Caravan, front; Fits 2001-2007 Dodge Grand Caravan, front.

Key Features

• Fully coated disc finish with coated hat for added rust and corrosion protection
• RS200 coating on non-mating surfaces for long-term appearance and surface protection
• Vented rotor design with straight vane style for front brake applications
• Smooth friction surface for consistent pad contact
• Application-specific metallurgy matched to OEM-style material profiles
• Part number 320.67049F for accurate catalog lookup and replacement matching

Product Details

Centric’s GCX Elemental Protection line is engineered to match OE braking characteristics while adding a protective coating system for exposed surfaces. This rotor uses a 11.063 in. outside diameter, 1.102 in. nominal thickness, 0.996 in. discard thickness, and a 5-lug, 4.500 in. bolt circle layout. The floating mounting design and 73.4 mm center hole support direct-fit front brake service on the listed Chrysler Voyager, Chrysler Town & Country, Dodge Caravan, and Dodge Grand Caravan applications. Part number 320.67049F is also cross-referenced with Raybestos Brakes 780037FZN and 780049FZN for the same application.

Common Brake Issues This Rotor Can Address

• Front brake rotor rust on exposed surfaces
• Brake pulsation caused by worn or out-of-spec rotors
• Uneven pad contact from surface wear
• Noisy braking from damaged or corroded rotor faces
• Reduced braking consistency on aging front brake components

Installation Notes

Verify rotor diameter, center hole, bolt circle, and front position before installation. Clean the hub mounting surface thoroughly to help prevent runout concerns, and inspect pads and calipers at the same time for even wear. The coated surfaces should remain intact on non-mating areas; avoid contaminating the friction surface during handling. Confirm fitment by year, make, model, and front position before ordering part number 320.67049F.

Quality Assurance

Centric designs GCX rotors to align with OEM performance targets and uses coated protection on non-mating surfaces to help resist rust and corrosion over time. The brand’s application-specific metallurgy is selected to match the vehicle’s original material profile for consistent service life and braking feel.
