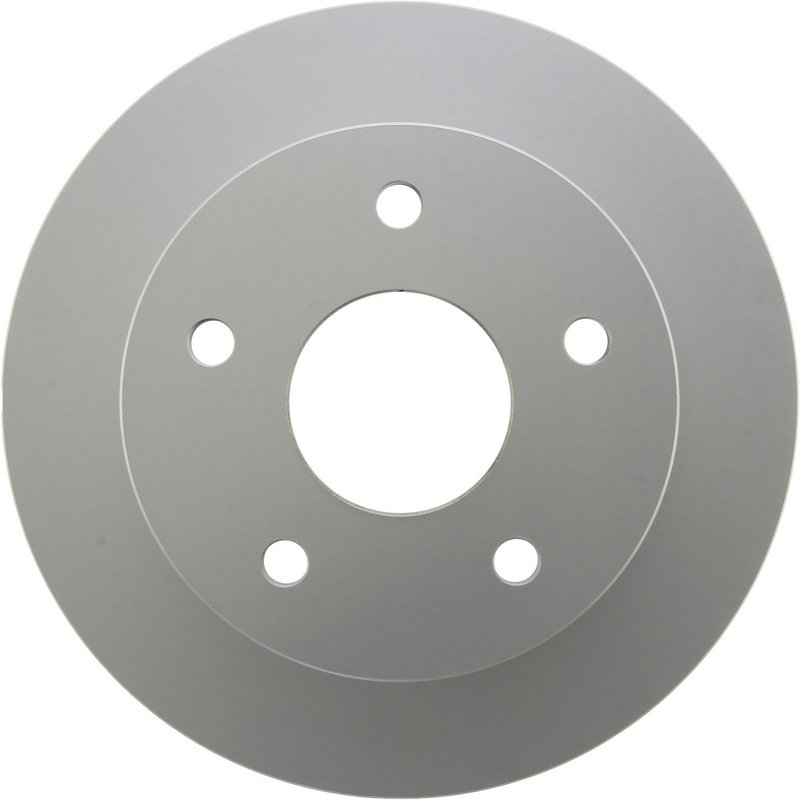

Centric 320.67050F Disc Brake Rotor - Front
Centric GCX Front Brake Rotor for Ram 1500
The Centric GCX Elemental Protection Disc Brake Rotor is built for OE-style braking performance with added resistance to rust and corrosion. This fully coated, vented front rotor is engineered for 2000-2001 Dodge Ram 1500 applications and uses Centric’s application-specific metallurgy and coating approach for a precise fit.
Key Features
- Fits 2000-2001 Dodge Ram 1500, front
- Part number 320.67050F
- Fully coated disc finish with coated hat for corrosion resistance
- Vented rotor design with smooth surface type
- Outside diameter: 12.106 in. (307.500 mm)
- Nominal thickness: 1.181 in. (30.000 mm); discard thickness: 1.118 in. (28.390 mm)
- 5-lug pattern with 5.500 in. bolt circle and 3.091 in. center hole
- Straight vane style and floating disc mounting
Product Details
Centric GCX rotors are designed around vehicle-specific metallurgy and coating patterns to match OEM brake requirements. For this Ram 1500 front brake rotor application, the fully coated finish helps protect non-mating surfaces from corrosion while the vented construction supports heat management during repeated stops. The 320.67050F is a direct-fit disc brake rotor for drivers replacing worn or rusted front rotors on a 2000-2001 Dodge Ram 1500.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Rotor Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Visible rust on the rotor hat and non-friction surfaces
- Reduced braking consistency from worn front rotors
- Noise related to uneven rotor surfaces
- Service replacement for a damaged or below-spec front rotor
Installation Notes and Tips
Verify rotor dimensions, hub condition, and wheel fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake issues, and inspect pads and calipers at the same time for even wear. This rotor is listed for the front position on 2000-2001 Dodge Ram 1500 models.
Quality Assurance
Centric states that GCX rotors are engineered to align with OE performance targets and use advanced corrosion-protection coatings on non-mating surfaces. The brand also notes application-specific metallurgy to match OEM rotor profiles for the vehicle.
| Brand | Centric |
|---|---|
| Part Number | 320.67050F |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front |
| Discard Thickness | 1.118 |
| Discard Thickness | 28.390 |
| Nominal Thickness | 1.181 |
| Nominal Thickness | 30.000 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 2.894 |
| Overall Height | 73.500 |
| Outside Diameter | 12.106 |
| Outside Diameter | 307.500 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.091 |
| Center Hole Diameter | 78.500 |
| Mounting Bolt Hole Circle Diameter | 139.700 |
| Mounting Bolt Hole Circle Diameter | 5.500 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.626 |
| Stud/Lug Hole Diameter | 15.900 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 9.520 |
| Weight [cntrc] lbs | 20.950 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2001 | Dodge | Ram 1500 | 4WD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
| 2000 | Dodge | Ram 1500 | 4WD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
