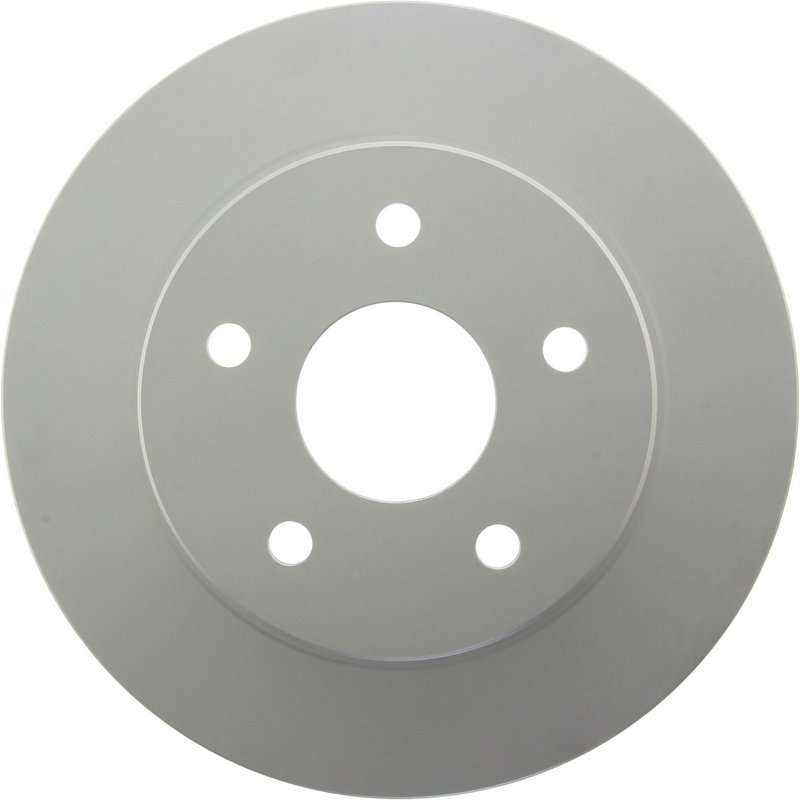

Centric 320.67053F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for Chrysler, Dodge, and Ram vehicles. Designed with a fully coated finish, these rotors offer enhanced corrosion resistance and durability for long-lasting use.

• Part Number: 320.67053F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with straight vane style for improved heat dissipation
• Nominal thickness of 1.102 inches (28.000 mm) and discard thickness of 1.039 inches (26.400 mm)
• Outside diameter of 13.228 inches (336.000 mm)
• Floating disc mounting and smooth surface type
• Compatible with 5 lug/stud holes, 0.669 inch (17.000 mm) diameter
• Overall height of 2.650 inches (67.300 mm)
• Weight approximately 26.1 lbs (11.84 kgs)

Detailed Product Description

This Centric GCX Elemental Protection Disc Brake Rotor features a fully coated disc and hat finish that helps prevent rust and corrosion, extending the rotor's service life. The vented rotor design with straight vanes enhances airflow, allowing for better heat dissipation during braking. This helps maintain consistent braking performance and reduces the risk of brake fade under heavy use. The rotor's floating disc mounting design allows for slight movement to accommodate thermal expansion and contraction, improving overall rotor durability.

With a nominal thickness of 1.102 inches and a discard thickness of 1.039 inches, this rotor meets OEM specifications for thickness and wear limits. The smooth surface finish ensures even pad contact and braking efficiency. The rotor is designed with a 5-lug hole pattern and a mounting bolt hole circle diameter of 5.5 inches (139.7 mm), making it compatible with select Chrysler, Dodge, and Ram models including Ram 1500, Ram 1500 Classic, Dakota, Durango, Aspen, and 4000 series trucks.

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating product line focuses on providing rotors with enhanced corrosion resistance through a full coating process. This coating protects both the braking surface and the rotor hat, which are common areas for rust buildup. This line is engineered to meet or exceed OEM standards, offering a balance of durability and performance for vehicles that require reliable braking components in various driving conditions.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Corrosion damage on original rotors affecting braking efficiency
• Brake fade due to insufficient heat dissipation in heavy-duty use
• Uneven pad wear caused by rotor surface imperfections
• Noise or vibration related to rotor mounting or surface condition

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (1.039 inches) before installation
• Clean mounting surfaces to prevent uneven rotor seating
• Torque lug nuts to manufacturer specifications for proper fitment
• Check compatibility with ABS systems; this rotor does not include an ABS tone ring
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

Centric rotors are manufactured to meet strict quality standards and OEM specifications. The full coating process provides additional protection against corrosion, contributing to longer rotor life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always refer to the product packaging or manufacturer documentation for exact warranty terms.
