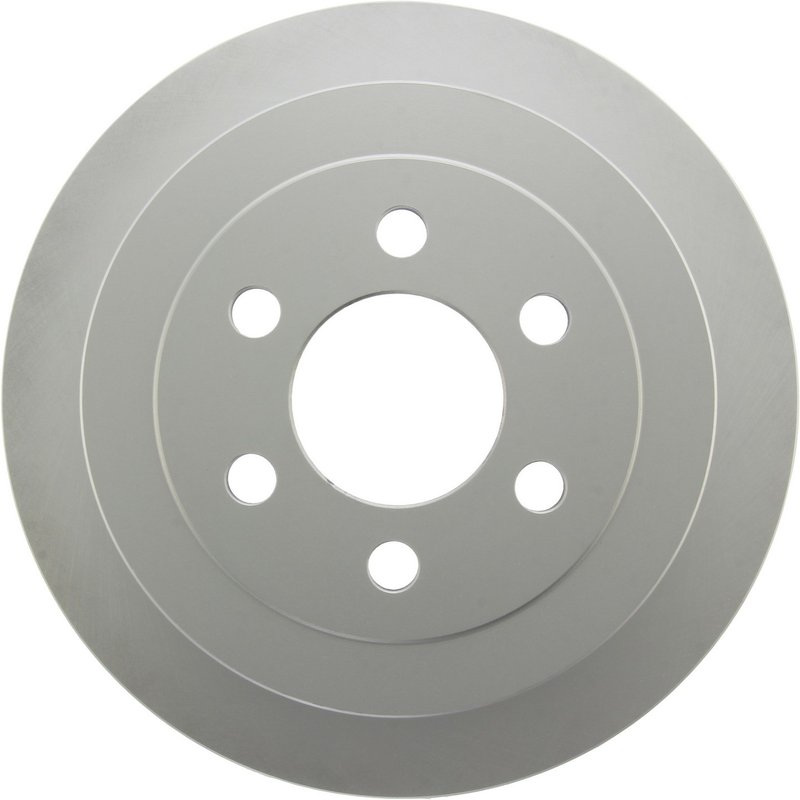

Centric 320.67058F Disc Brake Rotor - Rear

Centric GCX Rear Rotor for Dakota

Centric GCX Elemental Protection Disc Brake Rotor, part number 320.67058F, is built for rear brake service on 2003-2004 Dodge Dakota applications. It combines OE-style fitment with a fully coated finish to help resist rust on exposed surfaces while maintaining the braking surface needed for consistent contact.

Key Features

• Fits 2003-2004 Dodge Dakota, rear
• Part number 320.67058F
• Fully coated disc finish with coated hat for corrosion resistance on non-mating surfaces
• Solid rotor design with smooth surface type
• Outside diameter: 12.276 in. (311.800 mm)
• Nominal thickness: 0.587 in. (14.900 mm); discard thickness: 0.531 in. (13.500 mm)
• 6-lug pattern with 4.500 in. bolt circle and 2.835 in. center hole
• Application-specific GCX metallurgy matched to OEM-style material profiles

Product Details

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is engineered to match OE performance while adding protection against rust and corrosion on the rotor’s non-mating surfaces. Centric uses application-specific coating patterns and metallurgy to align the rotor with the brake pad friction type and the vehicle’s original material profile. For Dakota owners searching for a rear brake rotor for 2003-2004 Dodge Dakota or a Centric 320.67058F rear rotor, this part is built around the dimensions and mounting details needed for direct replacement service.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Rear rotor rust on exposed surfaces
• Brake pulsation from rotor wear or thickness loss
• Uneven braking feel caused by worn rotor surfaces
• Noise or vibration during rear brake operation
• Need for an OE-style replacement rotor for Dodge Dakota rear brake service

Installation Notes

Verify rotor diameter, center hole, bolt circle, and thickness before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, caliper hardware, and parking brake components at the same time. This rotor is a solid, rear-mounted disc brake rotor for 2003-2004 Dodge Dakota applications.

Quality Assurance

Centric designs the GCX line to match OE performance targets and uses coated non-mating surfaces to help maintain appearance and corrosion resistance over time. Part number 320.67058F is part of Centric’s application-specific rotor catalog for broad vehicle coverage.
