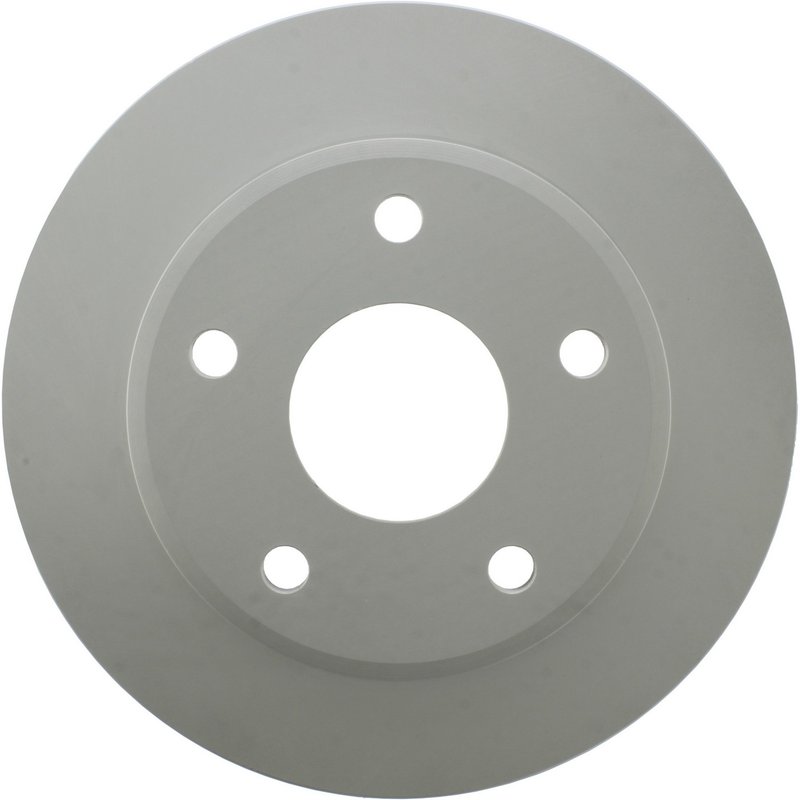

Centric 320.67065F Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.67065F, is a front vented rotor built to match OE performance while adding corrosion resistance on non-mating surfaces. It is a fitment-based replacement for select Dodge Dakota, Ram Dakota, and Mitsubishi Raider front brake applications.

Centric’s GCX Full Coating line uses an RS200 protective finish and application-specific metallurgy to align rotor construction with the vehicle’s original brake requirements. For drivers searching for a front brake rotor for 2005-2011 Dodge Dakota or 2006-2009 Mitsubishi Raider, 320.67065F provides a direct replacement option with a fully coated disc finish and coated hat.

Key Features

• Part number: 320.67065F
• Front disc brake rotor with vented construction
• Fully coated disc finish and coated hat finish
• Smooth surface type for OE-style braking contact
• Outside diameter: 311.8 mm (12.276 in.)
• Nominal thickness: 28.0 mm (1.102 in.)
• Discard thickness: 26.0 mm (1.024 in.)
• 5-lug design with 139.5 mm bolt circle
• Center hole diameter: 78.4 mm (3.087 in.)
• Pillar vane style and floating disc mounting

Product Line Details

Centric GCX Elemental Protection Disc Brake Rotors are engineered for OE-style fit and finish with added rust and corrosion protection on exposed surfaces. The GCX FC full coating version extends that protection across the rotor’s non-mating areas, helping preserve appearance and surface integrity over time. Centric also matches rotor metallurgy to the vehicle platform, using enhanced carbon or high carbon alloy formulations where specified.

Fitment

• Fits 2009-2011 Dodge Dakota, front; Phenolic Piston Calipers; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Fits 2011 Ram Dakota, front; Phenolic Piston Calipers; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Fits 2009 Mitsubishi Raider, front; Phenolic Piston Calipers; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Fits 2005-2008 Dodge Dakota, front; Replace Phenolic Piston Calipers in Pairs; Upgrade to Steel Piston Front Calipers; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
• Fits 2006-2008 Mitsubishi Raider, front; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

Common Uses

• Front rotor replacement for worn or below-spec brake discs
• Correction of brake pulsation caused by rotor wear or thickness variation
• Replacement for rusted or heavily corroded front rotors
• Restoration of OE-style braking feel on Dodge Dakota and Mitsubishi Raider models
• Service repair for vehicles requiring a 5-lug, vented front rotor

Installation Notes

Verify rotor dimensions, hub fit, and caliper configuration before installation. This rotor is listed for front applications only and includes fitment notes for phenolic piston calipers on select Dodge Dakota and Ram Dakota models. For 2005-2008 Dodge Dakota applications, follow the listed caliper guidance during brake service. Clean the hub mounting surface before installing the rotor to help prevent runout-related issues.

Quality Assurance

Centric designs the GCX line to align with OE performance targets while improving protection against rust and corrosion on non-mating surfaces. The application-specific coating pattern and metallurgy are intended to match the vehicle’s brake system requirements for consistent service life and appearance.
