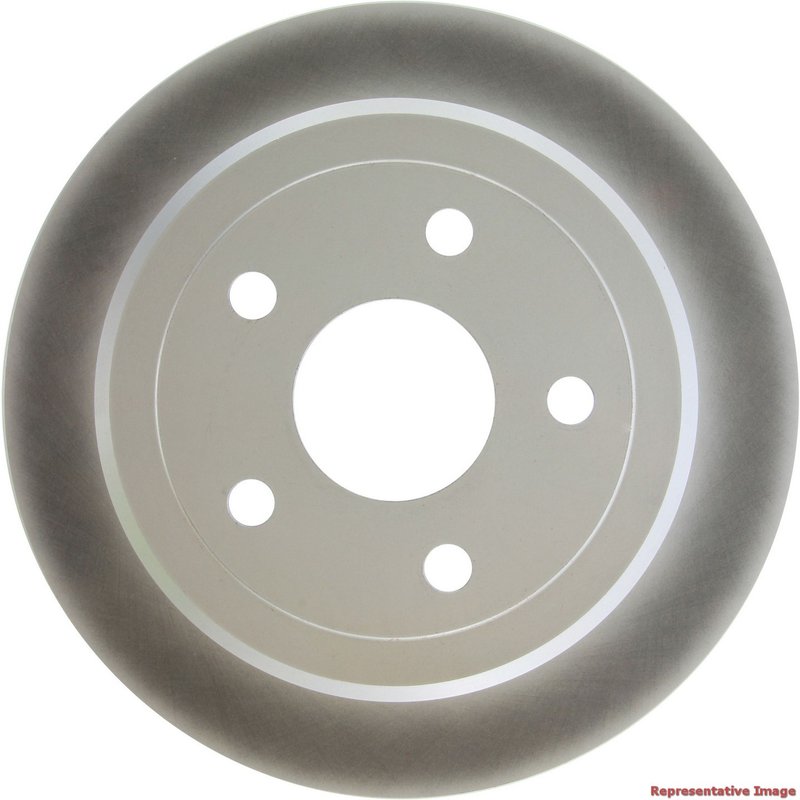

Centric 320.67067F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotor

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.67067F) is designed specifically for Jeep Wrangler and Wrangler JK models. This solid, fully coated rotor offers reliable braking performance while providing enhanced corrosion resistance for extended durability.

• Compatible with Jeep Wrangler and Wrangler JK
• Part Number: 320.67067F
• Solid disc brake rotor with smooth surface finish
• Fully coated disc and hat for corrosion protection
• Nominal thickness: 0.472 inches (12.000 mm)
• Discard thickness: 0.409 inches (10.400 mm)
• Outside diameter: 12.441 inches (316.000 mm)
• Overall height: 3.012 inches (76.500 mm)
• Floating disc mounting design
• 5 stud/lug holes with 5.000 inch bolt circle diameter

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a full protective coating on both the disc and hat surfaces. This coating helps reduce rust and corrosion, which is especially beneficial for vehicles like the Jeep Wrangler that are often exposed to harsh environments. The solid rotor design with a smooth surface ensures consistent braking performance and easy pad bedding.

Technical Specifications and Features

This rotor features a nominal thickness of 0.472 inches (12.000 mm) and a discard thickness of 0.409 inches (10.400 mm), ensuring it meets OEM standards for safe operation. The outside diameter measures 12.441 inches (316.000 mm), and the overall height is 3.012 inches (76.500 mm). It includes a floating disc mounting design and 5 lug holes with a 5.000 inch bolt circle diameter, matching the factory specifications for Jeep Wrangler and Wrangler JK models. The rotor does not include an ABS tone ring or bearings.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Jeep Wrangler and Wrangler JK
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Helps prevent rust and corrosion in off-road or wet conditions
• Restores proper braking performance and pedal feel
• Suitable for vehicles requiring solid, smooth finish rotors

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 0.409 inches before installation. Clean the hub surface to prevent runout and ensure proper rotor seating. Use proper torque specifications for the 5 lug nuts on the 5.000 inch bolt circle diameter. Since this rotor does not include bearings or an ABS tone ring, verify compatibility with your vehicle’s existing components. The floating disc mounting design allows for slight movement to reduce stress and improve rotor life.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The full coating on both the disc and hat surfaces provides enhanced corrosion resistance, contributing to longer service life. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
