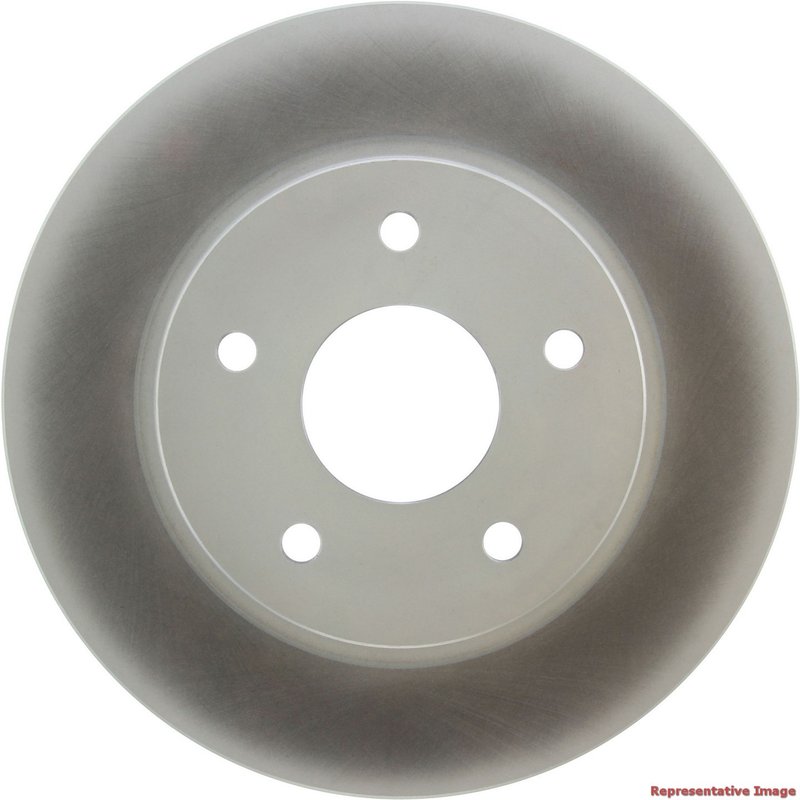

Centric 320.67071F Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Chrysler, Dodge, Ram, and Volkswagen

The Centric GCX Elemental Protection Disc Brake Rotor - Full Coating (part number 320.67071F) is engineered to provide consistent braking performance for select Chrysler, Dodge, Ram, and Volkswagen vehicles. Designed with a fully coated finish, this solid rotor offers durability and corrosion resistance for long-lasting use.

• Fully coated disc and hat finish for enhanced corrosion protection
• Solid rotor design with smooth surface for reliable braking
• Nominal thickness of 0.465 inches (11.8 mm) and discard thickness of 0.409 inches (10.4 mm)
• Outside diameter of 12.008 inches (305 mm) suitable for specific vehicle models
• Floating disc mounting and 5 lug holes with 0.551 inch (14 mm) diameter
• Compatible with Chrysler C/V, Dodge Grand Caravan, Journey, Ram Town & Country, and Volkswagen Routan

About the Centric GCX Elemental Protection Disc Brake Rotors - Full Coating Line

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This full coating helps reduce rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. The 320.67071F rotor is part of this line, offering a solid rotor design with a smooth surface finish optimized for the specified vehicle applications.

Product Specifications and Features

This rotor features a nominal thickness of 0.465 inches (11.8 mm) and a discard thickness of 0.409 inches (10.4 mm), ensuring it meets safety and performance standards. The overall height measures 1.315 inches (33.4 mm), and the outside diameter is 12.008 inches (305 mm). It includes a floating disc mounting system and five lug holes with a diameter of 0.551 inches (14 mm), designed to fit the mounting bolt hole circle diameter of 5 inches (127 mm). The center hole diameter is 2.854 inches (72.5 mm), matching the hub specifications of compatible vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Chrysler C/V and Dodge Grand Caravan
• Addressing brake noise and vibration issues in Dodge Journey and Ram Town & Country
• Improving braking consistency on Volkswagen Routan models
• Corrosion resistance to prevent rust buildup in humid or salty environments
• Maintaining proper rotor thickness to ensure safe braking performance

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor 320.67071F, ensure the rotor surface is clean and free of debris. Verify the rotor thickness before installation to confirm it is above the discard thickness of 0.409 inches (10.4 mm). Use proper torque specifications for the 5 lug bolts with 0.551 inch (14 mm) diameter holes. This rotor does not include an ABS tone ring or bearings, so reuse existing components if applicable. Proper bedding-in procedures after installation will help optimize braking performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications, ensuring reliable fit and function. The full coating on both the disc and hat surfaces provides enhanced corrosion resistance. While specific warranty details for part number 320.67071F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or Centric directly for exact warranty terms.
