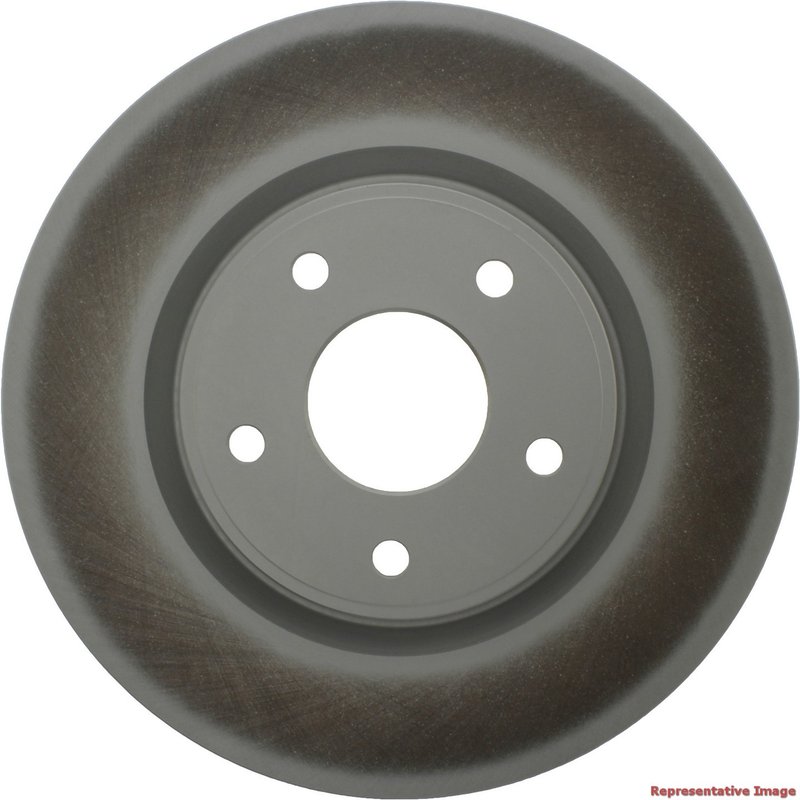

Centric 320.67074F Disc Brake Rotor - Front

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating provide reliable braking performance for select Chrysler, Dodge, Ram, and Volkswagen vehicles. Designed with a fully coated finish, these rotors offer enhanced corrosion resistance and durability for long-lasting use.

• Part Number: 320.67074F
• Fully coated disc and hat finish for corrosion protection
• Vented rotor design with pillar-style vanes for improved heat dissipation
• Nominal thickness of 1.098 inches (27.9 mm) and discard thickness of 1.039 inches (26.4 mm)
• Outside diameter of 12.992 inches (330 mm) suitable for specific vehicle applications
• Floating disc mounting and smooth surface type
• 5 lug holes with a 5.0 inch (127 mm) bolt circle diameter
• Compatible with Chrysler, Dodge, Ram, and Volkswagen models including Grand Caravan, Journey, Pacifica, Routan, Town & Country, Voyager, and C/V

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a complete protective coating on both the disc and hat surfaces. This full coating helps prevent rust and corrosion, extending rotor life and maintaining consistent braking performance. The vented design with pillar vanes enhances cooling efficiency, which is critical for vehicles like the Dodge Journey and Chrysler Pacifica that may experience varied driving conditions.

Technical Specifications and Features

This disc brake rotor features a nominal thickness of 1.098 inches (27.9 mm) and a discard thickness of 1.039 inches (26.4 mm), ensuring safe replacement intervals. The rotor’s overall height measures 1.516 inches (38.5 mm), and it has an outside diameter of 12.992 inches (330 mm). The vented rotor design with pillar-style vanes improves heat dissipation, reducing the risk of brake fade during extended use. The smooth surface finish supports consistent pad contact and braking efficiency. The rotor mounts using a floating disc system and includes five lug holes with a 5.0 inch (127 mm) bolt circle diameter, compatible with the specified vehicle models.

Compatible Vehicles and Applications

• Chrysler Grand Caravan
• Dodge Journey
• Ram C/V
• Volkswagen Routan
• Chrysler Pacifica, Town & Country, Voyager

This rotor is designed specifically for these models, ensuring proper fitment and performance when replacing worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake rotor corrosion and rust buildup
• Reduced braking efficiency due to rotor warping or wear
• Brake noise caused by uneven rotor surfaces
• Overheating and brake fade during extended braking
• Vibration or pulsation felt through the brake pedal

Installation Notes and Tips

When installing the Centric GCX Elemental Protection Disc Brake Rotor 320.67074F, ensure the rotor thickness is above the discard thickness of 1.039 inches (26.4 mm). Clean the hub surface before mounting to prevent runout. Use proper torque specifications for the 5 lug bolts on the 5.0 inch (127 mm) bolt circle. Since this rotor does not include bearings or an ABS tone ring, verify compatibility with your vehicle’s braking system. It is recommended to replace brake pads simultaneously for optimal braking performance.

Quality Assurance and Warranty

Centric provides rotors manufactured to meet or exceed OEM specifications, with a fully coated finish to resist corrosion. While specific warranty details for part number 320.67074F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
