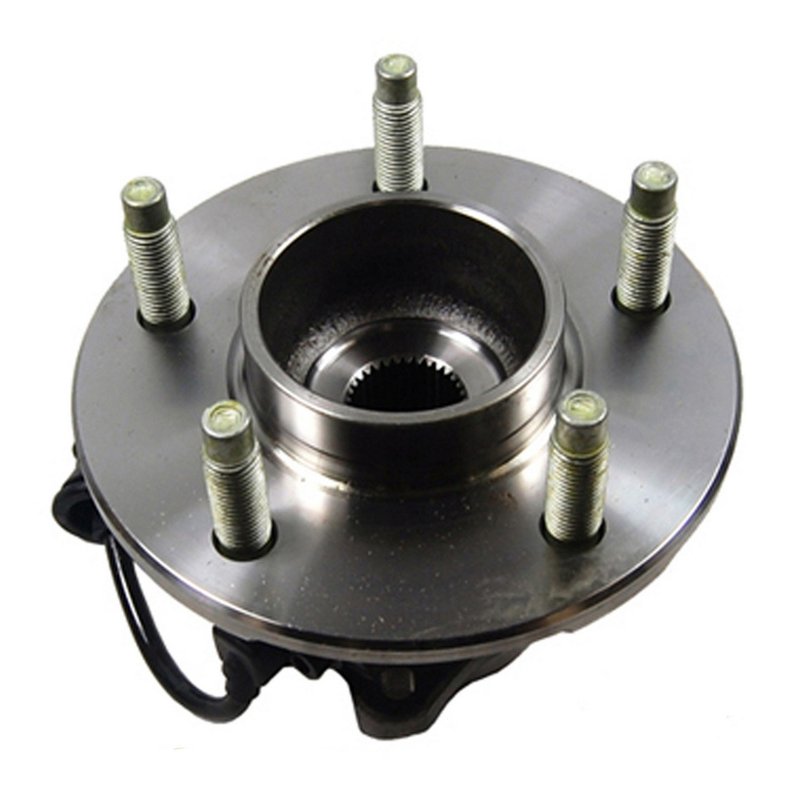

Centric 402.62012E Wheel Bearing and Hub Assembly - Rear
| Brand | Centric 402.62012E |
|---|---|
| Position | Rear |
| Bolt Circle Diameter [cntrc] in | 4.530 |
| Bolt Circle Diameter [cntrc] mm | 115.000 |
| Brake Pilot Diameter | 2.779 |
| Brake Pilot Diameter | 70.600 |
| Flange Diameter | 5.902 |
| Inner Mount Pilot [cntrc] in | 3.107 |
| Inner Mount Pilot [cntrc] mm | 78.900 |
| Mounting Hole Qty [cntrc] | 4 |
| Mouting Thread Size [cntrc] mm | 10.000 |
| Off-Set [cntrc] in | 2.556 |
| Off-Set [cntrc] mm | 64.900 |
| Spline Quantity | 33 |
| Thread Pitch to Wheel Mounting [cntrc] mm | 1.750 |
| Wheel Pilot Diameter | 2.760 |
| Wheel Pilot Diameter | 70.100 |
| Wheel Stud Quantity | 7 |
| Wheel Stud Size | 14.000 |
| Wheel Studs Included | Yes |
| Product line | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| Fits | Saturn, Chevrolet, and Pontiac · 9 vehicles |
Integral ABS design. Built as a driven hub assembly with integrated ABS sensing.
Extended service life. Made from high-quality materials for lasting performance.
Wheel studs included. Ready for a more complete hub repair.
Cross-references Mevotech Supreme H512229, MOOG Hub Assemblies 512229 and Quality-Built WH512229 for the same application. See all 20.
Rear Wheel Hub Assembly for Saturn Vue, Equinox, Torrent
Centric C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies part number 402.62012E is a rear driven hub assembly with integral ABS. It is built from high-quality materials for extended service life and is engineered for automotive and light truck wheel hub applications.
C-TEK Standard Hub Line
The Centric C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies line focuses on direct-fit replacement hubs and bearings for everyday service work. This 402.62012E hub follows the C-TEK standard driven hub format and is specified for rear applications with ABS integration.
Key Features
- Rear wheel bearing and hub assembly with integral ABS
- 33-spline driven hub design
- 7 wheel studs included
- 14 mm wheel stud size with 1.750 mm wheel mounting thread pitch
- 115 mm bolt circle diameter
- 70.1 mm wheel pilot diameter and 70.6 mm brake pilot diameter
- 78.9 mm inner mount pilot and 64.9 mm offset
- 4 mounting holes with 10 mm mounting thread size
Fitment
- Fits 2002-2007 Saturn Vue, rear
- Fits 2005-2006 Chevrolet Equinox, rear
- Fits 2006 Pontiac Torrent, rear
What This Hub Assembly Helps Address
- Rear wheel bearing noise or growling
- ABS warning light concerns related to the hub sensor interface
- Wheel looseness or excessive hub play
- Uneven wheel rotation caused by worn hub components
- Rear-end vibration traced to hub wear
Installation Notes
Verify spline count, bolt circle, pilot diameters, and mounting dimensions before installation. This part number 402.62012E is for rear use on the listed Saturn Vue, Chevrolet Equinox, and Pontiac Torrent applications. Confirm ABS connector and driveline configuration against the original hub assembly before replacement.
Quality Assurance
Centric manufactures this C-TEK Standard hub assembly using materials selected for extended service life and consistent fitment in standard replacement service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Saturn | Vue | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| 2006 | Chevrolet | Equinox | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| 2006 | Pontiac | Torrent | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| 2006 | Saturn | Vue | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| 2005 | Chevrolet | Equinox | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| 2005 | Saturn | Vue | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| 2004 | Saturn | Vue | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| 2003 | Saturn | Vue | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
| 2002 | Saturn | Vue | Rear | C-TEK Standard Wheel Bearing Hub Repair Kits & Hub Assemblies |
