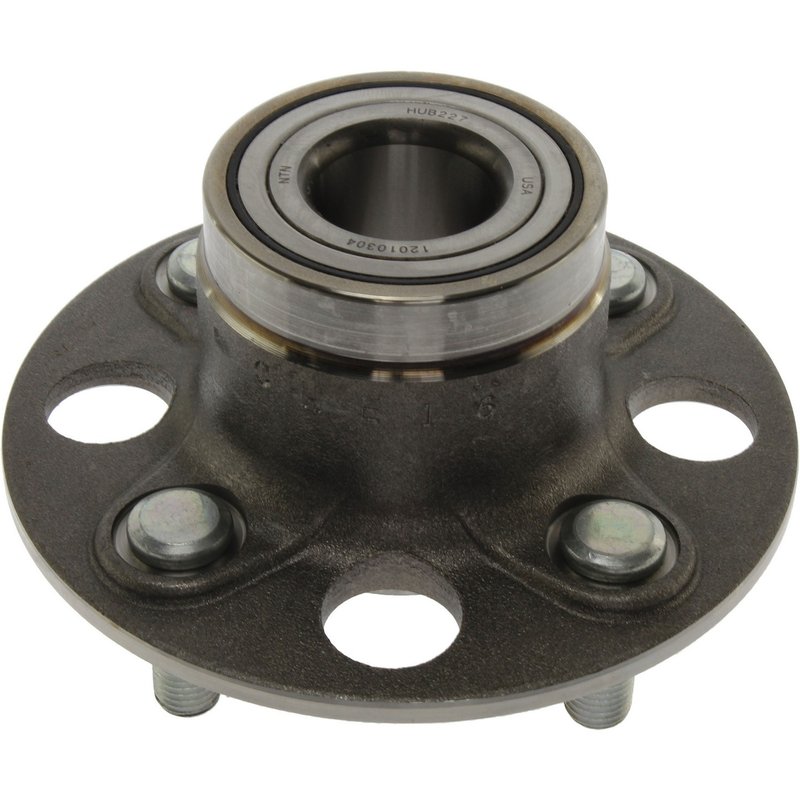

Centric 405.40011 Wheel Bearing and Hub Assembly - Rear

Centric Premium Rear Hub Assembly

Centric Premium Hubs part number 405.40011 is a rear wheel bearing and hub assembly for select 2001-2005 Honda Civic applications without ABS. Built for non-driven rear use, it is engineered with quality materials to support extended service life and consistent wheel mounting performance.

For shoppers searching for a rear wheel hub assembly for 2001-2005 Honda Civic, 405.40011 provides the fitment and dimensions needed for the specified application. Centric Premium Hubs focuses on a broad range of hub and bearing solutions, and this part number is listed for rear Civic service where ABS is not equipped.

Key Features

• Centric Premium Hubs line for wheel bearing and hub service
• Rear wheel bearing and hub assembly for non-driven applications
• Designed for 2001-2005 Honda Civic rear fitment without ABS
• 4-wheel-stud design with M12 wheel studs included
• 3.937 in. / 100 mm bolt circle diameter
• Wheel pilot diameter: 2.200 in. / 55.880 mm
• Brake pilot diameter: 2.406 in. / 61.110 mm
• Flange diameter: 5.440 in. / 138.180 mm
• Inner mount pilot: 2.586 in. / 65.680 mm
• Wheel mounting thread pitch: 1.5

Detailed Description

Centric 405.40011 is a rear hub assembly engineered for the Honda Civic platform from 2001 through 2005. It is specified for non-ABS rear applications and uses a 4-stud, M12 wheel mounting pattern with a 100 mm bolt circle, making it a direct-fit option for the listed vehicles. The hub dimensions, pilot diameters, and flange sizing are provided to match the required rear wheel bearing and hub interface on the application.

Centric Premium Hubs are positioned as a service line for wheel hubs and bearings, with emphasis on material quality and service life. This part number, 405.40011, is also referenced across the aftermarket under several cross-reference numbers for the same application, including MOOG 512174 and SKF BR930254.

What It Helps Address

• Rear wheel bearing noise on a 2001-2005 Honda Civic
• Excessive wheel play or looseness at the rear hub
• Uneven rear wheel rotation caused by hub wear
• Vibration or roughness from a worn rear hub assembly
• Service replacement for a non-ABS rear hub on the Civic platform

Installation Notes and Tips

Verify rear, non-ABS fitment before ordering and confirm the wheel stud pattern, pilot diameters, and flange dimensions against the original part. This assembly is listed for rear installation on 2001-2005 Honda Civic models, so matching the vehicle configuration is important for proper fit.

During installation, inspect the mating surfaces, axle or spindle interface, and surrounding brake components for wear or damage. Follow factory service procedures and torque specifications for the Honda Civic rear hub installation to help ensure correct seating and wheel mounting alignment.

Quality Assurance

Centric Premium Hubs are engineered from quality materials for extended service life, and the Premium Hubs line is built around a broad catalog of wheel hub and bearing applications. Part number 405.40011 is cataloged for the specified rear Honda Civic fitment and cross-references established aftermarket hub assemblies for the same application.
