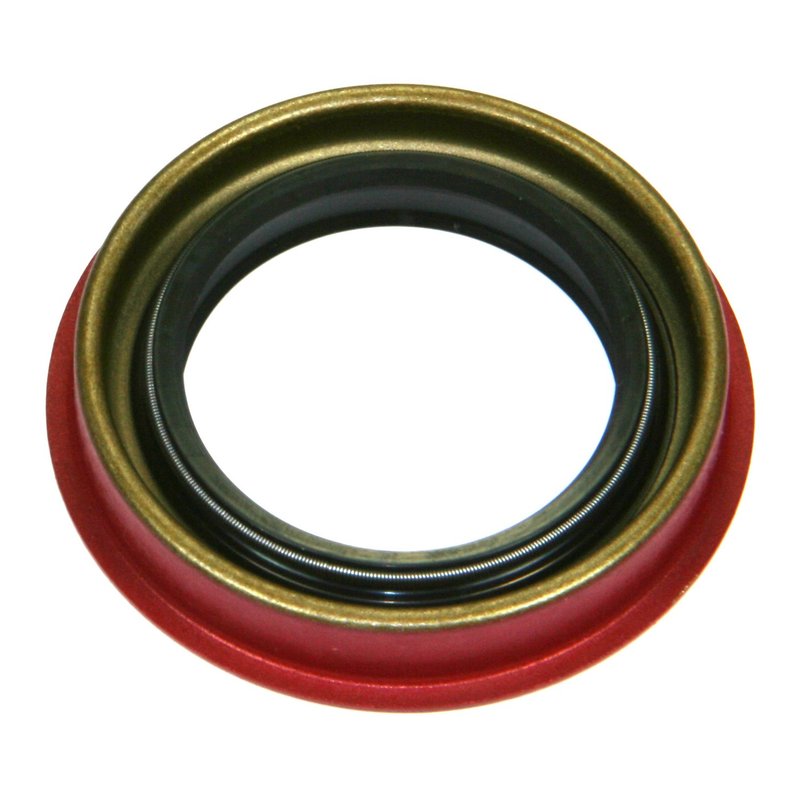

Centric 417.04004 Wheel Seal - Rear

Centric Wheel Seal for Axle and Hub Service

Centric 417.04004 is a premium wheel seal built to help retain grease or oil at the hub while keeping contaminants out. With precise dimensions and a sealing profile for bearing protection, it supports clean, stable operation in driveline and axle service.

Part of the Centric Premium Axle Shaft, Hub & Wheel Seals line, this wheel seal is focused on sealing performance for bearing assemblies and fluid separation. It is a practical choice for axle shaft, hub, and wheel-end maintenance on vehicles such as Honda Civic and Toyota Corolla applications where correct seal dimensions matter.

Key Dimensions

• Inside diameter: 1.575 in. / 40.01 mm
• Width: 0.354 in. / 8.99 mm
• Outside diameter: 2.283 in. / 57.99 mm
• Designed to retain lubricants and help exclude dirt, moisture, and other contaminants
• Supports bearing protection in grease- and oil-sealed wheel-end assemblies
• Centric part number 417.04004 for axle shaft, hub, and wheel seal replacement

Detailed Description

Centric 417.04004 is a premium grease/oil wheel seal engineered for sealing and separation duties in driveline and axle systems. Its 40.01 mm inner diameter, 57.99 mm outer diameter, and 8.99 mm width provide the dimensional reference needed when replacing a worn hub seal or servicing a bearing assembly. For technicians and DIY buyers searching for a wheel seal for Honda Civic or Toyota Corolla maintenance, this part number helps narrow the correct application quickly.

The Centric Premium Axle Shaft, Hub & Wheel Seals product line is built around sealing integrity for bearings and lubricated components. By helping keep lubricant in place and contaminants out, the seal supports smoother wheel-end operation and helps maintain separation between dissimilar fluids or gases where required. If you are cross-shopping Centric 417.04004, verify the seal dimensions against the original part before installation.

What It Helps Address

• Grease or oil leakage at the wheel hub
• Contamination entering the bearing area
• Seal wear that can affect wheel-end lubrication
• Fluid separation issues in axle or hub assemblies
• Replacement needs during axle shaft or hub service

Installation Notes and Tips

Confirm the inside diameter, outside diameter, and width against the removed seal and the vehicle service information before installation. Clean the seal bore and mating surfaces thoroughly, and inspect the bearing and hub for wear or scoring that could affect sealing performance. For fitment-based searches, this part is commonly referenced for Honda Civic and Toyota Corolla wheel seal service, but the final application should always match the measured dimensions and vehicle specifications.

Quality Assurance

Centric manufactures this seal as part of its Premium Axle Shaft, Hub & Wheel Seals line, with a focus on bearing protection and lubricant retention in driveline sealing applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
