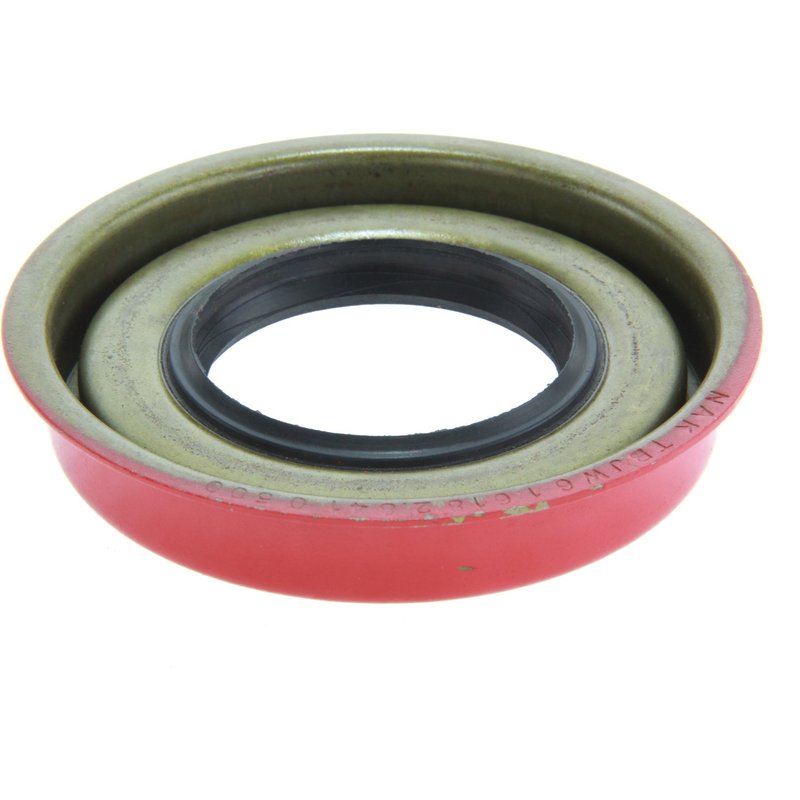

Centric 417.62001 Drive Axle Shaft Seal - Rear

Rear Axle Shaft Seal for GM Trucks and SUVs

Centric 417.62001 is a rear drive axle shaft seal built to retain gear oil and grease while keeping dirt, moisture, and other contaminants out of the axle assembly. With precise dimensions and broad rear fitment across Chevrolet, GMC, Cadillac, and related platforms, it is a practical replacement for worn or leaking axle seals.

Centric Premium Axle Shaft, Hub & Wheel Seals are part of a sealing-focused product line for driveline and wheel-end service. This seal is sized for applications that need dependable fluid retention and separation between internal lubricants and outside contaminants.

Key Features

• Part number 417.62001 rear drive axle shaft seal
• Inside diameter: 1.618 in. / 41.10 mm
• Outside diameter: 2.841 in. / 72.16 mm
• Width: 0.500 in. / 12.700 mm
• Helps retain lubricants while excluding contaminants
• Used in rear axle applications across GM trucks, SUVs, and vans

Detailed Description

Built for driveline sealing service, Centric 417.62001 helps maintain the integrity of the rear axle by sealing the shaft area where lubricant loss and contamination can lead to noise, wear, or fluid leakage. The listed dimensions support accurate replacement selection for vehicles such as Chevrolet Silverado 1500, GMC Sierra 1500, Chevrolet Tahoe, GMC Yukon, and Cadillac Escalade rear applications. If you are servicing a rear axle leak on a Chevrolet Colorado or GMC Canyon, this seal is also listed for those rear fitments.

This part cross-references National Oil Seals 417.62001 for the same application.

What It Helps Address

• Rear axle oil seepage at the shaft seal area
• Contamination entering the axle housing
• Loss of lubricant that can affect bearing and gear life
• Noise or wear related to degraded axle sealing
• Service replacement for aging rear axle seals on GM platforms

Installation Notes and Tips

Verify the inside diameter, outside diameter, and width against the original seal before installation. Confirm rear axle configuration and any application notes in the fitment list, including axle size, GVW, drum brake, disc brake, LSD, or classic-body distinctions where shown. Clean the seal bore and shaft surface thoroughly, and inspect the axle shaft and housing for grooves or damage that could affect sealing performance.

Quality Assurance

Centric Premium seals are engineered for bearing protection and fluid control in driveline service. This part is identified by Centric part number 417.62001 and is cataloged for rear applications across a wide range of Chevrolet, GMC, Cadillac, Buick, Hummer, Isuzu, Oldsmobile, and Saab vehicles.

• Fits 2015-2021 Chevrolet Colorado, Rear
• Fits 2004-2012 Chevrolet Colorado, Rear
• Fits 2015-2021 GMC Canyon, Rear
• Fits 2004-2012 GMC Canyon, Rear
• Fits 2002-2020 Cadillac Escalade, Rear
• Fits 1999-2000 Cadillac Escalade, Rear
• Fits 2003-2020 Cadillac Escalade ESV, Rear
• Fits 1995-2020 Chevrolet Tahoe, Rear
• Fits 1992-2020 GMC Yukon, Rear
• Fits 2015-2020 GMC Yukon XL, Rear
• Fits 2019 Chevrolet Silverado 1500, Rear, Old Body Style
• Fits 2019 GMC Sierra 1500, Rear, Old Body Style
• Fits 2008-2018 Chevrolet Silverado 1500, Rear
• Fits 1999-2001 Chevrolet Silverado 1500, Rear
• Fits 2008-2018 GMC Sierra 1500, Rear
• Fits 1999-2001 GMC Sierra 1500, Rear
• Fits 1996-2014 Chevrolet Express 1500, Rear
• Fits 2001-2014 Chevrolet Suburban 1500, Rear
• Fits 1996-2014 GMC Savana 1500, Rear
• Fits 2000-2014 GMC Yukon XL 1500, Rear
• Fits 2002-2013 Cadillac Escalade EXT, Rear
• Fits 2007-2013 Chevrolet Avalanche, Rear
• Fits 2006-2010 Hummer H3, Rear
• Fits 2009-2010 Hummer H3T, Rear
• Fits 2002-2009 Chevrolet Trailblazer, Rear
• Fits 2002-2009 GMC Envoy, Rear
• Fits 2005-2009 Saab 9-7x, Rear
• Fits 2003-2008 Isuzu Ascender, Rear
• Fits 2007-2008 Isuzu i-290, Rear
• Fits 2007-2008 Isuzu i-370, Rear
• Fits 2004-2007 Buick Rainier, Rear
• Fits 2007 Chevrolet Silverado 1500, Rear, New Silverado GMT 900
• Fits 2007 Chevrolet Silverado 1500, Rear, 8 5/8" Axle; Classic GMT 800
• Fits 2007 Chevrolet Silverado 1500, Rear, 6400lb GVW; Classic GMT 800
• Fits 2007 Chevrolet Silverado 1500 Classic, Rear, New Silverado GMT 900
• Fits 2007 Chevrolet Silverado 1500 Classic, Rear, 8 5/8" Axle; Classic GMT 800
• Fits 2007 Chevrolet Silverado 1500 Classic, Rear, 6400lb GVW; Classic GMT 800
• Fits 2007 GMC Sierra 1500, Rear, New Sierra GMT 900
• Fits 2007 GMC Sierra 1500 Classic, Rear, 8 5/8" Axle; Classic GMT 800; Front Caliper Bracket Cast # 2851C/286C
• Fits 2007 GMC Sierra 1500 Classic, Rear, 8 5/8" Axle; Classic GMT 800
• Fits 2007 GMC Sierra 1500 Classic, Rear, 6400lb GVW; Classic GMT 800; Front Caliper Bracket Cast # 2851C/286C
• Fits 2002-2006 Chevrolet Avalanche 1500, Rear
• Fits 2004-2006 Chevrolet Silverado 1500, Rear, 8 5/8" Axle
• Fits 2001 Chevrolet Silverado 1500, Rear, 8 5/8" Axle
• Fits 2006 Chevrolet Silverado 1500, Rear, 6400lb GVW; 8 5/8" Axle
• Fits 2003-2006 Chevrolet SSR, Rear
• Fits 2002-2006 Chevrolet Trailblazer EXT, Rear
• Fits 2002-2006 GMC Envoy XL, Rear
• Fits 2004-2006 GMC Sierra 1500, Rear, 8 5/8" Axle
• Fits 2002 GMC Sierra 1500, Rear, 8 5/8" Axle
• Fits 2006 GMC Sierra 1500, Rear, 6400lb GVW; 8 5/8" Axle
• Fits 2006 Isuzu i-280, Rear
• Fits 2006 Isuzu i-350, Rear
• Fits 2003-2005 Chevrolet Astro, Rear
• Fits 2004-2005 GMC Envoy XUV, Rear
• Fits 2003-2005 GMC Safari, Rear
• Fits 2004 Chevrolet Silverado 1500, Rear, 2 Wheel Steering; 8 5/8" Axle; exc HD Pkg
• Fits 2004 Chevrolet Silverado 1500, Rear, 2 Wheel Steering; 8 5/8" Axle; Standard Duty
• Fits 2004 GMC Sierra 1500, Rear, 2 Wheel Steering; 8 5/8" Axle; Standard Duty Susp
• Fits 2002-2004 Oldsmobile Bravada, Rear
• Fits 2002-2003 Chevrolet S10, Rear
• Fits 2002-2003 Chevrolet Silverado 1500, Rear, 2 Wheel Steering; 8 5/8" Axle
• Fits 2002-2003 GMC Sierra 1500, Rear, 2 Wheel Steering; 8 5/8" Axle
• Fits 2002-2003 GMC Sonoma, Rear
• Fits 1994-2001 Chevrolet S10, Rear, LSD
• Fits 2001 Chevrolet Silverado 1500 HD, Rear
• Fits 2001 GMC Sierra 1500 HD, Rear
• Fits 2000-2001 GMC Sonoma, Rear, LSD
• Fits 2000 Chevrolet Suburban 1500, Rear, Fits vehicles equipped with rear disc brakes.
• Fits 2000 Chevrolet Suburban 1500, Rear, Fits rear drum brakes with 11" diameter.
• Fits 1992-1999 Chevrolet C1500, Rear, 8 1/2" Rear End
• Fits 1994-1999 Chevrolet C1500 Suburban, Rear, Fits rear drum brakes with 11" diameter.
• Fits 1988-1999 Chevrolet K1500, Rear, 8 1/2" Rear End
• Fits 1994-1999 Chevrolet K1500 Suburban, Rear, 6 Lug Wheels
• Fits 1992-1999 GMC C1500, Rear, 8 1/2" Axle
• Fits 1994-1999 GMC C1500 Suburban, Rear, Fits rear drum brakes with 11" diameter.
• Fits 1994-1999 GMC K1500 Suburban, Rear, 11" Rear Drum; 6 Lug Wheels
• Fits 1995-1999 GMC Sonoma, Rear, Ltd Slip
• Fits 1988-1998 GMC K1500, Rear, 10" Rear Drum
• Fits 1992-1994 Chevrolet Blazer, Rear
• Fits 1994 GMC Sonoma, Rear, Ltd Slilp
• Fits 1992-1993 Chevrolet C1500 Suburban, Rear
• Fits 1992-1993 Chevrolet K1500 Suburban, Rear
• Fits 1992-1993 GMC C1500 Suburban, Rear
• Fits 1992-1993 GMC K1500 Suburban, Rear
• Fits 1988-1991 Chevrolet C1500, Rear, Brake Master Cylinder for Standard Chassis
• Fits 1988-1991 GMC C1500, Rear, Brake Master Cylinder for Standard Chassis
