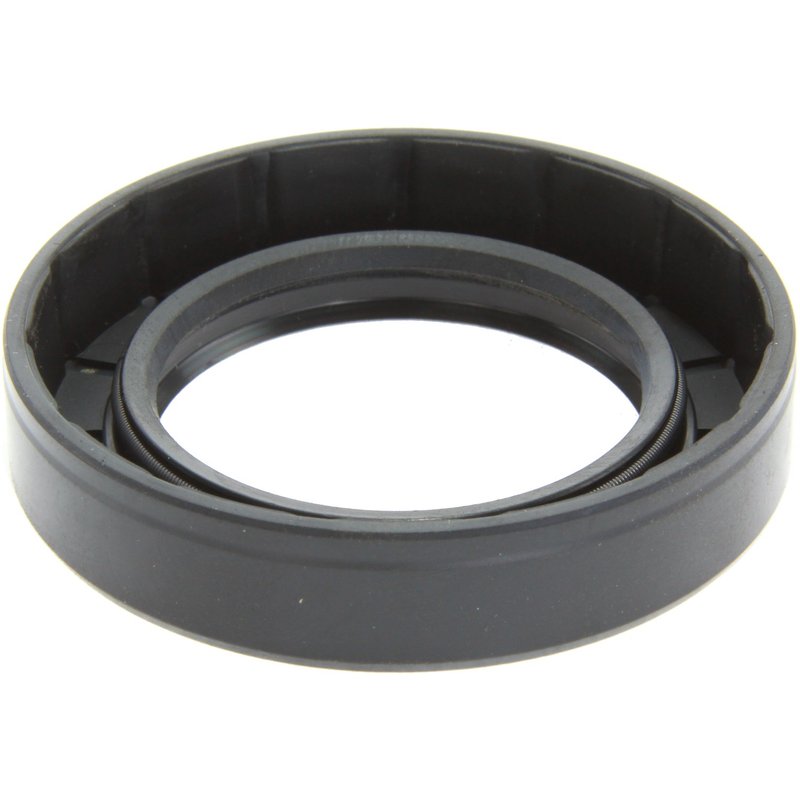

Centric 417.62033 Drive Axle Shaft Seal - Rear Right

Drive Axle Shaft Seal for Rear Right Applications

Centric 417.62033 is a premium drive axle shaft seal for rear right applications that need reliable lubricant retention and contamination control. It is built for select Chevrolet Camaro and Pontiac Firebird models with Borg Warner 9-bolt rear axle configurations.

As part of the Centric Premium Axle Shaft, Hub & Wheel Seals line, this seal supports the separation of lubricants from outside contaminants while helping maintain proper sealing at the axle shaft interface. The Centric Premium Axle Shaft, Hub & Wheel Seals product line focuses on sealing components for driveline and wheel-end service where fluid retention and bearing protection matter.

Key Features

• Part number: 417.62033
• Inside diameter: 1.654 in. / 42.01 mm
• Outside diameter: 2.555 in. / 64.90 mm
• Width: 0.531 in. / 13.490 mm
• Drive axle shaft seal for rear right placement
• Fits Borg Warner 9 Bolt RA rear axle applications noted below
• Centric Premium Axle Shaft, Hub & Wheel Seals product line

Detailed Description

Centric 417.62033 is a drive axle shaft seal engineered for rear right service on select rear axle setups. The listed dimensions help identify the correct seal for the axle housing and shaft interface, including a 1.654-inch inside diameter, 2.555-inch outside diameter, and 0.531-inch width. For buyers searching for a rear axle shaft seal for 1985-1992 Chevrolet Camaro or Pontiac Firebird with Borg Warner 9-bolt rear axle hardware, this part number provides a direct reference point.

This seal is used in applications where the axle end must retain lubricant while keeping dirt, moisture, and other contaminants out of the bearing area. It is a practical replacement choice when servicing rear axle sealing on Chevrolet Camaro and Pontiac Firebird models with the specified rear axle configuration. Part number 417.62033 may also be referenced during catalog lookup for the same application.

Vehicle Fitment

• Fits 1989-1992 Chevrolet Camaro, rear right, Borg Warner 9 Bolt RA; 1LE Perf Pkg
• Fits 1989-1992 Pontiac Firebird, rear right, Borg Warner 9 Bolt RA (G92); Perf Pkg
• Fits 1989 Pontiac Firebird, rear right, Borg Warner 9 Bolt RA (G92)
• Fits 1985-1987 Pontiac Firebird, rear right, Borg Warner 9 Bolt RA (G92)
• Fits 1987-1988 Chevrolet Camaro, rear right, Borg Warner 9 Bolt R.A. (G92)
• Fits 1988 Pontiac Firebird, rear right, Borg Warner 9 Bolt R.A. (G92); Perf Pkg

Common Issues This Seal Can Address

• Rear axle lubricant seepage at the axle shaft seal
• Contamination entering the axle bearing area
• Seal wear from age, heat, or mileage
• Service replacement during rear axle maintenance
• Leak diagnosis on Borg Warner 9-bolt rear axle assemblies

Installation Notes and Tips

Verify the axle configuration, position, and dimensions before installation. Confirm rear right placement and match the seal to the Borg Warner 9-bolt rear axle application listed for your Chevrolet Camaro or Pontiac Firebird. Inspect the sealing surface and surrounding components for wear or damage before installing the new seal.

Quality Assurance

Centric Premium Axle Shaft, Hub & Wheel Seals are positioned as premium sealing components for driveline and wheel-end service. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
