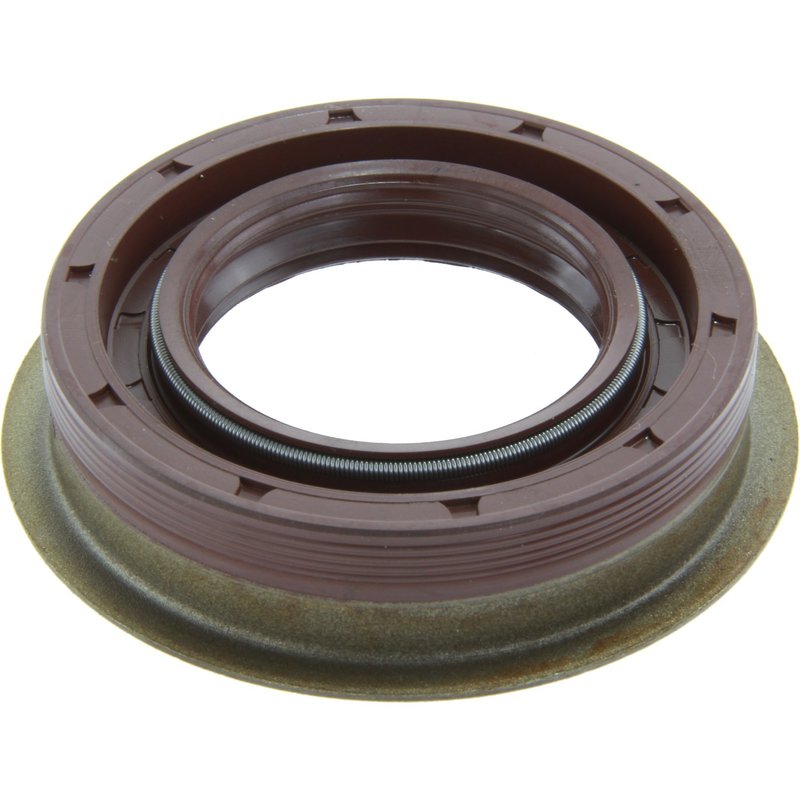

Centric 417.67007 Drive Axle Shaft Seal - Rear

Centric Rear Drive Axle Shaft Seal

Centric 417.67007 is a premium drive axle shaft seal for rear axle service, built to retain grease or oil at the bearing area while helping block dirt, moisture, and other contaminants. It is a direct-fit sealing component for select Jeep rear axle applications, including Dana 44-1HD setups.

Compatible with 1993 Jeep Grand Wagoneer, rear, and 1993-1998 Jeep Grand Cherokee, rear, this Centric Premium Axle Shaft, Hub & Wheel Seals part is sized for the specified axle service points and helps maintain proper lubricant separation in the hub and axle assembly.

Key Features

• Part number: 417.67007
• Inside diameter: 1.400 in. / 35.56 mm
• Outside diameter: 2.282 in. / 57.96 mm
• Width: 0.547 in. / 13.890 mm
• Designed for rear drive axle shaft seal applications
• Centric Premium Axle Shaft, Hub & Wheel Seals product line

Product Details

Centric Premium Axle Shaft, Hub & Wheel Seals are engineered for bearing protection and fluid control in driveline service. This seal helps retain lubricants while separating them from outside contaminants and from dissimilar fluids or gases at the sealing interface. For Jeep Grand Cherokee rear axle service and Jeep Grand Wagoneer rear axle service, 417.67007 provides the dimensional profile needed for the listed Dana 44-1HD rear axle applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Seal Can Address

• Gear oil seepage at the rear axle shaft seal area
• Contamination entering the hub or axle bearing zone
• Loss of lubricant retention around the sealing surface
• Service issues related to worn or hardened axle seals
• Noise or wear concerns tied to inadequate seal performance

Installation Notes and Tips

Verify axle configuration, seal dimensions, and the rear application before installation. Inspect the shaft surface, seal bore, and bearing area for wear, scoring, or corrosion, and replace any damaged mating surfaces as needed. Clean the sealing area thoroughly so the new seal seats evenly and maintains proper contact.

Quality Assurance

Centric’s Premium Axle Shaft, Hub & Wheel Seals line is focused on sealing performance for driveline and wheel-end service, with materials and dimensions selected to support lubricant retention and contamination control in the specified application.
