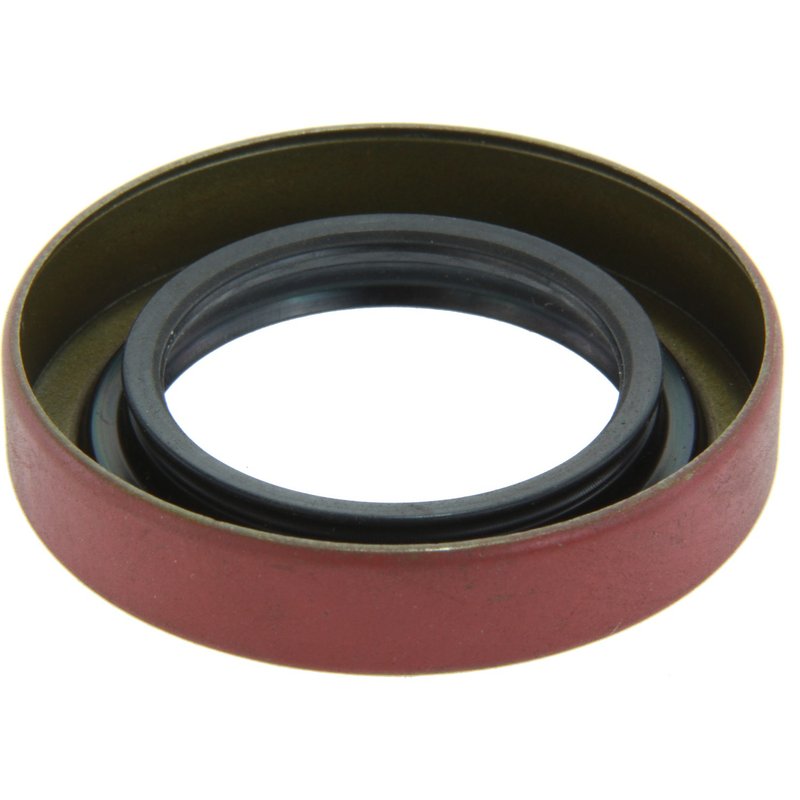

Centric 417.67020 Drive Axle Shaft Seal - Rear or Rear Inner

Centric Rear Axle Shaft Seal for Ram 3500

Centric Premium Axle Shaft, Hub & Wheel Seals part number 417.67020 is a drive axle shaft seal built to help retain grease or oil at the axle while keeping contaminants out. It is sized for heavy-duty rear applications on Ram 3500 and Dodge Ram 3500 models with dual rear wheels.

Key Features

• Inside diameter: 2.854 in. / 72.49 mm
• Width: 0.740 in. / 18.800 mm
• Outside diameter: 4.246 in. / 107.85 mm
• Helps retain lubricants and separate fluids while excluding dirt and debris
• Part number 417.67020 for axle shaft seal replacement
• Centric Premium Axle Shaft, Hub & Wheel Seals product line for sealing applications

Detailed Description

Centric 417.67020 is a premium grease and oil seal for driveline and axle service. Its dimensions are specified for a precise sealing interface: 2.854-inch inside diameter, 0.740-inch width, and 4.246-inch outside diameter. In rear axle service, that fitment detail matters because the seal must maintain lubricant control while helping block road grit, moisture, and other contaminants.

This part is listed for 2003-2005 Dodge Ram 3500 rear inner, 2007-2010 Dodge Ram 3500 rear inner, and 2011-2018 Ram 3500 rear inner and rear applications with heavy duty dual rear wheels. If you are searching for a rear axle shaft seal for Ram 3500 dual rear wheel trucks, part number 417.67020 is the direct reference to use.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Gear oil or grease seepage at the rear axle shaft area
• Contamination entering the axle seal surface
• Lubricant loss that can affect bearing and axle component protection
• Seal wear during rear inner axle service on Ram 3500 and Dodge Ram 3500 trucks
• Service replacement for a damaged or leaking drive axle shaft seal

Installation Notes and Tips

Verify the seal dimensions and axle position before installation. Clean the sealing bore and shaft surface thoroughly, and inspect for scoring, corrosion, or wear that could affect sealing performance. Confirm the vehicle is a heavy duty dual rear wheel application before ordering, since the listed fitment is specific to those configurations.

Quality Assurance

Centric’s Premium Axle Shaft, Hub & Wheel Seals line is focused on sealing applications that retain lubricants and help exclude contaminants in driveline service. Part number 417.67020 is built around published dimensional specifications and vehicle-specific fitment data for Ram 3500 and Dodge Ram 3500 rear axle applications.
