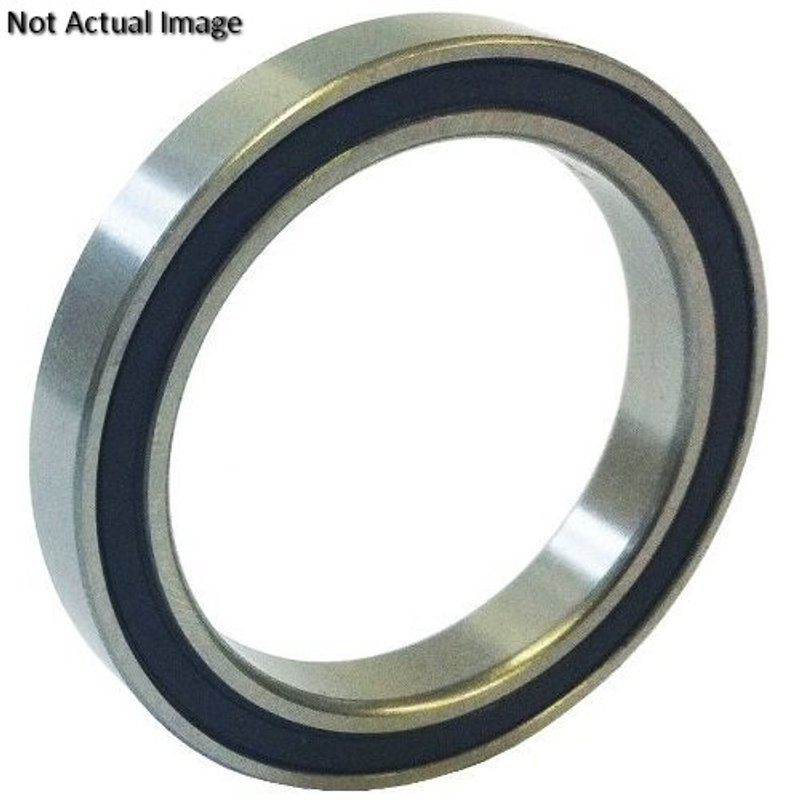

Centric 417.91000 Drive Axle Shaft Seal - Front Inner, Front Outer or Rear Inner

Centric Premium Drive Axle Shaft Seal

Centric 417.91000 is a premium drive axle shaft seal for rear inner and front outer applications across a wide range of import vehicles. It helps retain grease or oil at the bearing and axle interface while keeping dirt, moisture, and other contaminants out.

Key Features

• Inside diameter: 52.00 mm (2.047 in.)
• Outside diameter: 72.00 mm (2.835 in.)
• Width: 8.00 mm (0.315 in.)
• Supports sealing of lubricants while separating contaminants and dissimilar fluids
• Centric Premium Axle Shaft, Hub & Wheel Seals line for driveline sealing service
• Part number 417.91000 for axle shaft seal replacement lookup

Detailed Description

Built for driveline and axle sealing service, Centric 417.91000 is specified for applications such as Isuzu Trooper rear inner, Isuzu VehiCROSS rear inner, Acura SLX rear inner, and Mitsubishi Eclipse front outer. It is also listed for Hyundai Sonata, Plymouth Laser, Dodge Colt, Mitsubishi Galant, and Subaru Standard applications where the axle seal location matches the vehicle’s original service requirement. The Centric Premium Axle Shaft, Hub & Wheel Seals product line focuses on retaining lubricant at the bearing surface while helping block contamination that can shorten seal and bearing life.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Gear oil or grease seepage at the axle shaft seal area
• Contamination entering the hub or bearing sealing surface
• Noise or wear related to lubricant loss at the axle end
• Service replacement for worn rear inner or front outer seals
• Seal deterioration from age, heat, and road exposure

Installation Notes and Tips

Verify the seal dimensions, axle position, and vehicle build date before installation. Confirm whether your application uses rear inner, front outer, or front inner placement, since the listed fitment includes all three positions across different vehicles. Inspect the axle shaft, hub bore, and sealing surface for scoring or corrosion before pressing in the new seal. Clean the mating surfaces thoroughly and install the seal squarely to avoid distortion. For fitment examples, this part fits 1988-2002 Isuzu Trooper, rear inner; 1999-2001 Isuzu VehiCROSS, rear inner; 1996-1999 Acura SLX, rear inner; and 1990-1994 Mitsubishi Eclipse, front outer.

Quality Assurance

Centric’s Premium Axle Shaft, Hub & Wheel Seals line is built for driveline sealing service with attention to dimensional accuracy and contamination control. Part number 417.91000 is cataloged for 83 vehicle applications spanning 1983-2002, including Isuzu, Acura, Mitsubishi, Hyundai, Plymouth, Dodge, and Subaru models.
