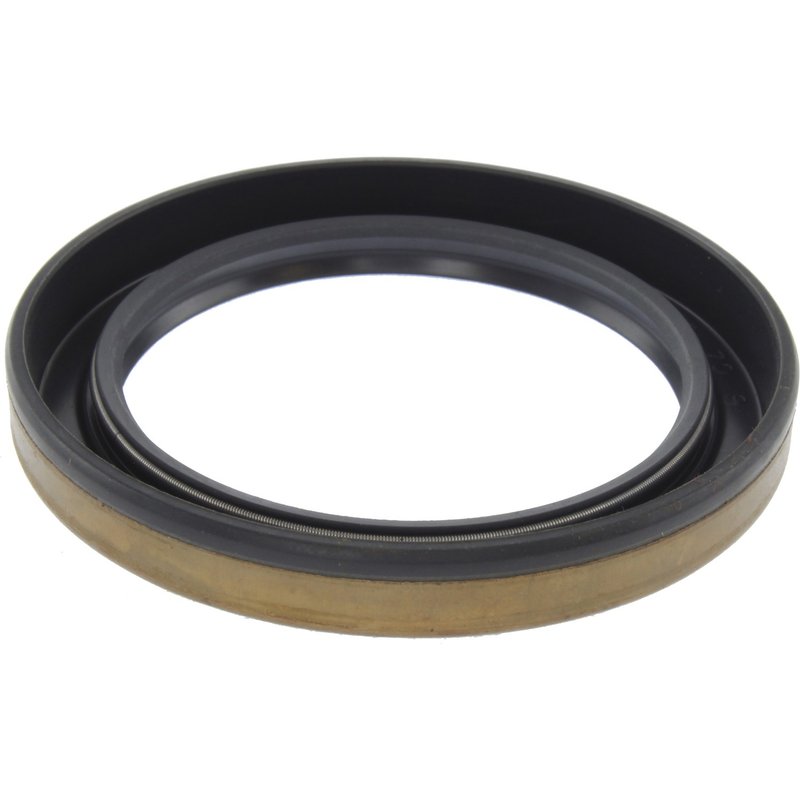

Centric 417.91002 Drive Axle Shaft Seal - Front Inner, Front Outer or Rear Inner

Centric Drive Axle Shaft Seal for Select Kia and Mazda

Centric Premium Axle Shaft, Hub & Wheel Seals part number 417.91002 is a drive axle shaft seal built to help retain grease or oil at the bearing area while keeping contaminants out. It is a direct-fit style sealing component for select Kia Sorento, Kia Sedona, and Mazda B-series applications with rear inner or front inner placement.

Key Features

• Inside diameter: 52.00 mm (2.047 in.)
• Outside diameter: 70.00 mm (2.756 in.)
• Width: 8.00 mm (0.315 in.)
• Helps separate lubricants from dirt, moisture, and other contaminants
• Supports bearing protection in axle, hub, and wheel sealing applications
• Centric Premium Axle Shaft, Hub & Wheel Seals product line

Detailed Product Overview

Centric 417.91002 is engineered as a grease/oil seal for driveline and axle sealing service. The listed dimensions make it important to verify the seal bore and shaft dimensions before installation. This seal is used in rear inner applications on 2003-2009 Kia Sorento and 2002-2005 Kia Sedona, and in front inner applications on 1986-1987 Mazda B2000, 1990-1993 Mazda B2200, and 1990-1993 Mazda B2600. For buyers searching for a Kia Sorento rear inner axle shaft seal or a Mazda B2600 front inner drive axle shaft seal, 417.91002 provides the specified fitment reference.

The Centric Premium Axle Shaft, Hub & Wheel Seals line focuses on sealing components that retain lubricants and help isolate dissimilar fluids or gases where required. This makes part number 417.91002 a practical choice when servicing axle-end sealing points on the listed Kia and Mazda vehicles.

Vehicle Fitment

• Fits 2003-2009 Kia Sorento, rear inner.
• Fits 2002-2005 Kia Sedona, rear inner.
• Fits 1990-1993 Mazda B2200, front inner.
• Fits 1990-1993 Mazda B2600, front inner.
• Fits 1986-1987 Mazda B2000, front inner.

Common Issues This Seal May Address

• Gear oil or grease leakage at the axle shaft sealing point
• Contamination entering the bearing area
• Moisture intrusion around the hub or axle interface
• Wear-related sealing loss on the rear inner or front inner location
• Service replacement for a damaged or hardened axle shaft seal

Installation Notes and Tips

Confirm the inside diameter, outside diameter, and width against the original seal before installation. Clean the seal bore and shaft surface thoroughly, and inspect the mating surfaces for scoring or corrosion that could affect sealing performance. Use the correct position for the vehicle application: rear inner on Kia Sorento and Kia Sedona, front inner on Mazda B2000, B2200, and B2600. Part number 417.91002 should be matched to the exact axle location listed in the fitment data.

Quality Assurance

Centric manufactures sealing components for bearing protection and lubricant retention in driveline service. This part is identified as Centric Premium Axle Shaft, Hub & Wheel Seals 417.91002 and is specified for the listed Kia and Mazda applications.
