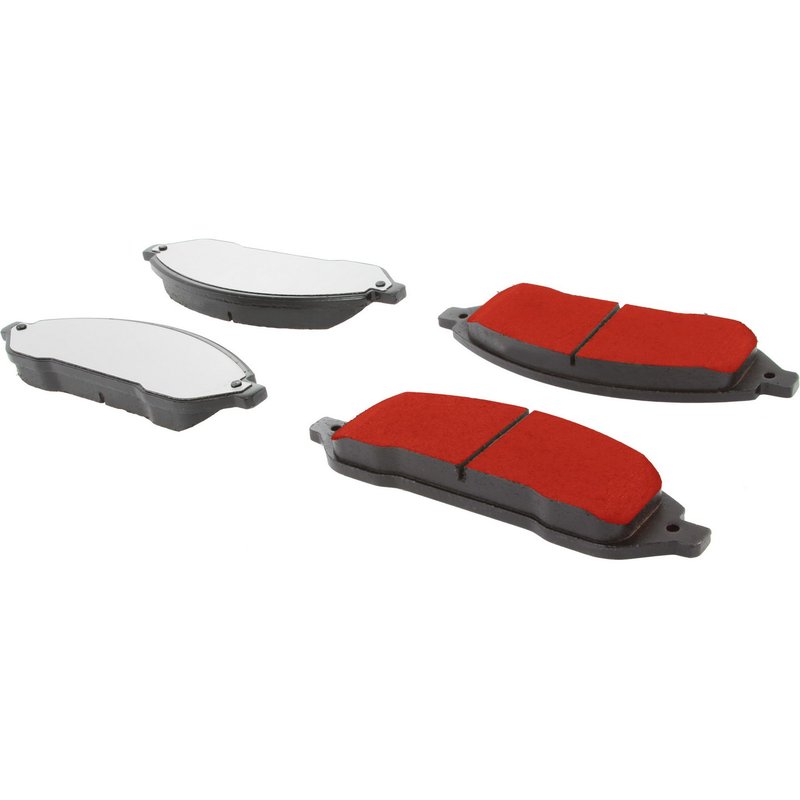

Centric 500.10220 Disc Brake Pad Set - Front
Centric PQ PRO Front Brake Pads for Freestar
Centric PQ PRO Disc Brake Pad Set 500.10220 is a front brake pad solution for 2004-2007 Ford Freestar applications. It uses a ceramic friction material with integrally molded construction, plus included shims and mounting hardware for a cleaner service fit.
Key Features
- Fits 2004-2007 Ford Freestar, front
- Ceramic friction material for consistent street use
- Integrally molded friction attachment
- Pad shims included for noise control
- Mounting hardware included
- Opti-Check Early Warning System for visible pad life monitoring
- Positive molding process used in OE-style manufacturing
- Part number: 500.10220
Product Details
The Centric PQ PRO Disc Brake Pad Sets line focuses on professional-grade brake service with materials and fabrication methods aimed at stable braking response, reduced noise, and better heat management. For Ford Freestar front brake service, part number 500.10220 combines ceramic friction material with a molded attachment design and OE-style production methods to support predictable pedal feel and even wear. This Centric PQ PRO brake pad set is a direct fit for 2004, 2005, 2006, and 2007 Ford Freestar front brake applications.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Brake Service Issues
- Brake fade during repeated stops
- Weak initial braking response
- Brake noise from worn or uneven pads
- High-temperature braking performance loss
- Visible pad wear that calls for replacement
Installation Notes
Verify front axle fitment before installation on your Ford Freestar. Inspect rotors, calipers, and slide hardware for wear or damage before fitting the new pads. Clean the caliper bracket contact points, install the supplied shims and hardware, and bed the pads according to standard brake service procedure.
Quality Assurance
Centric builds the PQ PRO line with OE-style positive molding methods and includes the Opti-Check Early Warning System for service-life visibility. Part number 500.10220 is backed by a one-year Centric Assured Roadside Assistance Guarantee.
| Brand | Centric |
|---|---|
| Part Number | 500.10220 |
| Position | Centric PQ PRO Disc Brake Pad Sets, Front |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Ceramic |
| Hardware Kit Number [cntrc] | 117.68001 |
| Inner Pad Height | 2.213 |
| Inner Pad Height | 56.200 |
| Inner Pad Overall Thickness | 0.701 |
| Inner Pad Overall Thickness | 17.800 |
| Inner Pad Width | 6.980 |
| Inner Pad Width | 177.300 |
| Mounting Hardware Included | Yes |
| Outer Pad Height | 2.213 |
| Outer Pad Height | 56.200 |
| Outer Pad Overall Thickness | 0.701 |
| Outer Pad Overall Thickness | 17.800 |
| Outer Pad Width | 6.980 |
| Outer Pad Width | 177.300 |
| Pad Quantity | 4 |
| Pad Shims Included | Yes |
| Pad Wear Sensor Included | No |
| Prepared For Pad Wear Sensor | No |
| Weight [cntrc] kgs | 1.93 |
| Weight [cntrc] lbs | 4.25 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Ford | Freestar | Front | Centric PQ PRO Disc Brake Pad Sets |
| 2006 | Ford | Freestar | Front | Centric PQ PRO Disc Brake Pad Sets |
| 2005 | Ford | Freestar | Front | Centric PQ PRO Disc Brake Pad Sets |
| 2004 | Ford | Freestar | Front | Centric PQ PRO Disc Brake Pad Sets |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
