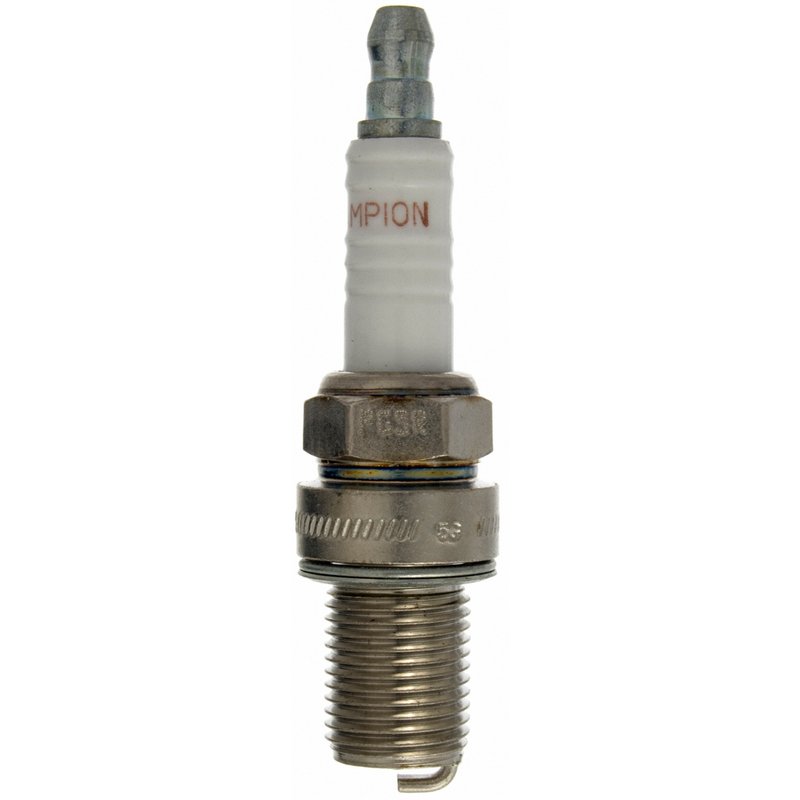

Champion 686 Spark Plug

Champion Racing 686 Spark Plug Overview

Champion Racing 686 is a performance spark plug built for engine builders, weekend racers, and street performance setups that need consistent ignition under demanding conditions. It uses a fine wire J-gap ground electrode, nickel center and ground electrode materials, and a non-removable nut terminal for a straightforward secondary ignition upgrade.

Compatible With performance applications that call for Champion Racing Plugs C57, this plug is part of the Champion Racing line used in motorsport-focused builds. The 0.025-inch pre-gap, flat seat, 0.75-inch reach, and 14 mm thread diameter make the Champion 686 a technical match for engines specified around these dimensions.

Key Features

• Champion Racing part number 686
• Fine Wire J Gap ground electrode tip design
• Nickel center electrode tip material
• Nickel ground electrode core material with nickel copper alloy ground electrode material
• 0.025-inch pre-gap for specified ignition setups
• Flat seat design with 0.75-inch reach
• 14 mm thread diameter and 0.625-inch hex size
• Non-removable nut terminal and non-resistor construction
• Manufacturer heat range 57
• Plug type C57

Detailed Description

Champion Racing 686 spark plugs are engineered for performance-oriented ignition systems where plug geometry, heat range, and electrode design matter. The fine wire J-gap helps concentrate spark energy at the firing point, while the nickel-based electrode construction supports stable operation in engines tuned for racing or spirited street use. As part of the Champion Racing product line, this plug is aimed at builders who want a race-proven style plug with straightforward specifications for secondary ignition service.

This part cross-references Autolite 4062 for the same application. Search terms such as Champion 686 spark plug, Champion Racing 686, and C57 racing plug are commonly used by buyers looking for a performance spark plug with a 14 mm thread and flat seat design.

What It Is Used For

• Replacing worn spark plugs in performance ignition systems
• Addressing misfire caused by incorrect plug gap or electrode wear
• Supporting stable spark delivery in tuned engines
• Restoring ignition consistency in race-oriented or street-performance builds
• Matching engines specified for a Champion Racing C57-style plug

Installation Notes and Tips

Verify thread diameter, reach, seat type, heat range, and terminal style before installation. Confirm the specified gap against the engine builder’s requirements, since this plug is pre-gapped at 0.025 inch. Use proper spark plug tools to avoid damaging the fine wire electrode or the 14 mm threads. For fitment-based searches, this part is commonly referenced with vehicle keywords such as make/model applications, but actual vehicle compatibility should be confirmed by engine specification rather than assumption.

Quality Assurance

Champion Racing plugs are built for motorsport and performance use, with specifications intended to meet the demands of engine builders, weekend racers, and street performance enthusiasts. The Champion Racing 686 follows a defined heat range, electrode design, and terminal configuration for consistent secondary ignition service.
