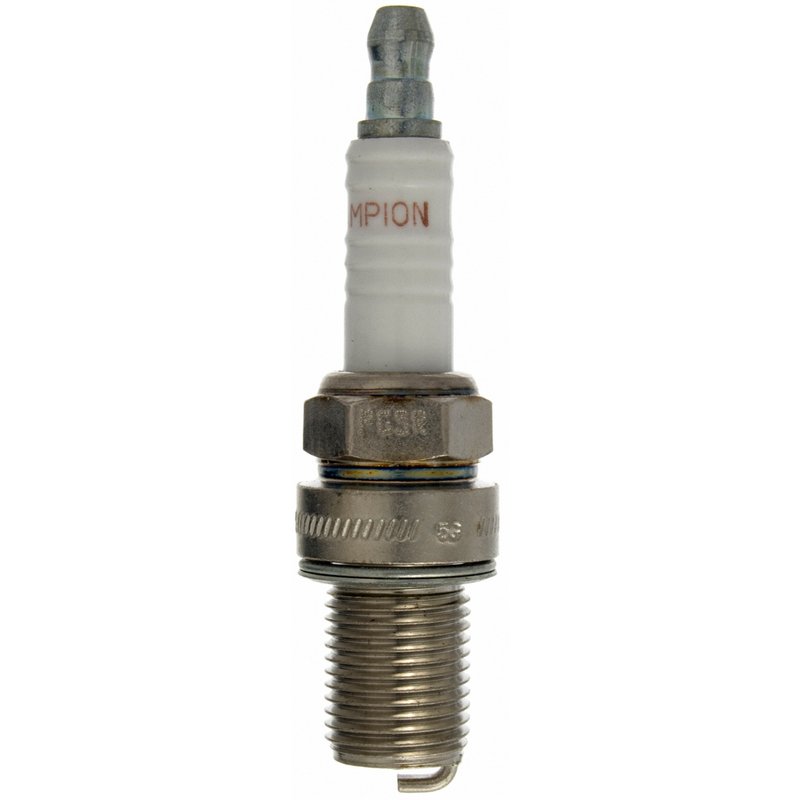

Champion 693 Spark Plug

Champion Racing Spark Plug 693 Overview

The Champion Racing 693 spark plug is engineered for performance applications requiring precise ignition control. Designed with a fine wire ground electrode and nickel core materials, this spark plug supports consistent combustion in racing and high-performance engines.

• Fine wire ground electrode tip design for improved spark efficiency
• Nickel center and ground electrode core materials for durability
• Non-removable nut electrical terminal type for secure connection
• Pre-gap size of 0.025 inches (0.65 mm) optimized for racing conditions
• Flat seat type with 0.75-inch reach and 14 mm thread diameter
• Heat range 55 suitable for high-performance ignition systems
• Hex size 0.625 inches (15.88 mm) for standard installation tools
• Resistor type: none, designed for racing applications

Champion Racing Product Line Details

The Champion Racing line focuses on spark plugs tailored for motorsport and high-performance vehicles. The 693 spark plug is part of this series, offering specifications that meet the demands of racing engines, including optimized heat range and electrode design to maintain ignition reliability under extreme conditions.

Technical Description and Specifications

The Champion Racing 693 spark plug features a single ground electrode with a fine wire J-gap design, which enhances spark exposure and combustion efficiency. Both the center and ground electrodes use nickel core materials, providing a balance of conductivity and wear resistance. The plug’s flat seat and 0.75-inch reach ensure compatibility with many performance engines requiring precise seating and heat dissipation. The non-removable nut terminal type offers a secure electrical connection, reducing the risk of terminal loosening during high-vibration conditions common in racing environments. With a heat range of 55, this plug is suited for engines operating at elevated temperatures, helping to prevent fouling and pre-ignition.

Applications and Problem Solving

• Improves ignition reliability in high-performance and racing engines
• Reduces misfires caused by electrode wear or improper gap
• Helps maintain consistent combustion under high heat conditions
• Addresses spark plug fouling in engines with aggressive tuning
• Supports stable engine performance in vehicles requiring precise ignition timing

Installation Notes and Tips

Ensure the spark plug gap is set to the specified pre-gap size of 0.025 inches (0.65 mm) before installation. Use a 15.88 mm (0.625 inch) hex socket for proper tightening. The flat seat design requires correct torque to avoid sealing issues. Confirm compatibility with your vehicle’s make and model, especially for racing or modified engines. Avoid using spark plugs with resistor types if your ignition system requires non-resistor plugs like this model.

Quality Assurance

Champion Racing spark plugs are manufactured to meet rigorous quality standards for performance and durability. While specific warranty details for part number 693 are not provided, Champion products typically undergo extensive testing to ensure reliability in demanding automotive applications.
