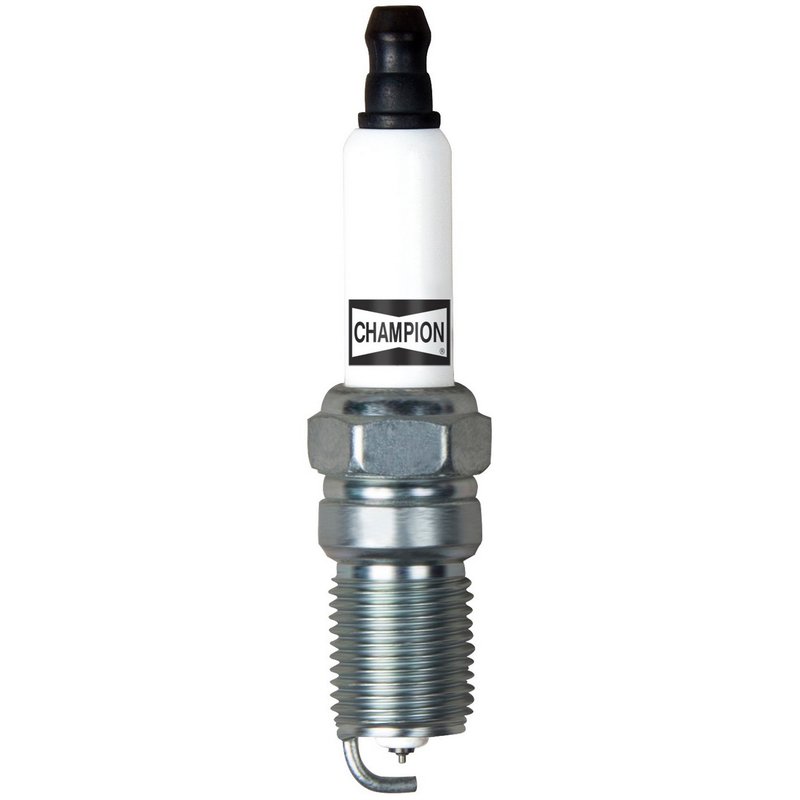

Champion 7940 Spark Plug

Overview of Champion Double Platinum Power Spark Plug 7940

The Champion Double Platinum Power Spark Plug 7940 is engineered for reliable ignition performance in a variety of vehicles including Buick, Chevrolet, Ford, and Mercedes-Benz models. Designed with platinum on both the center and ground electrodes, this spark plug offers consistent spark delivery and durability for secondary ignition systems.

• Double platinum electrodes for enhanced durability and stable spark
• Pre-gapped at 0.050 inches (1.27 mm) for optimal ignition
• Non-removable nut electrical terminal type for secure connection
• Tapered seat type ensuring proper fit and sealing
• Resistor type spark plug to reduce electrical noise interference
• Thread diameter of 14 mm with a reach of 0.689 inches for precise fitment
• Hex size of 0.625 inches (15.88 mm) for standard installation tools

Detailed Product Features and Specifications

The Champion 7940 spark plug features a platinum pad surface on the ground electrode and a platinum tip on the center electrode, which improves wear resistance and maintains a consistent spark gap over time. The plug’s insulator height is 0.06 inches, and it has a manufacturer heat range rating of 14, suitable for a wide range of engine operating conditions. The tapered seat type ensures a tight seal in the combustion chamber, preventing compression loss. Additionally, the spark plug includes a resistor to minimize radio frequency interference, which is important for modern vehicles with sensitive electronics.

Double Platinum Power Brand Line Information

The Double Platinum Power line from Champion is designed to provide enhanced ignition reliability by utilizing platinum on both the center and ground electrodes. This construction extends the service life of the spark plug compared to conventional plugs and supports consistent engine performance. The 7940 part number is part of this line, offering a balance of durability and efficient ignition for compatible vehicles.

Compatible Vehicles and Common Applications

• Buick models such as Century, LeSabre, and Regal
• Chevrolet vehicles including Camaro, Impala, and Silverado
• Ford trucks and SUVs like F-150, Explorer, and Mustang
• Mercedes-Benz models including 260E and 300CE
• Other makes such as Pontiac, Oldsmobile, and GMC with matching specifications

Common Issues Addressed by Champion 7940 Spark Plug

• Engine misfires caused by worn or fouled spark plugs
• Reduced fuel efficiency due to inconsistent ignition
• Difficulty starting the engine in cold or damp conditions
• Rough idling or hesitation during acceleration
• Electrical interference affecting onboard electronics

Installation Notes and Tips

Before installation, verify the spark plug gap is set to the specified 0.050 inches (1.27 mm). Use a torque wrench to tighten the plug to the manufacturer’s recommended torque to avoid damage to the tapered seat or threads. The 0.625 inch hex size allows for standard spark plug sockets. Ensure the ignition system is off and the engine is cool before replacing spark plugs. The non-removable nut terminal type requires compatible ignition wires or boots for proper connection.

Quality Assurance and Warranty

Champion spark plugs are manufactured to meet OEM specifications and undergo rigorous quality control to ensure consistent performance. The Double Platinum Power 7940 spark plug is designed for durability and reliable ignition over extended service intervals. Warranty coverage details should be confirmed with the vehicle manufacturer or authorized Champion distributor.
