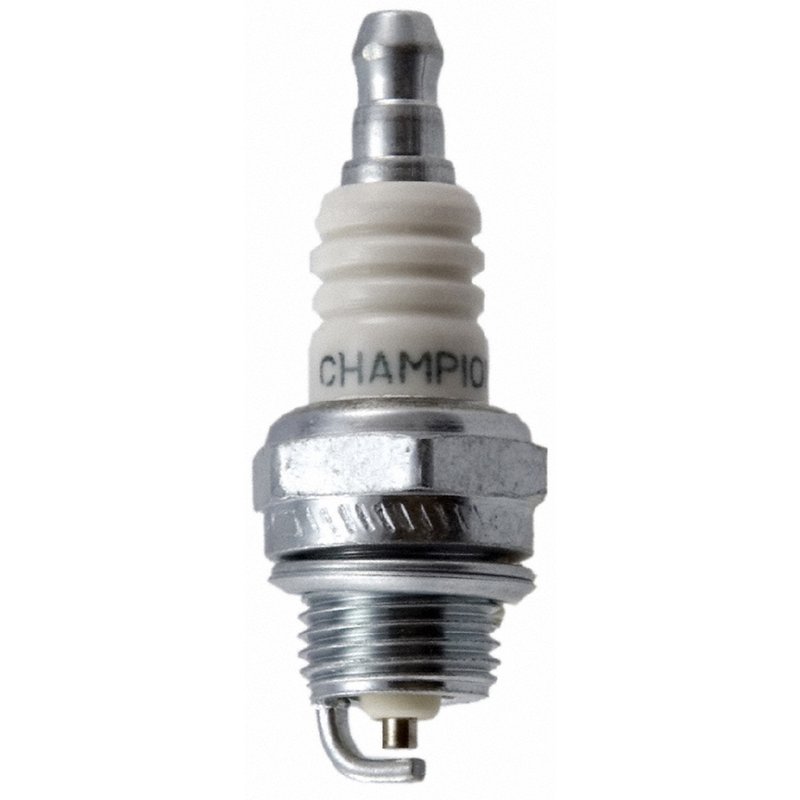

Champion 853-1 Spark Plug

Reliable Ignition with Champion Copper Plus Spark Plug 853-1

The Champion Copper Plus 853-1 spark plug is designed to deliver consistent ignition performance for small engine applications. Engineered with a copper center electrode and nickel ground electrode, this spark plug supports efficient combustion and reliable starts.

• Standard replacement grade spark plug with a copper center electrode for improved conductivity
• J gap ground electrode tip design made of nickel for durability
• Pre-gapped to 0.020 inches (0.50 mm) for optimal ignition timing
• Flat seat type with a 0.375-inch reach and 14 mm thread diameter
• Removable nut electrical terminal for flexible installation
• Hex size of 19 mm (0.748 inches) for standard wrench compatibility
• Washer included to ensure proper sealing
• Manufacturer heat range rating of 7 suitable for various small engine conditions

About the Champion Copper Plus Product Line

The Copper Plus line from Champion focuses on spark plugs that utilize copper core technology to enhance electrical conductivity and heat dissipation. This line is tailored for small engines requiring standard replacement spark plugs that maintain engine efficiency and reliable ignition. The 853-1 model exemplifies these qualities with its copper center electrode and nickel ground electrode, providing a balance of performance and durability.

Technical Details and Specifications

The Champion Copper Plus 853-1 spark plug features a single nickel ground electrode with a J gap tip design, which helps maintain a consistent spark gap and ignition quality. The center electrode is made of copper, known for its excellent thermal and electrical conductivity, which supports efficient combustion. The spark plug comes pre-gapped at 0.020 inches (0.50 mm), reducing the need for adjustment during installation. Its flat seat design and 0.375-inch reach ensure compatibility with a range of small engine cylinder heads. The 14 mm thread diameter and 19 mm hex size allow for straightforward installation using common tools. Additionally, the removable nut electrical terminal provides flexibility for different ignition system configurations.

Applications and Common Issues Addressed

• Restores reliable engine starts in small engines
• Helps reduce misfires caused by worn or damaged spark plugs
• Improves fuel efficiency by ensuring proper ignition timing
• Addresses rough idling and inconsistent engine performance
• Suitable for maintenance and replacement in compatible small engine models

Installation Notes and Tips

Before installation, verify the spark plug gap is set to the recommended 0.020 inches (0.50 mm). Use a 19 mm socket wrench to install the spark plug, ensuring the flat seat properly contacts the cylinder head for a secure seal. The removable nut terminal allows for easy connection to various ignition wires. Avoid overtightening to prevent damage to the threads or cylinder head. Always consult the engine manufacturer’s specifications for torque settings and compatibility.

Quality Assurance and Warranty

Champion Copper Plus spark plugs are manufactured to meet industry standards for ignition components. The 853-1 model undergoes rigorous quality control to ensure consistent performance and durability. While specific warranty details are not provided, Champion products typically adhere to manufacturer guidelines for replacement and support. For best results, use the 853-1 spark plug as a direct replacement in compatible small engine applications.
