OE Quality
60-Day Returns
Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.
Champion

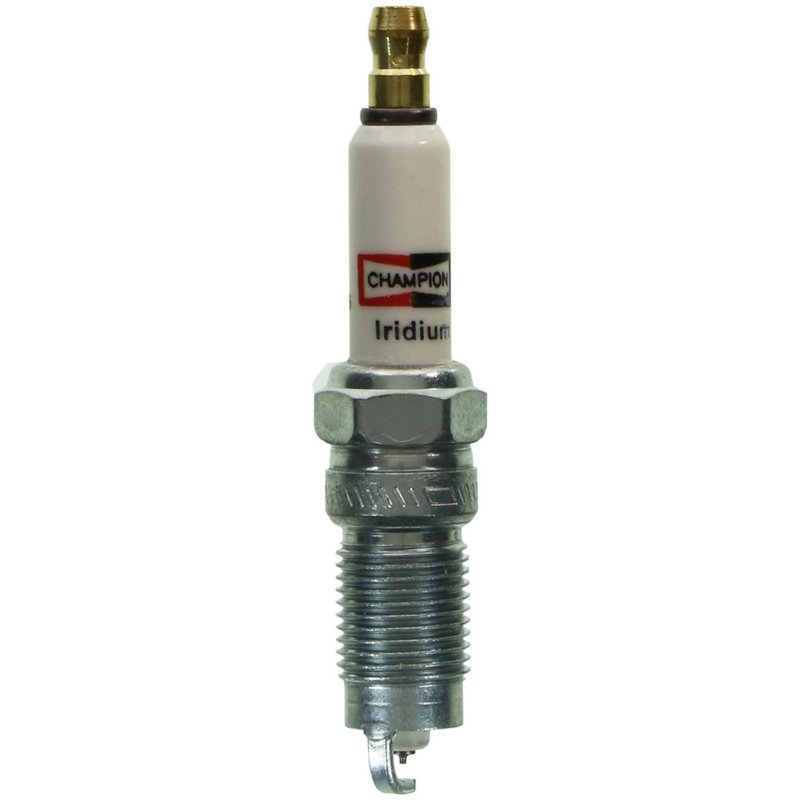

Champion IridiumChampion 9200 Spark Plug
| Brand | Champion 9200 |
|---|---|
| Center Electrode Tip Material | Iridium |
| Classification | Champion Iridium |
| Electrical Terminal Type | Non-Removable Nut |
| Ground Electrode Core Material | Platinum |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | J Gap |
| Hex Size | 0.625 |
| Hex Size | 16.000 |
| Hex Type | Hex |
| Insulator Height | 0.09 |
| Manufacturer Heat Range | 10 |
| Plug Type | RS10ZWYPB5 |
| Pre-Gap Size | 0.054 |
| Pre-Gap Size | 1.4 |
| Reach | 0.826 |
| Resistor Type | Yes |
| Seat Type | Tapered |
| Thread Diameter | 0.551 |
| Thread Diameter | 14.000 |
| Product line | Champion Iridium |
| Fits | Ford, Mazda, Mercury, Land Rover, and Chevrolet · 103 vehicles |
Iridium center electrode. Fine-wire design sharpens spark focus for stronger performance.
Platinum ground electrode. Adds durability to the spark plug’s firing surface.
Tapered seat. Provides a secure, precise sealing surface.
Cross-references Autolite XP5143, Autolite XP5144 and LR000604 for the same application. See all 4.
$18.76Free shipping
In stock · usually ships same day before 1pm CST
Vehicle: not selected
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Fitment not checked
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
$18.76
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Spark Plug options
Champion Iridium Spark Plug 9200
Champion Iridium 9200 is a tapered-seat spark plug built with a fine-wire iridium center electrode and a platinum ground electrode for a focused spark event. It is a direct-fit ignition service part for a wide range of Ford, Mercury, Mazda, Land Rover, and Chevrolet applications, including Ford F-150, Ford Ranger, and Ford Explorer models.
Key Features
- Fine-wire iridium center electrode for sharp spark focus
- Platinum ground electrode core material for durable ignition performance
- J-gap ground electrode design
- Pre-gapped to 0.054 in. / 1.4 mm
- Resistor-type plug for ignition system noise control
- Tapered seat design with 14 mm thread diameter and 0.826 in. reach
- Champion Iridium line construction for modern secondary ignition service
- Part number 9200 for easy catalog matching
Product Details
Champion Iridium 9200 uses iridium at the center electrode and platinum at the ground electrode to deliver a precise spark point and stable ignition characteristics. The non-removable nut terminal, hex design, and tapered seat support standard spark plug service on listed applications. This plug cross-references Autolite XP5143 and XP5144 for the same application. Common fitment includes 2005-2010 Ford Mustang, 2004-2011 Ford Ranger, and 2006-2010 Ford Explorer, along with additional Ford, Mercury, Mazda, Land Rover, and Chevrolet models listed below.
Common Applications
- Fits 2004-2011 Ford Ranger, N/A
- Fits 2006-2010 Ford Explorer, N/A
- Fits 2007-2010 Ford Explorer Sport Trac, N/A
- Fits 2005-2010 Ford Mustang, N/A
- Fits 2006-2010 Mazda B4000, N/A
- Fits 2006-2010 Mercury Mountaineer, N/A
- Fits 2005-2009 Land Rover LR3, N/A
- Fits 2005-2008 Ford F-150, N/A
- Fits 1998-2003 Ford F-150, N/A
- Fits 2004 Ford F-150 Heritage, N/A
- Fits 2003 Ford E-150, N/A
- Fits 2003 Ford E-150 Club Wagon, N/A
- Fits 2003 Ford E-250, N/A
- Fits 1998-2002 Ford E-150 Econoline, N/A
- Fits 1998-2002 Ford E-150 Econoline Club Wagon, N/A
- Fits 1998-2002 Ford E-250 Econoline, N/A
- Fits 1991-2002 Ford Escort, N/A
- Fits 1991-1999 Mercury Tracer, N/A
- Fits 1991-1995 Chevrolet Lumina, N/A
- Fits 1989-1990 Mercury Cougar, N/A
- Fits 1986-1987 Mercury Lynx, N/A
- Fits 1983-1984 Mercury Lynx, N/A
- Fits 1983-1985 Ford Escort, N/A
- Fits 1983 Mercury LN7, N/A
Installation Notes
Verify the plug type number RS10ZWYPB5 and confirm the specified gap before installation. This spark plug uses a 0.054 in. pre-gap on many listed applications, but some fitments in the catalog show different gap notes, so match the vehicle-specific requirement before service. Use the correct torque procedure for the tapered seat design and inspect ignition wires or coil boots during replacement. For Ford F-150, Ford Ranger, and Ford Explorer service, confirm engine-specific application details against the vehicle catalog before installation.
Quality Assurance
Champion Iridium 9200 is built as a secondary ignition service part with iridium and platinum electrode materials selected for consistent spark delivery and wear resistance. The Champion Iridium product line focuses on fine-wire electrode construction for precise ignition performance in listed applications.
This part fits 103 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Ford | Ranger | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2010 | Ford | Explorer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2010 | Ford | Explorer Sport Trac | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2010 | Ford | Mustang | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2010 | Ford | Ranger | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2010 | Mazda | B4000 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2010 | Mercury | Mountaineer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2009 | Ford | Explorer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2009 | Ford | Explorer Sport Trac | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2009 | Ford | Mustang | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2009 | Ford | Ranger | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2009 | Land Rover | LR3 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2009 | Mazda | B4000 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2009 | Mercury | Mountaineer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2008 | Ford | Explorer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2008 | Ford | Explorer Sport Trac | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2008 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2008 | Ford | Mustang | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2008 | Ford | Ranger | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2008 | Land Rover | LR3 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2008 | Mazda | B4000 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2008 | Mercury | Mountaineer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2007 | Ford | Explorer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2007 | Ford | Explorer Sport Trac | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2007 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2007 | Ford | Mustang | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2007 | Ford | Ranger | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2007 | Land Rover | LR3 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2007 | Mazda | B4000 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2007 | Mercury | Mountaineer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2006 | Ford | Explorer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2006 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2006 | Ford | Mustang | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2006 | Ford | Ranger | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2006 | Land Rover | LR3 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2006 | Mazda | B4000 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2006 | Mercury | Mountaineer | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2005 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2005 | Ford | Mustang | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2005 | Ford | Ranger | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2005 | Land Rover | LR3 | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2004 | Ford | F-150 Heritage | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2004 | Ford | Ranger | 4.0L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2003 | Ford | E-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2003 | Ford | E-150 Club Wagon | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2003 | Ford | E-250 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2003 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2002 | Ford | E-150 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2002 | Ford | E-150 Econoline Club Wagon | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2002 | Ford | E-250 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2002 | Ford | Escort | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2002 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2001 | Ford | E-150 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2001 | Ford | E-150 Econoline Club Wagon | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2001 | Ford | E-250 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2001 | Ford | Escort | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2001 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2000 | Ford | E-150 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2000 | Ford | E-150 Econoline Club Wagon | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2000 | Ford | E-250 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2000 | Ford | Escort | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 2000 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1999 | Ford | E-150 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1999 | Ford | E-150 Econoline Club Wagon | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1999 | Ford | E-250 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1999 | Ford | Escort | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1999 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1999 | Mercury | Tracer | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1998 | Ford | E-150 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1998 | Ford | E-150 Econoline Club Wagon | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1998 | Ford | E-250 Econoline | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1998 | Ford | Escort | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1998 | Ford | F-150 | 4.2L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1998 | Mercury | Tracer | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1997 | Ford | Escort | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1997 | Mercury | Tracer | 2.0L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1996 | Ford | Escort | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1996 | Mercury | Tracer | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1995 | Chevrolet | Lumina | 3.4L | V6 | N/A | Gap 0.045 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1995 | Ford | Escort | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1995 | Mercury | Tracer | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1994 | Chevrolet | Lumina | 3.4L | V6 | N/A | Gap 0.045 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1994 | Ford | Escort | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1994 | Mercury | Tracer | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1993 | Chevrolet | Lumina | 3.4L | V6 | N/A | Gap 0.045 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1993 | Ford | Escort | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1993 | Mercury | Tracer | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1992 | Chevrolet | Lumina | 3.4L | V6 | N/A | Gap 0.045 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1992 | Ford | Escort | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1992 | Mercury | Tracer | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1991 | Chevrolet | Lumina | 3.4L | V6 | N/A | Gap 0.045 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1991 | Ford | Escort | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1991 | Mercury | Tracer | 1.9L | L4 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1990 | Mercury | Cougar | 3.8L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1989 | Mercury | Cougar | 3.8L | V6 | N/A | Gap 0.054 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1987 | Mercury | Lynx | 1.9L | L4 | N/A | Gap 0.044 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1986 | Mercury | Lynx | 1.9L | L4 | N/A | Gap 0.044 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1985 | Ford | Escort | 1.6L | L4 | N/A | Gap 0.044 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1984 | Ford | Escort | 1.6L | L4 | N/A | Gap 0.044 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1984 | Mercury | Lynx | 1.6L | L4 | N/A | Gap 0.044 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1983 | Ford | Escort | 1.6L | L4 | N/A | Gap 0.044 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1983 | Mercury | LN7 | 1.6L | L4 | N/A | Gap 0.044 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| 1983 | Mercury | Lynx | 1.6L | L4 | N/A | Gap 0.044 (in); Plug Type Number RS10ZWYPB5; Champion Iridium |
| No rows match your filter. | ||||||
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Autolite — XP5143Autolite — XP5144LR000604RS10ZWYPB5
