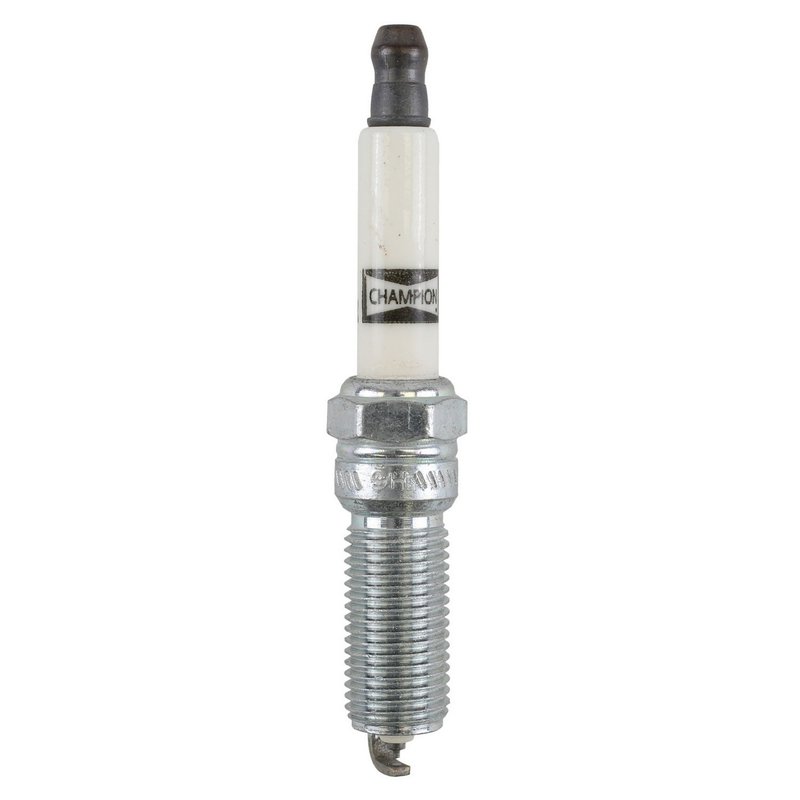

Champion 9665 Spark Plug

Champion Iridium Spark Plug 9665 Overview

The Champion Iridium 9665 spark plug is engineered for reliable ignition performance in select Buick, Chevrolet, and GMC vehicles. Designed with advanced materials and precise specifications, this spark plug supports efficient combustion and consistent engine operation.

• Iridium center electrode tip for enhanced durability
• Platinum ground electrode core material with J gap design
• Non-removable nut electrical terminal type
• Pre-gap size of 0.026 inches (0.65 mm) for optimal spark
• Tapered seat type with a thread diameter of 0.470 inches (12 mm)
• Resistor type spark plug to reduce electrical interference
• Hex size of 0.546 inches (14 mm) for installation
• Manufacturer heat range rating of 4

Champion Iridium Product Line Details

The Champion Iridium line focuses on delivering spark plugs with iridium center electrodes, known for their high melting point and wear resistance. This product line combines iridium with platinum ground electrodes to provide a balance of longevity and stable ignition. The 9665 spark plug benefits from this technology, offering consistent performance for secondary ignition systems in compatible vehicles.

Technical Description and Features

The Champion Iridium 9665 spark plug features a single ground electrode with a J gap design, which helps maintain a stable spark and reduces electrode wear. The center electrode tip is made of iridium, a material chosen for its strength and ability to withstand high temperatures. The ground electrode core is platinum, enhancing durability and corrosion resistance. The spark plug includes a non-removable nut electrical terminal and a resistor to minimize radio frequency interference. Its tapered seat and precise thread diameter ensure a secure fit in the combustion chamber. The pre-gap size is factory set at 0.026 inches (0.65 mm), supporting optimal ignition timing and fuel efficiency.

Compatible Vehicles and Applications

• Buick Cascada
• Chevrolet Cruze, Equinox, Malibu, Spark, Volt
• GMC Terrain, Acadia, Canyon, Sierra (if applicable)
• Chevrolet Encore, Encore GX, Trailblazer, Trax

This spark plug is designed specifically for secondary ignition systems in these models, ensuring proper fitment and performance.

Common Issues Addressed by Champion Iridium 9665

• Misfires caused by worn or damaged spark plugs
• Reduced fuel efficiency due to inconsistent ignition
• Difficulty starting the engine in cold or damp conditions
• Engine hesitation or rough idling
• Electrical interference affecting onboard electronics

Installation Notes and Tips

Before installation, verify the spark plug gap is set to the specified 0.026 inches (0.65 mm). Use a torque wrench to tighten the spark plug to the manufacturer’s recommended torque specification to avoid damage to the tapered seat. The 14 mm hex size allows for standard spark plug sockets. Ensure the ignition system is off and the engine is cool before replacing spark plugs. Proper installation helps maintain engine performance and prevents misfires.

Quality Assurance and Warranty

Champion spark plugs are manufactured to meet strict quality standards for durability and performance. The Iridium 9665 spark plug includes a resistor to reduce electrical noise and is built with premium materials such as iridium and platinum for extended service life. While specific warranty details may vary, Champion products typically come with a limited warranty against manufacturing defects. Consult product documentation or authorized sources for exact warranty terms.
