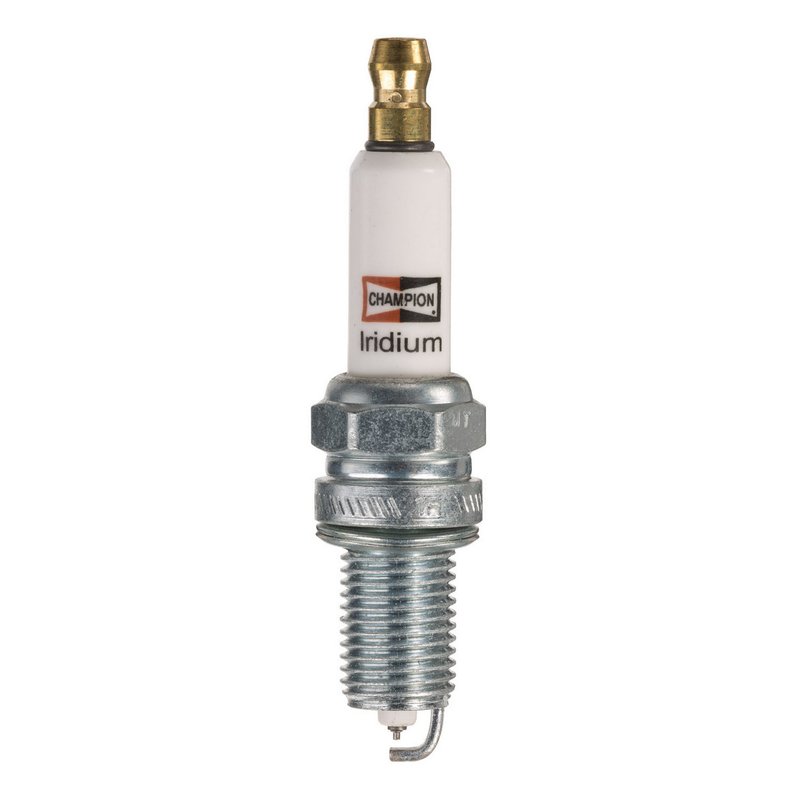

Champion 9700 Spark Plug

Champion Iridium Spark Plug 9700 Overview

The Champion Iridium 9700 spark plug is engineered for precision ignition performance in select BMW, Chevrolet, Ferrari, Fiat, and Lamborghini models. Designed with advanced materials and a specific electrode configuration, this spark plug supports reliable combustion and efficient engine operation.

• Iridium center electrode tip for enhanced durability
• Platinum ground electrode pad surface with J gap design
• Non-removable nut electrical terminal type
• Flat seat type with 0.75 inch reach
• Resistor type spark plug to reduce electrical noise
• Manufacturer heat range rating of 7
• Thread diameter of 0.472 inches (12 mm) and hex size of 0.625 inches (15.88 mm)

Champion Iridium Product Line Details

The Champion Iridium line focuses on delivering spark plugs with iridium center electrodes, known for their fine wire design and high melting point. This results in improved ignition efficiency and longer service life compared to conventional plugs. The 9700 model incorporates these features along with a platinum ground electrode, combining durability with consistent spark performance for high-performance and luxury vehicles.

Technical Description and Specifications

The Champion Iridium 9700 spark plug features a J gap ground electrode tip design, which optimizes spark exposure and combustion efficiency. The center electrode is made from iridium, a material chosen for its strength and resistance to wear. The ground electrode core and pad surface are platinum, enhancing longevity and corrosion resistance. The plug includes a non-removable nut electrical terminal and a flat seat type to ensure proper sealing and fitment. With a pre-gap size of 0.033 inches (0.85 mm) and a heat range of 7, this spark plug is suited for engines requiring moderate heat dissipation. The thread diameter measures 0.472 inches (12 mm), and the plug has a reach of 0.75 inches, making it compatible with specific engine designs.

Compatible Vehicles and Applications

• BMW models including the M3, Z3, and Z4
• Chevrolet Spark
• Ferrari Testarossa and Mondial 3.2
• Fiat 500
• Lamborghini Murcielago

This spark plug is designed for secondary ignition systems in these vehicles, supporting efficient combustion and engine responsiveness.

Common Issues Addressed by Champion Iridium 9700

• Misfiring or inconsistent engine ignition
• Reduced fuel efficiency due to incomplete combustion
• Difficulty starting the engine in cold conditions
• Engine hesitation or rough idling
• Premature electrode wear in high-performance engines

Installation Notes and Tips

Ensure the spark plug gap is set to the specified pre-gap size of 0.033 inches (0.85 mm) before installation. Use a torque wrench to tighten the plug to the manufacturer’s recommended specifications to avoid damage to the threads or improper sealing. The flat seat design requires proper seating to prevent compression leaks. It is advisable to inspect the ignition system components for wear or damage during replacement to maintain optimal performance.

Quality Assurance and Warranty

Champion Iridium spark plugs are manufactured to meet OEM standards for fit, form, and function. The use of iridium and platinum materials ensures durability and consistent performance over time. While specific warranty details may vary, Champion typically offers coverage against manufacturing defects. Refer to the product packaging or manufacturer documentation for exact warranty terms.
